Code 23 - Mixture Control (M/C) Solenoid CKT

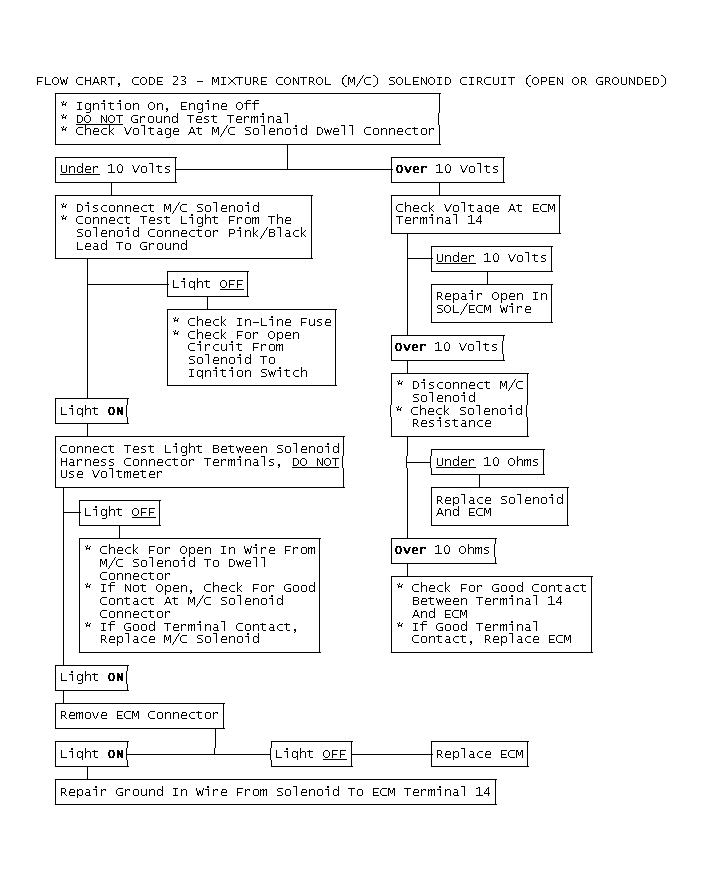

Fig 1: Flow Chart, Code 23 - Mixture Control (M/C) Solenoid Circuit (Open or Grounded)

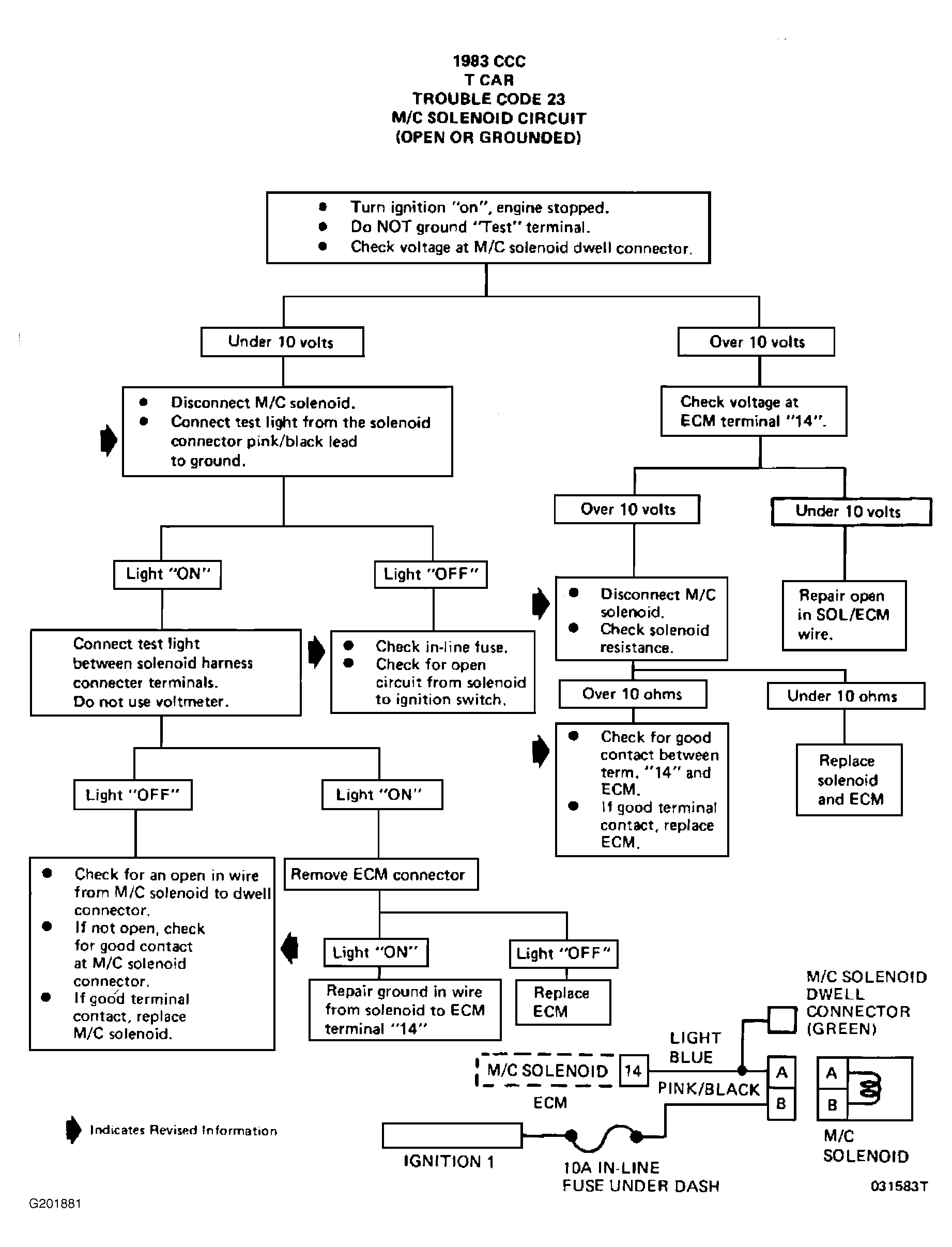

Fig 2: Flow Chart, Code 23 - Mixture Control (M/C) Solenoid Circuit (Open or Grounded)
