Code 45 - Rich Exhaust Indication

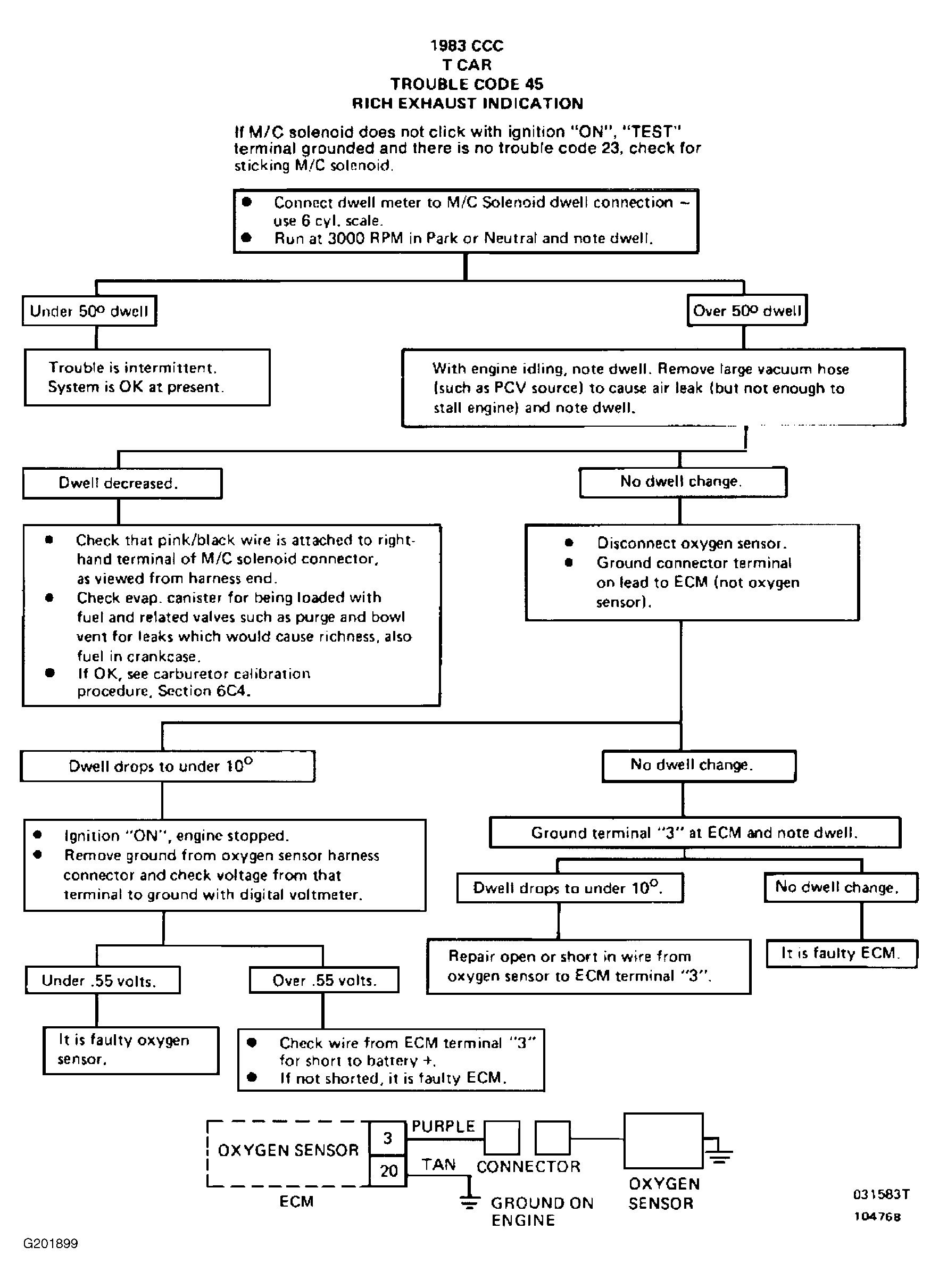

Fig 1: Flow Chart, Code 45 - Rich Exhaust Indication

NOTE: If M/C solenoid does not click with ignition on, test terminal grounded and there is no trouble code 23, check for sticking M/C solenoid.

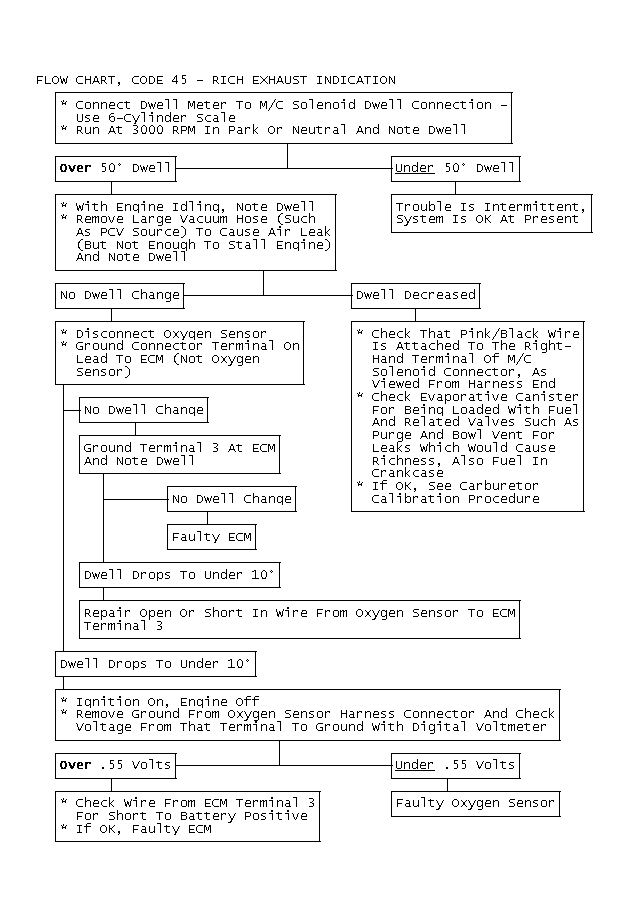

Fig 2: Flow Chart, Code 45 - Rich Exhaust Indication
