Code 12 - No Reference Signal

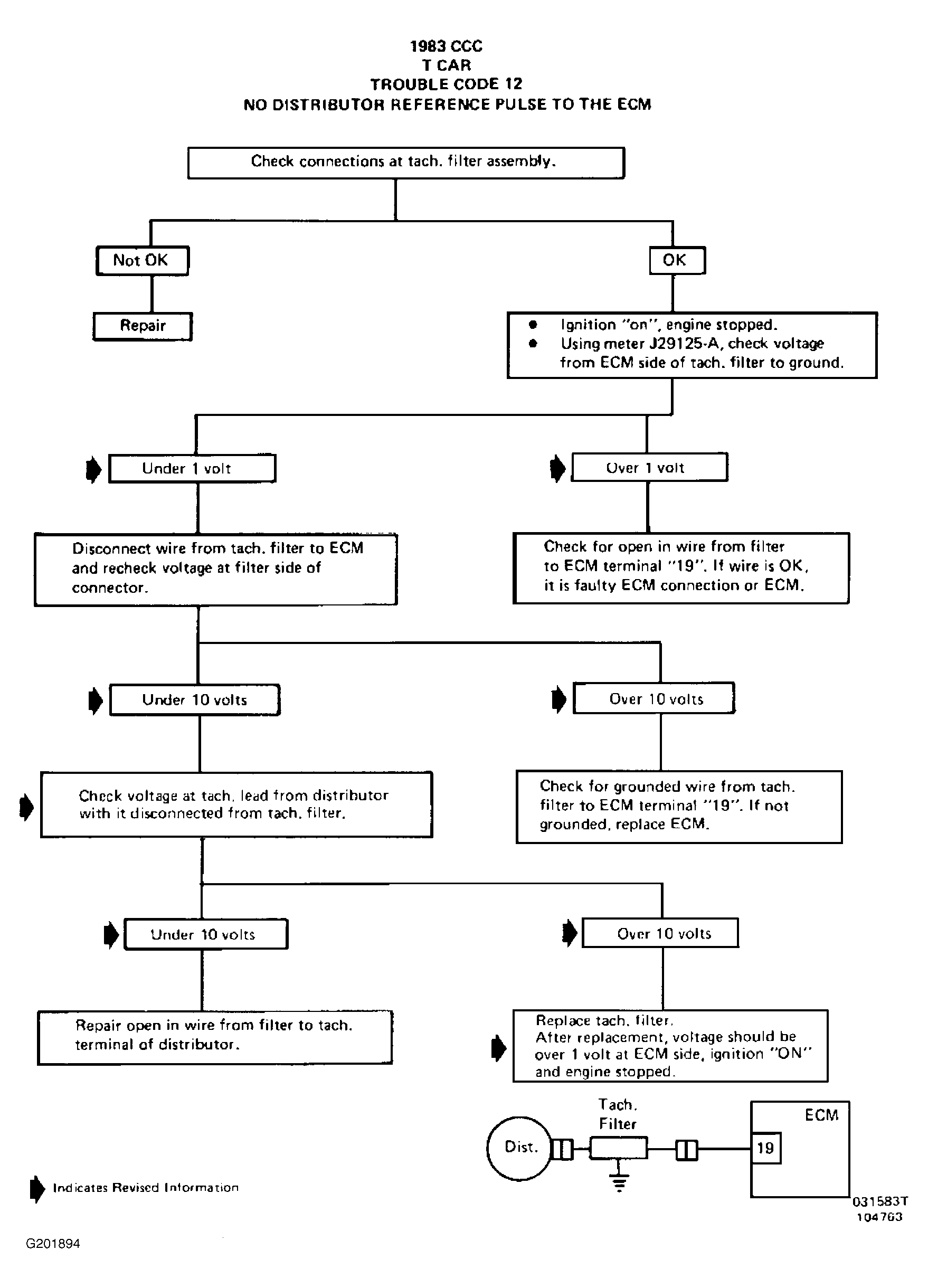

Fig 1: Flow Chart, Code 12 - No Distributor Reference Pulse To ECM

G201894

Fig 2: Flow Chart, Code 12 - No Distributor Reference Pulse To ECM

GB0045534
