Code 21 - Throttle Position Sensor (TPS) Sensor CKT

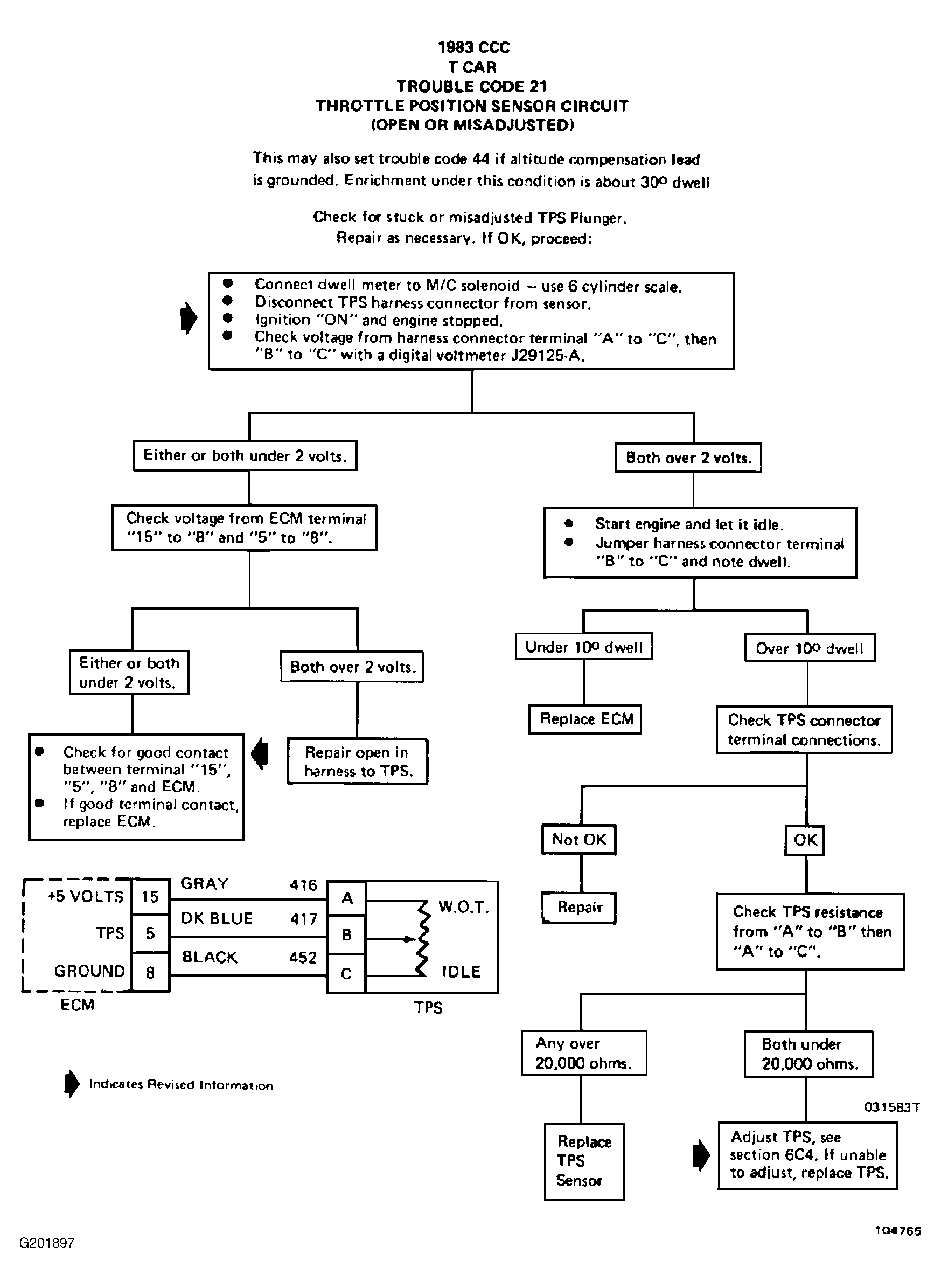

Fig 1: Flow Chart, Code 21 - Throttle Position Sensor (TPS) Ckt - (Open or Misadjusted)

Fig 2: Flow Chart, Code 21 - Throttle Position Sensor (TPS) Ckt - (Open or Misadjusted)
