Diagnostic Circuit Check

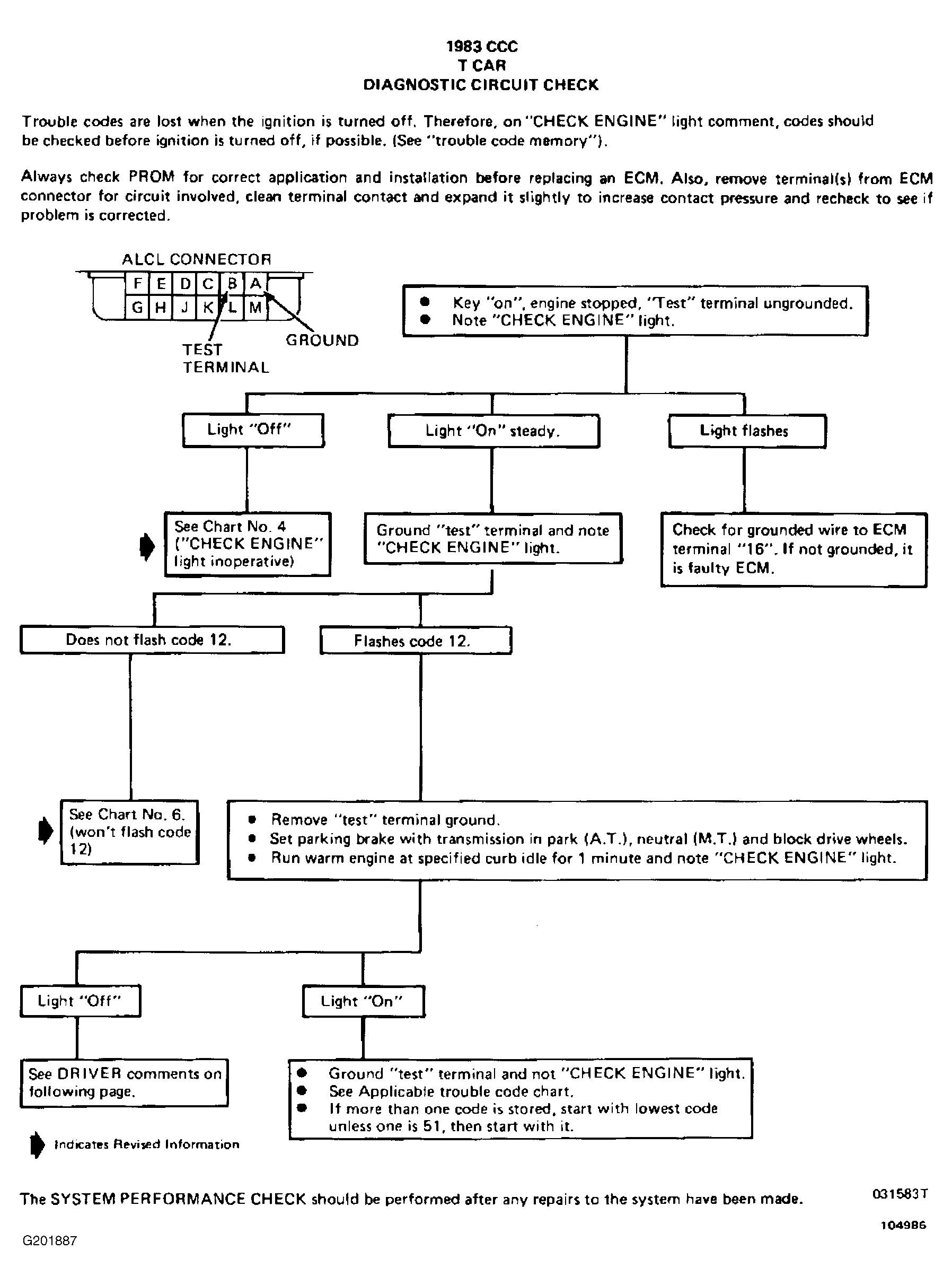

Fig 1: Flow Chart - Diagnostic Circuit Check Chart

G201887

Fig 2: Flow Chart - Diagnostic Circuit Check Chart

GB0045533
