Feedback Carburetor Tests W/Codes
›
Chart 3 - Cts CKT Check
Chart 3 - Cts CKT Check

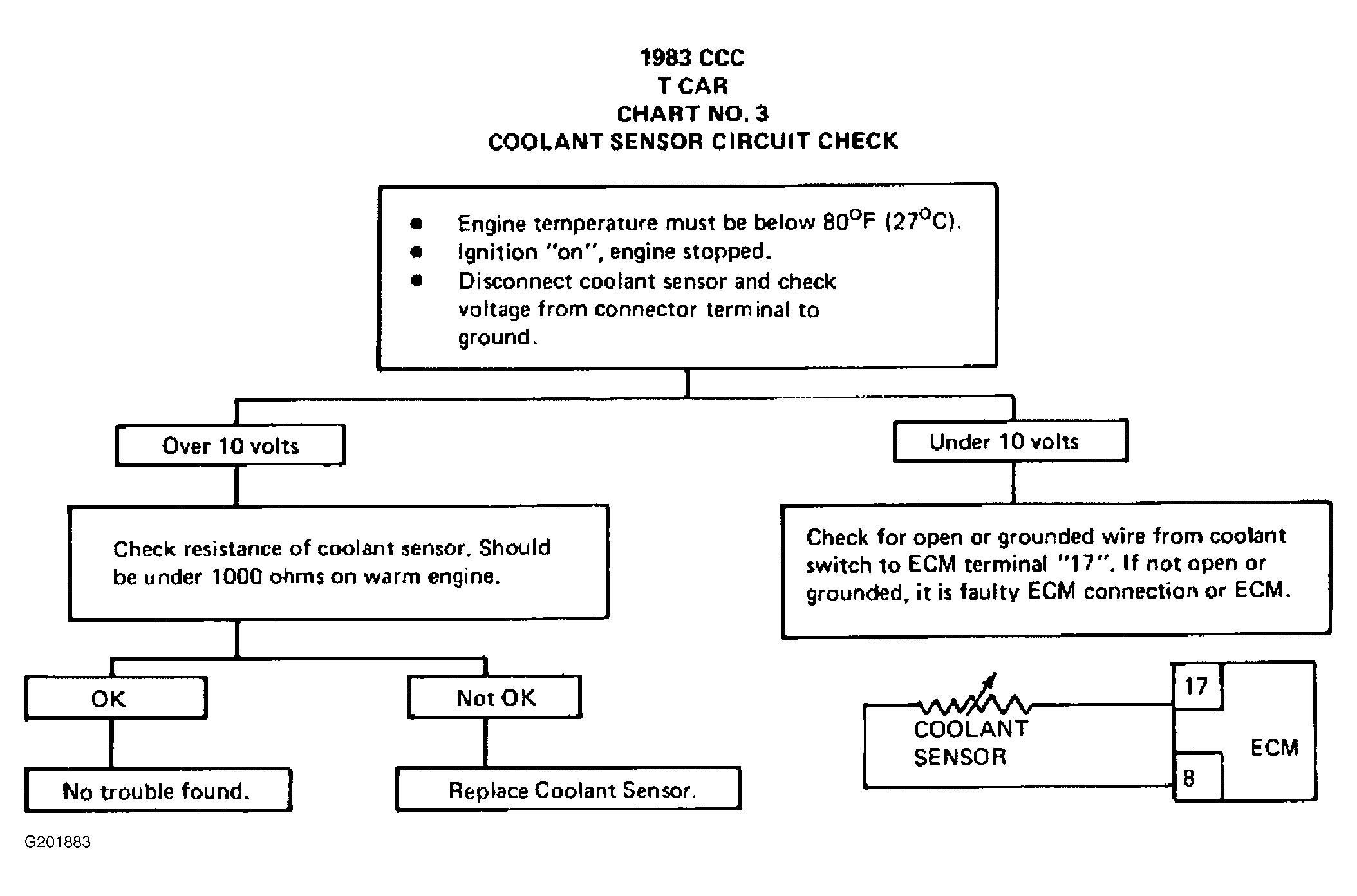

Fig 1: Chart 3 - Coolant Temperature (CTS) Sensor Circuit Check
