Feedback Carburetor Tests W/Codes
›
Divert Valve Check
Divert Valve Check
Fig 1: Divert Valve Check Flow Chart
Fig 2: Divert Valve Check Flow Chart 1 OF 2

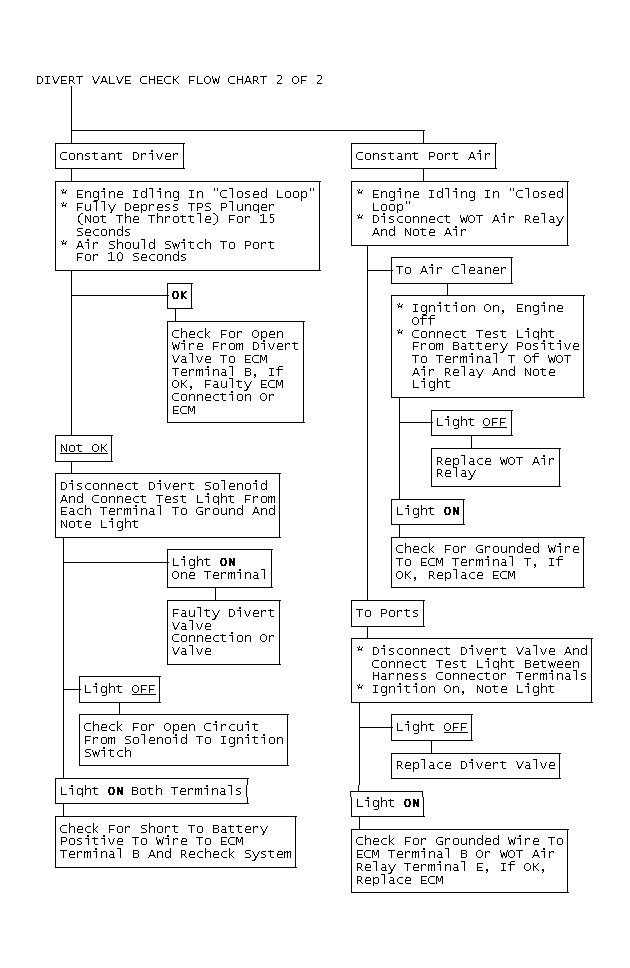

Fig 3: Divert Valve Check Flow Chart 2 OF 2
