Chart C-4D: Ignition System Check

Fig 1: Chart C-4D, Ignition System Check Flow Chart

Fig 2: Chart C-4D, Ignition System Check Flow Chart 1 Of 2

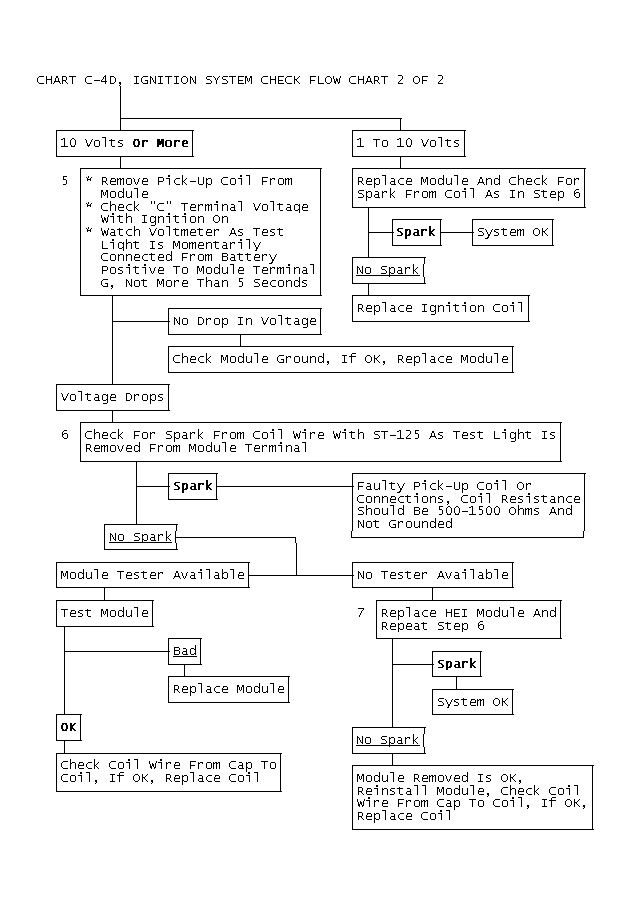

Fig 3: Chart C-4D, Ignition System Check Flow Chart 2 Of 2
