Testing & Diagnosis

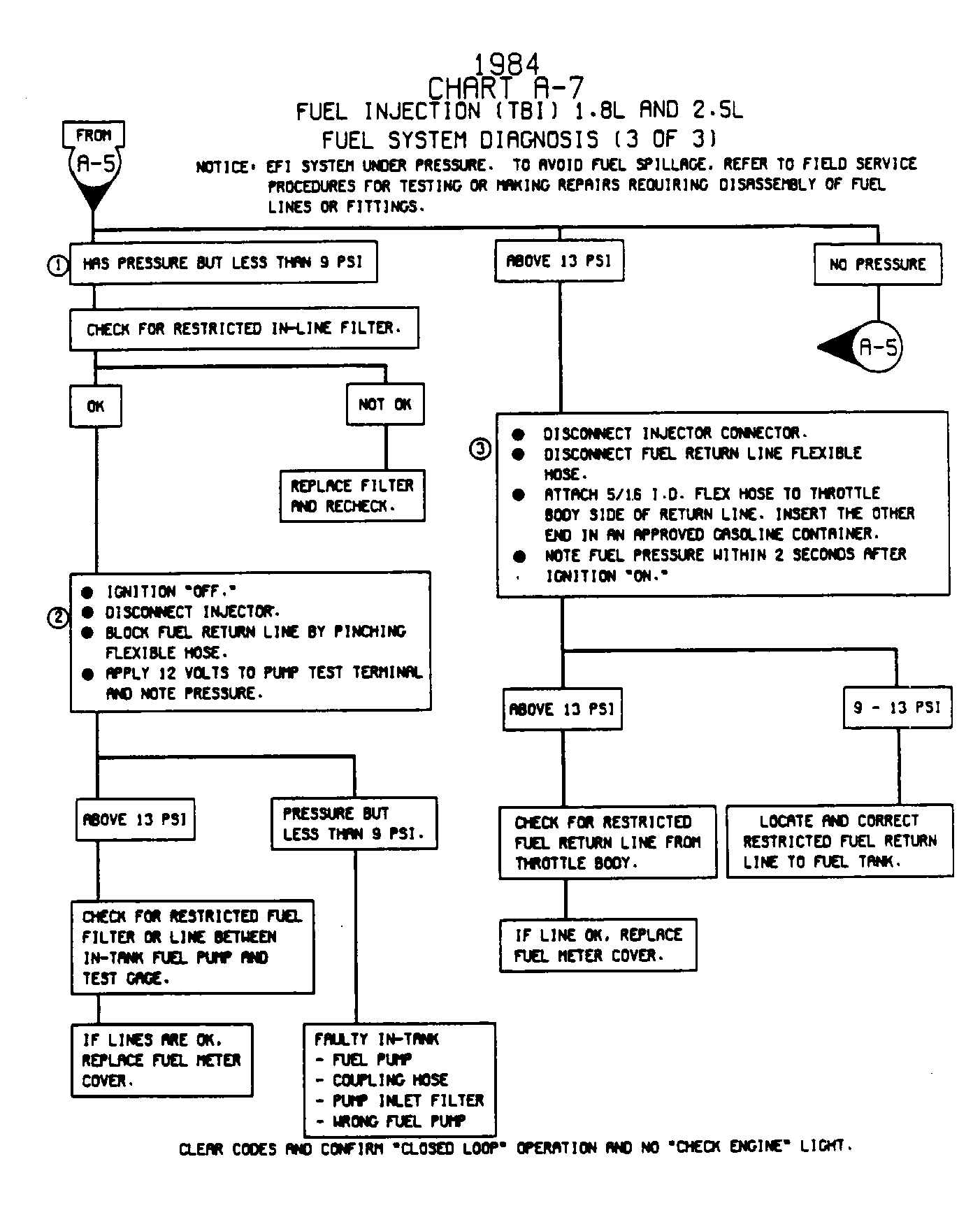

Fig 1: 1984 Fuel System Diagnosis
G1689
Fig 2: 1984 Fuel System Diagnosis (Cont.)
G1691
