Component Testing

NOTE: See Fig 1 and Fig 2 .

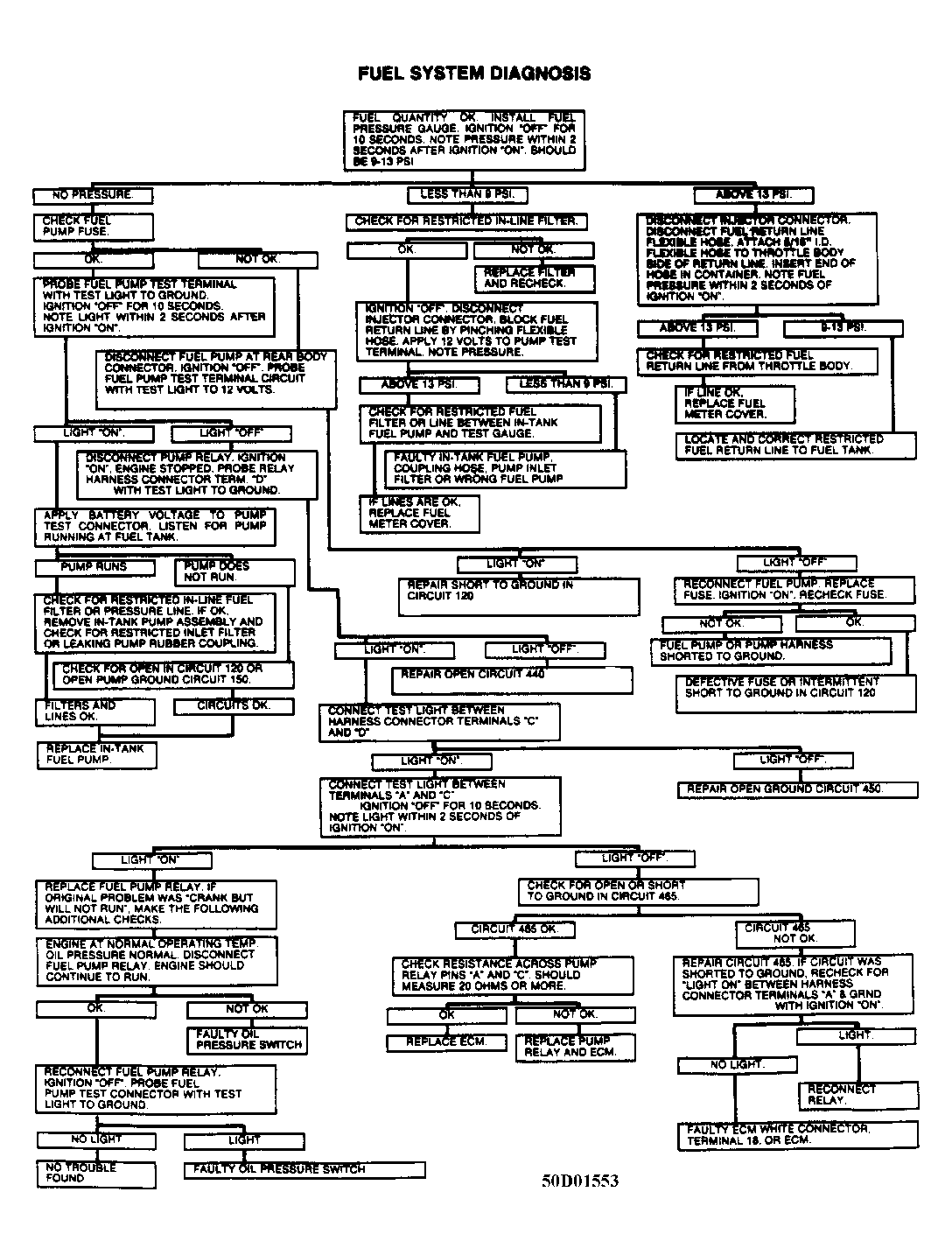

Fig 1: Fuel System Diagnosis
G50D01553

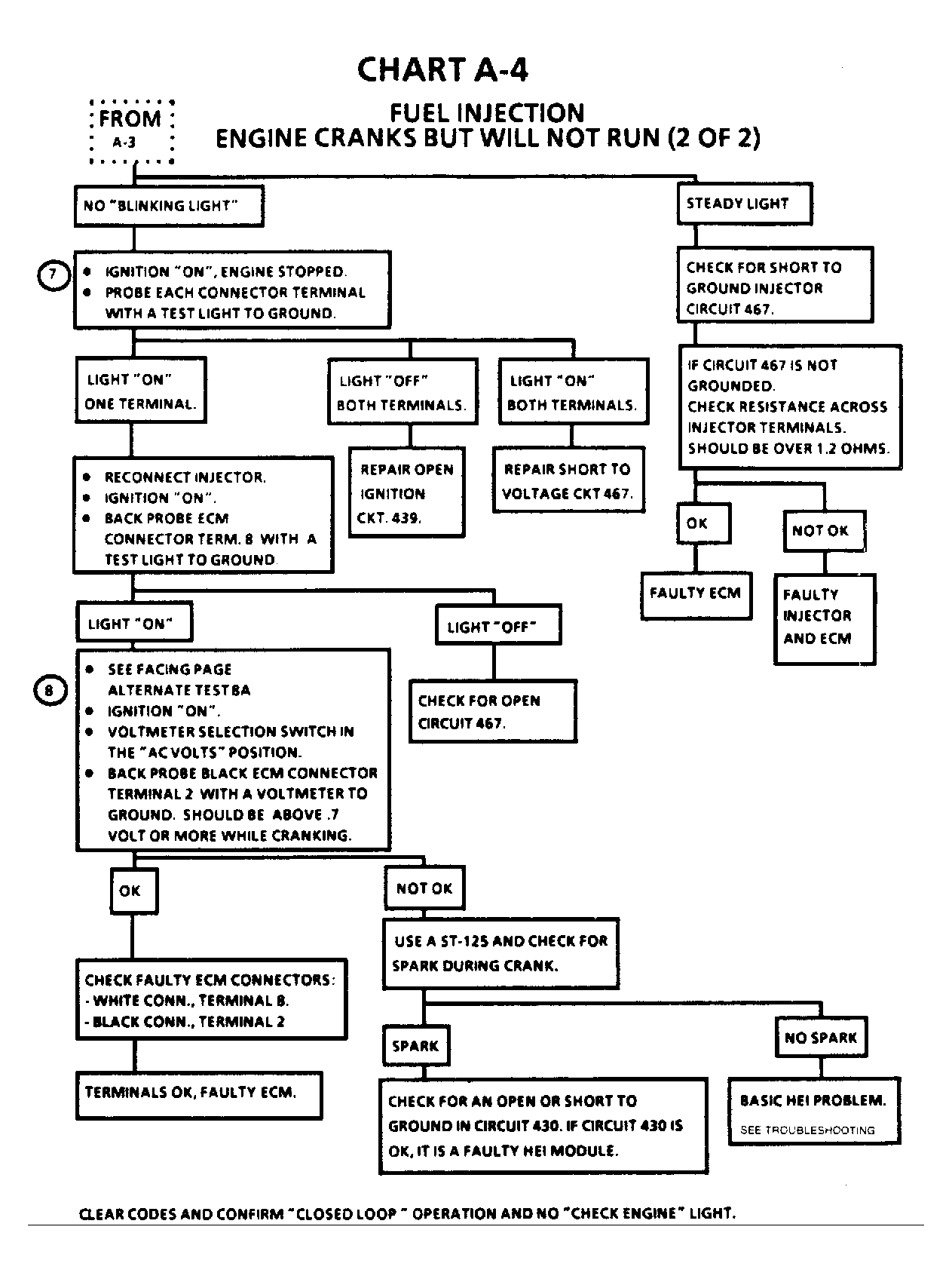

Fig 2: Injector System Diagnosis
G10513
