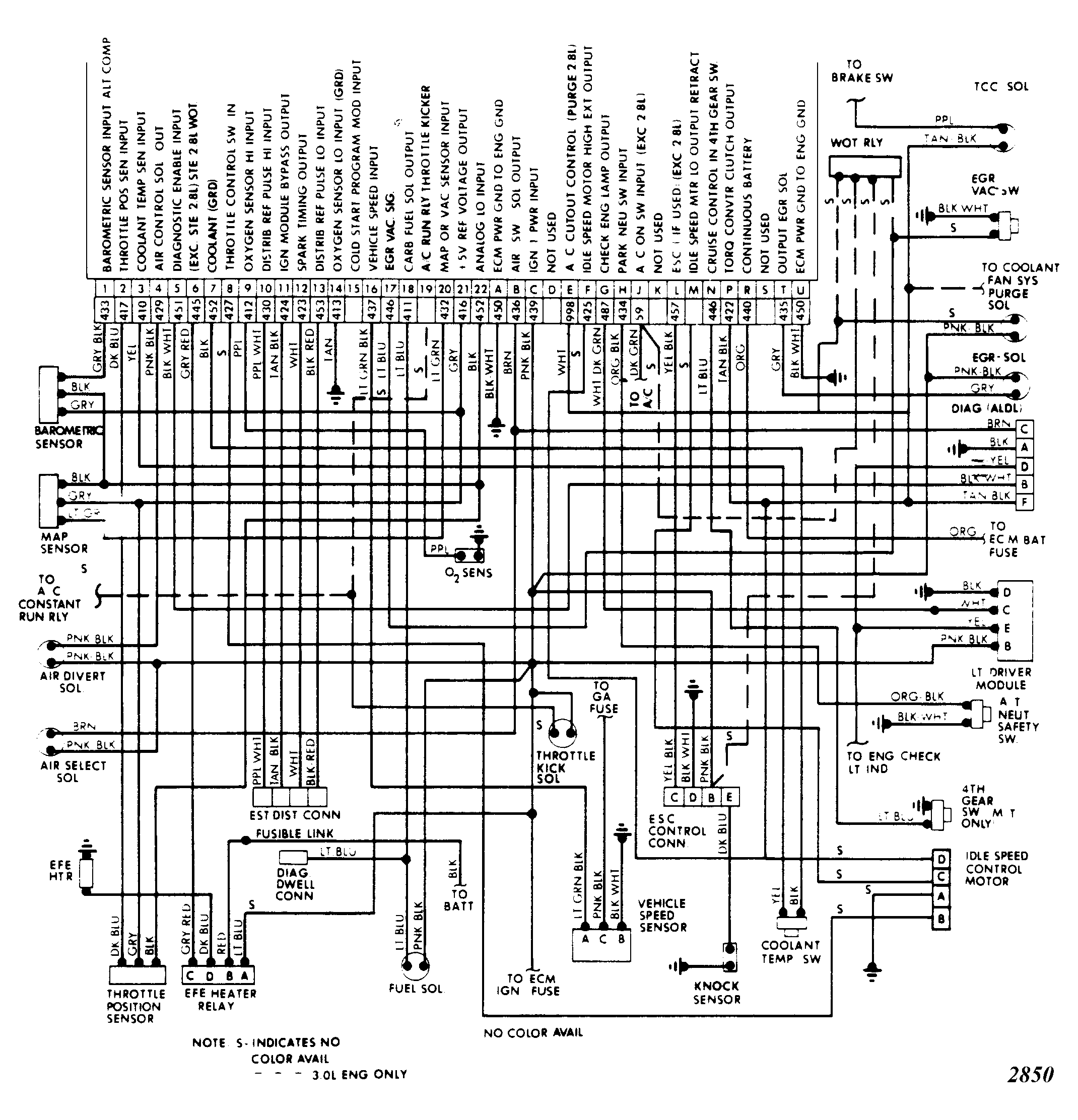

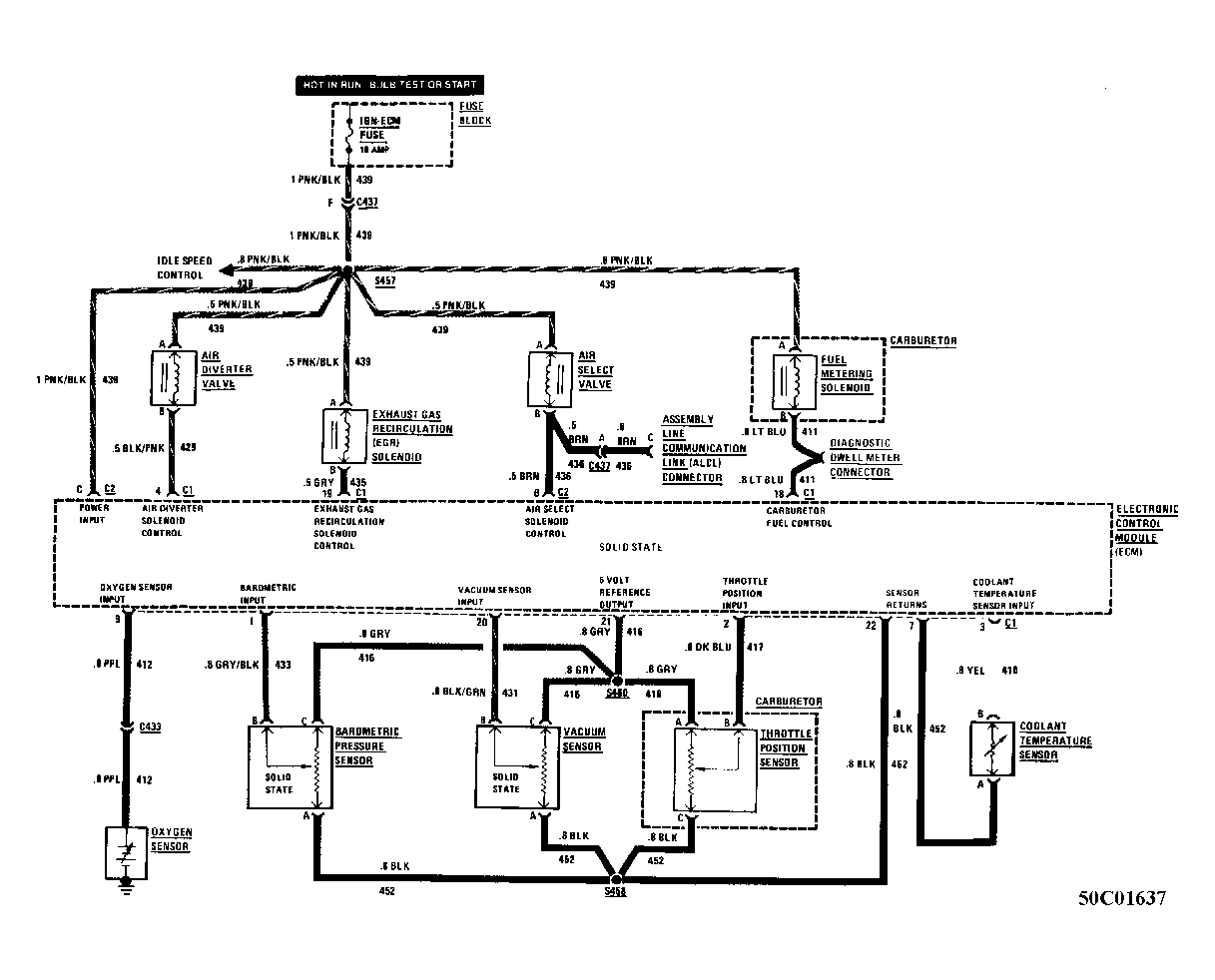

Fig 2: Full Function Wiring Diagram - 3.0L & 3.8L Engines
NOTE:

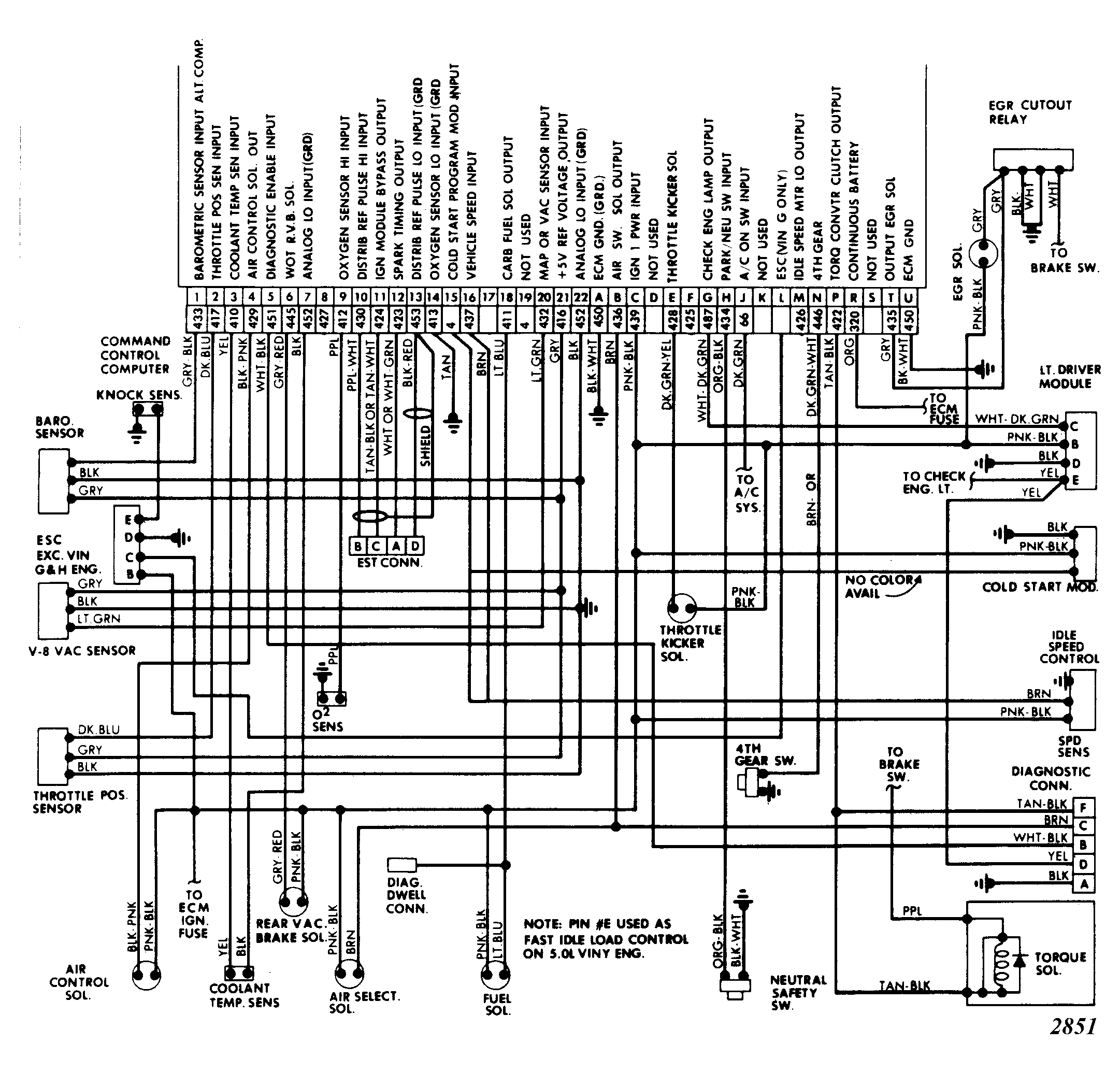

In Fig. Fig 3, the ground symbol on the Pin 22 wire going to the VAC Sensor should be removed. The EGR Cutout relay should be removed from the diagram. It does not exist. See Fig 4 for revision.

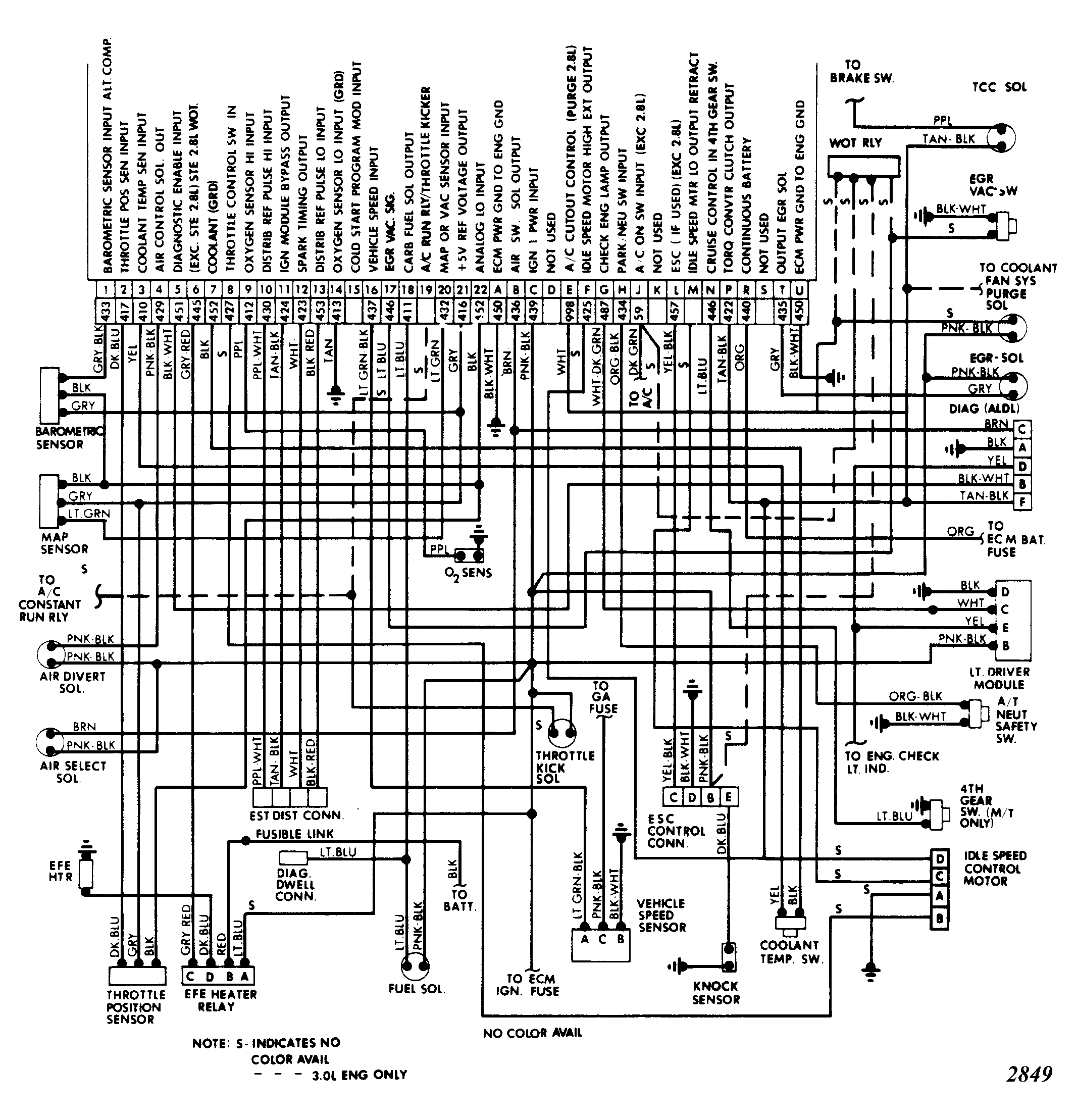

Fig 3: Full Function Wiring Diagram - 5.0L & 5.7L Engines
