Chart C2C - Idle Air Control
Chart C2C - Idle Air Control

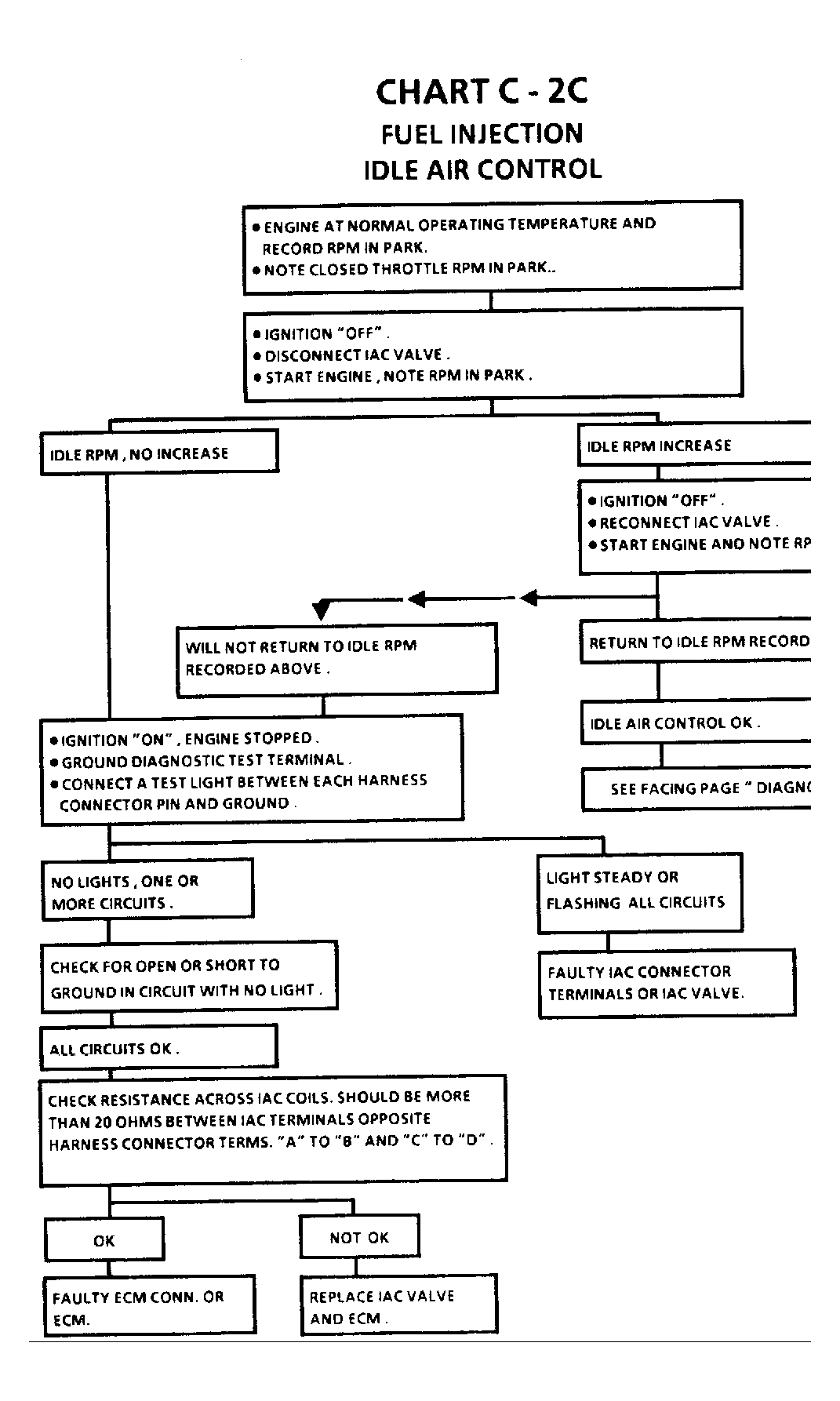

Fig 1: Chart C2C (All Engines) - Idle Air Control
