ECM Terminal Id
ECM Terminal Id
Fig 1: Port Fuel Injection ECM Terminal Identification 2.8L

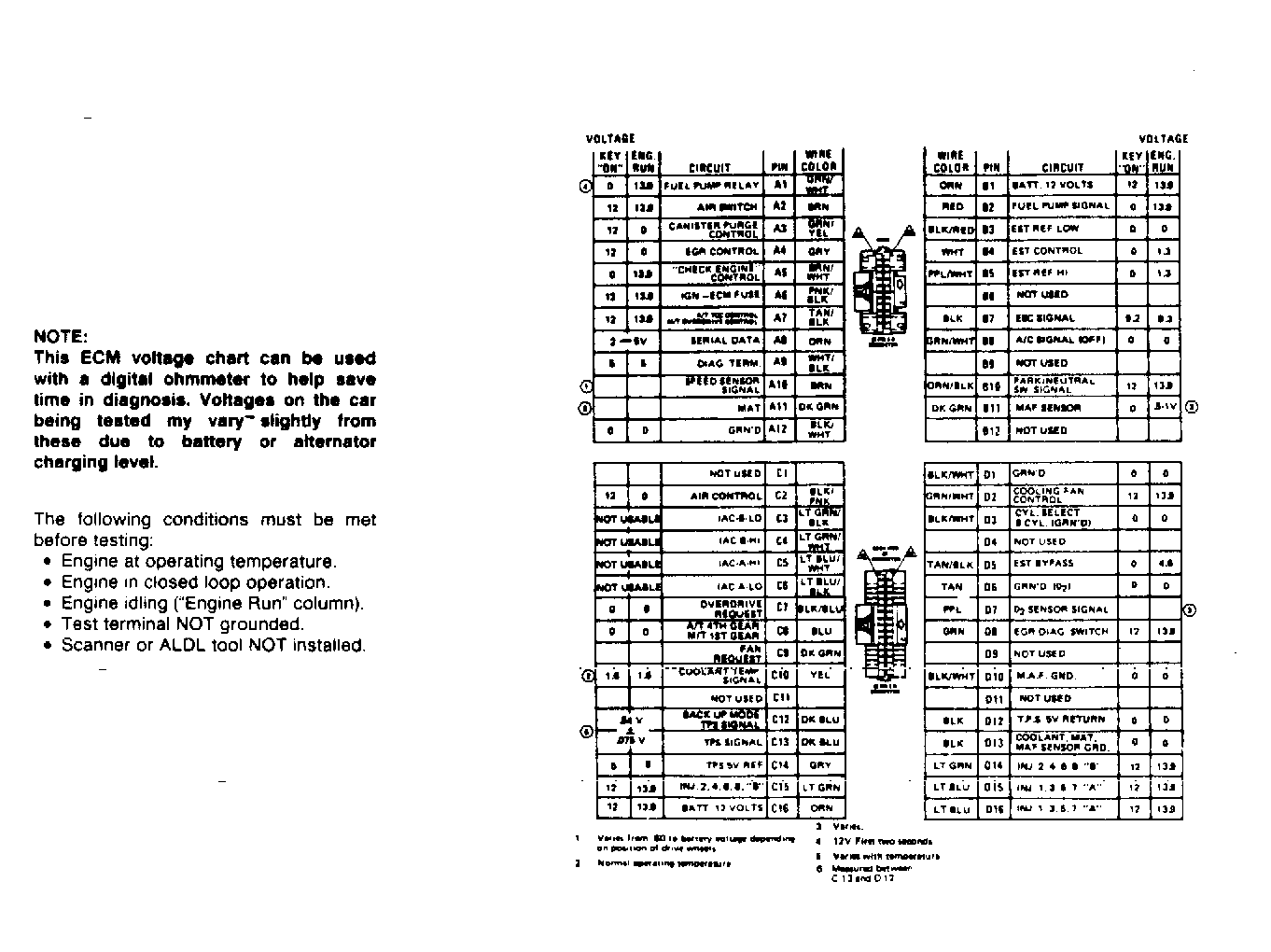

Fig 2: Port Fuel Injection ECM Terminal ID 5.0L & 5.7L
