Wiring Diagrams

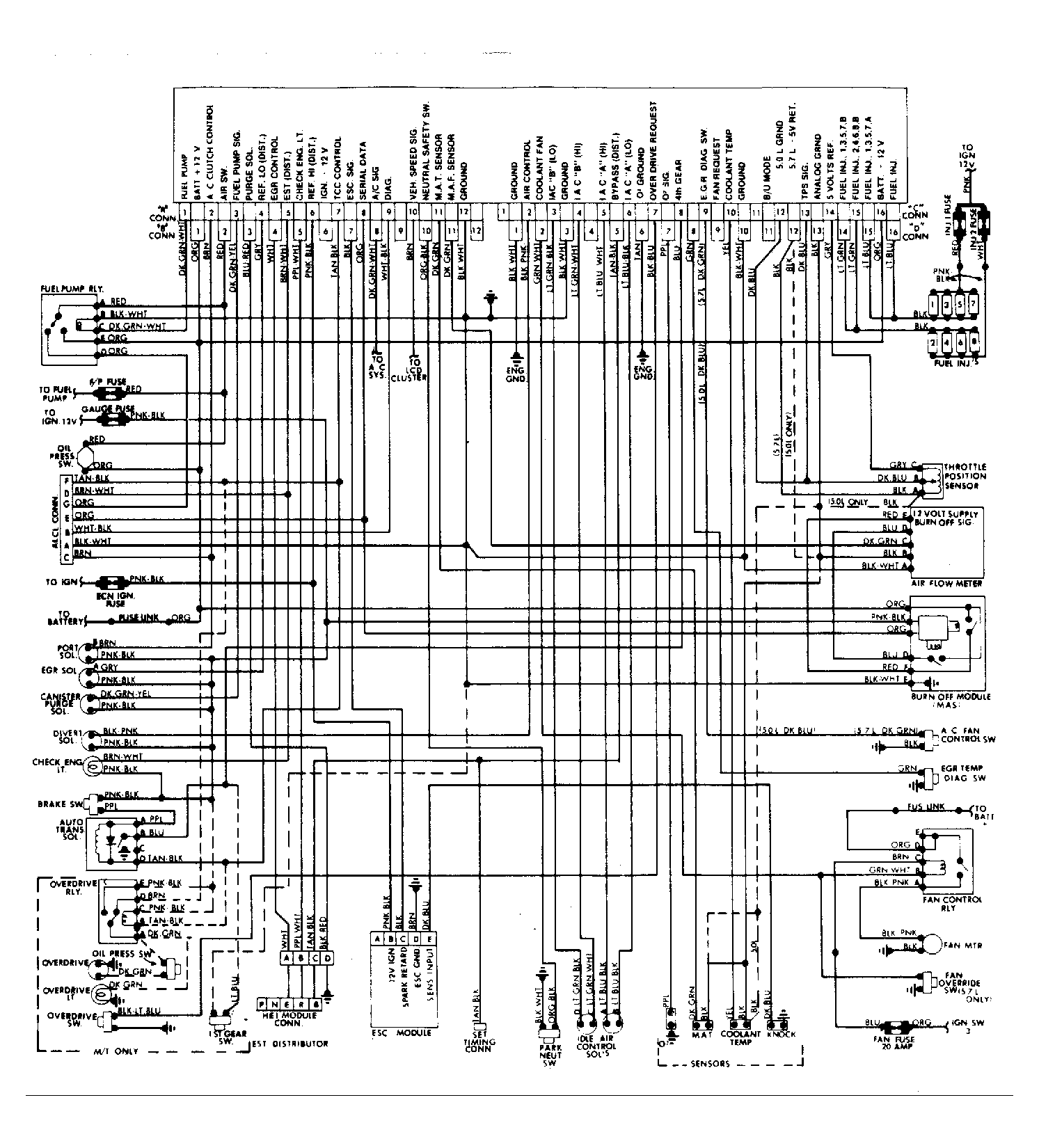

Fig 1: Wiring Diagram for 1.8L Turbo Fuel Injection System

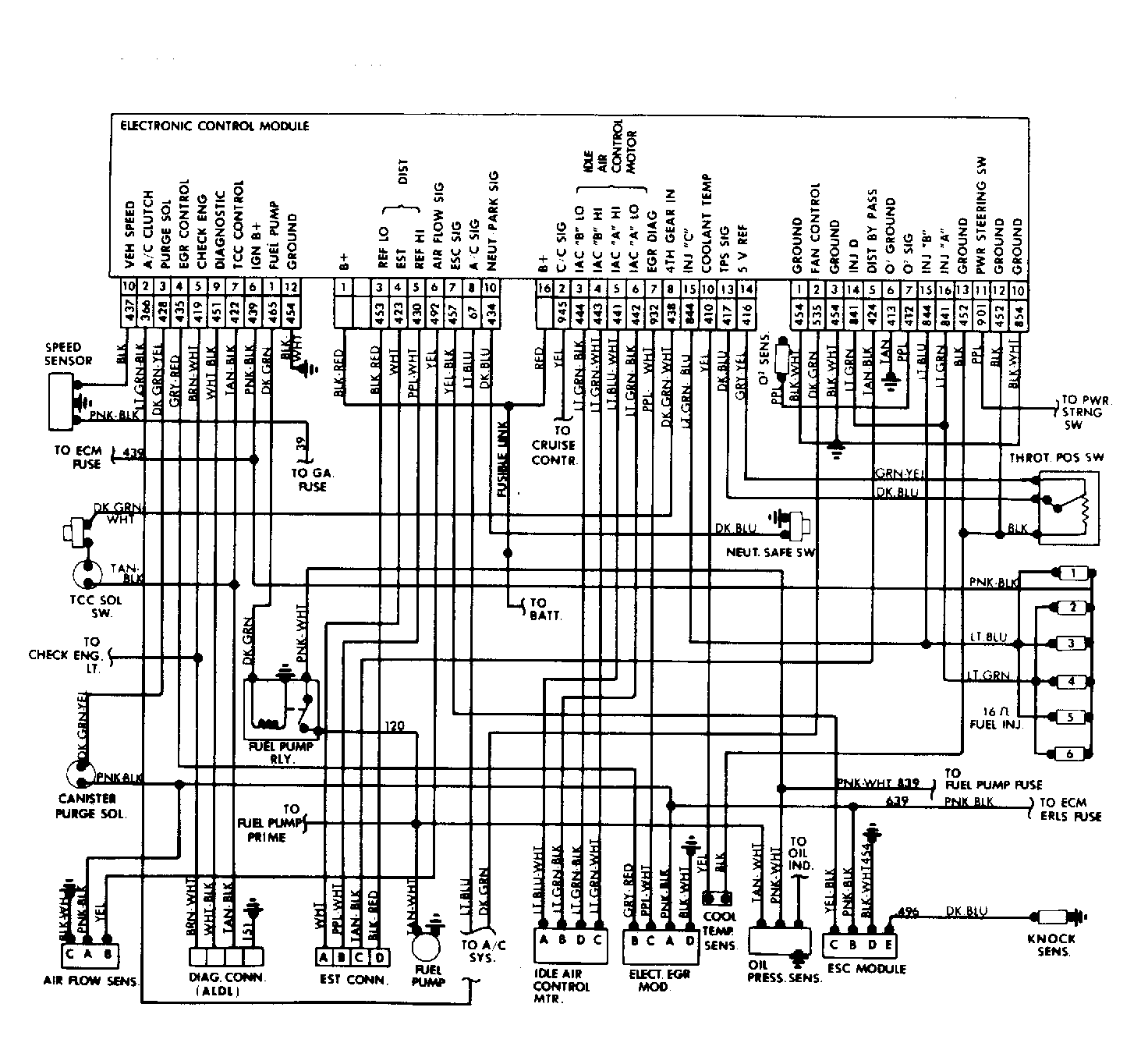

Fig 2: Wiring Diagram for 2.8L V6 Fuel Injection System (All Except Fiero Models)

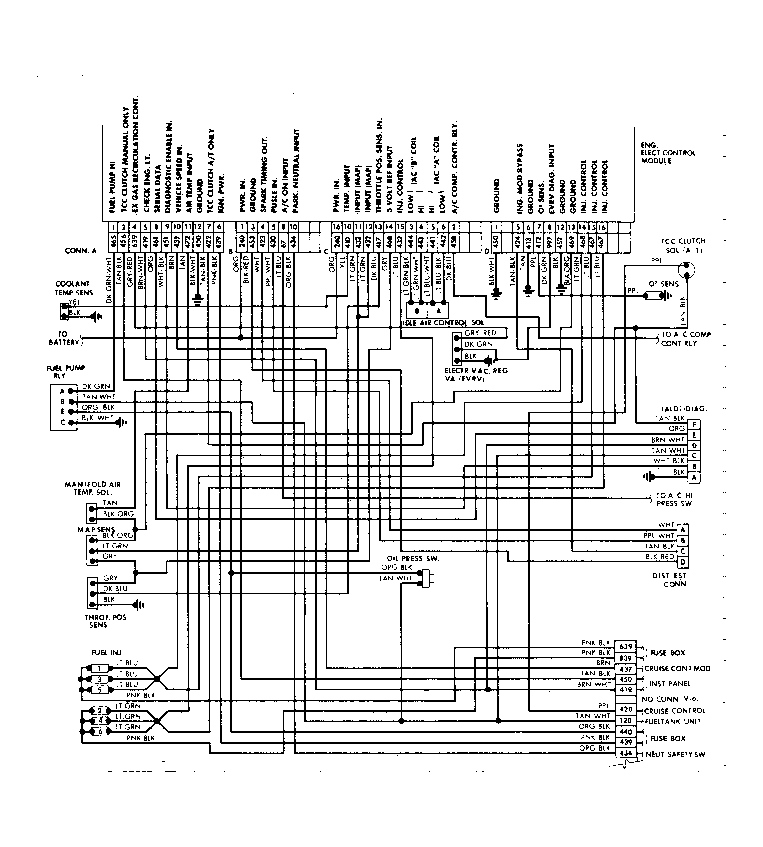

Fig 3: Wiring Diagram for 2.8L V6 Fuel Injection System (Fiero Models)

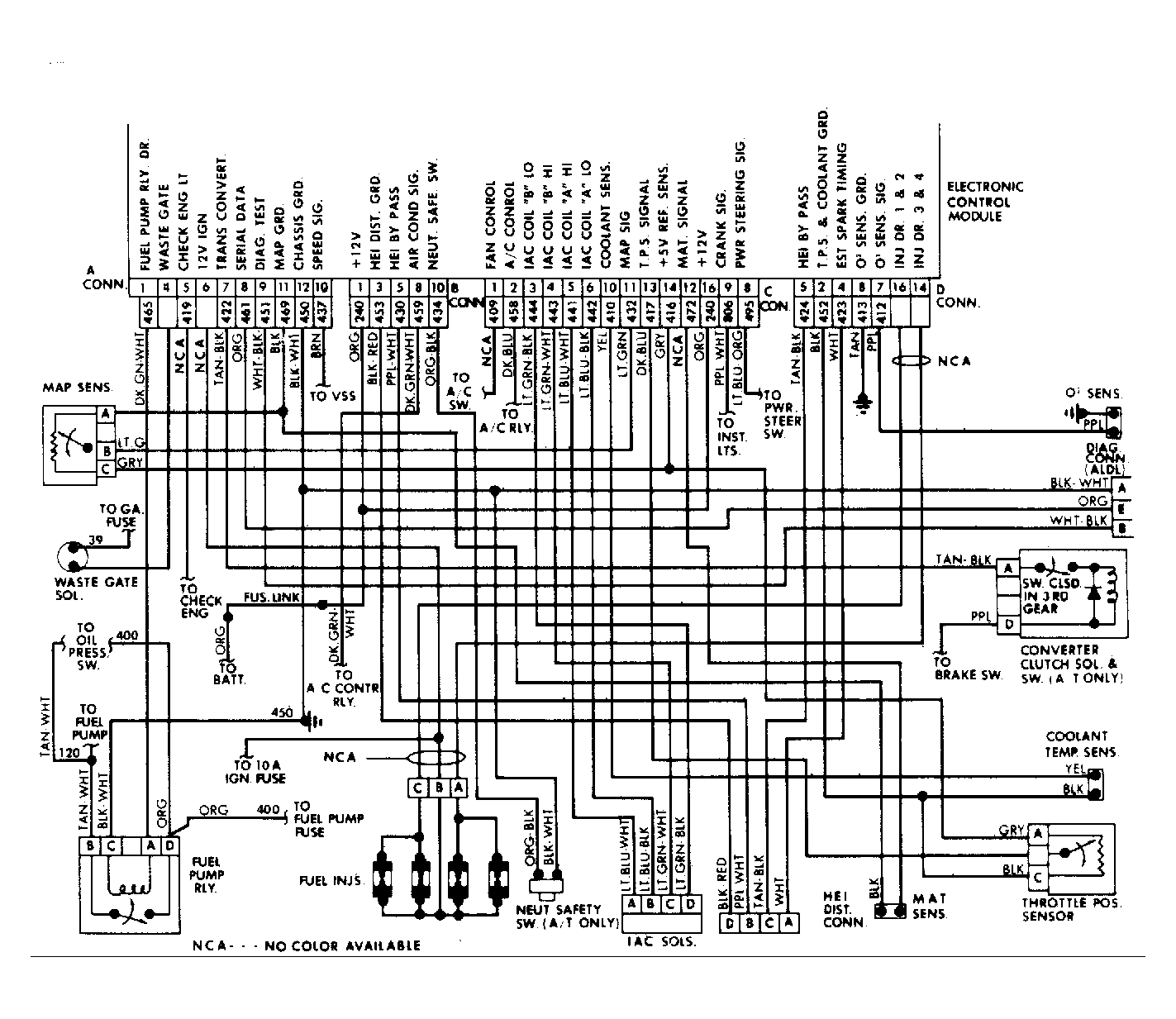

Fig 4: Wiring Diagram for 3.8L V6 Fuel Injection System (Non-Turbo Models)

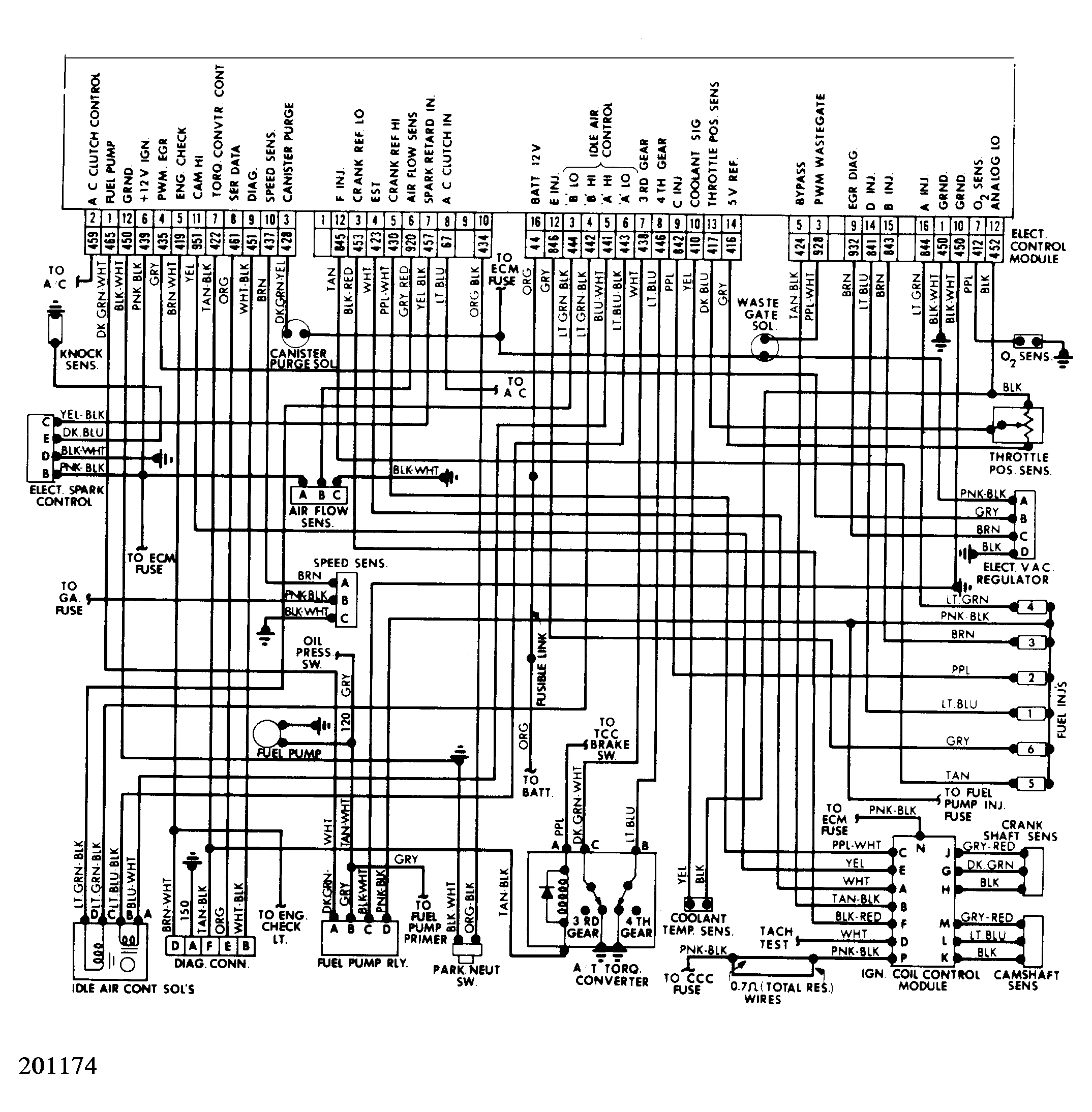

Fig 5: Wiring Diagram for 3.8L V6 Fuel Injection System (Turbo Models)

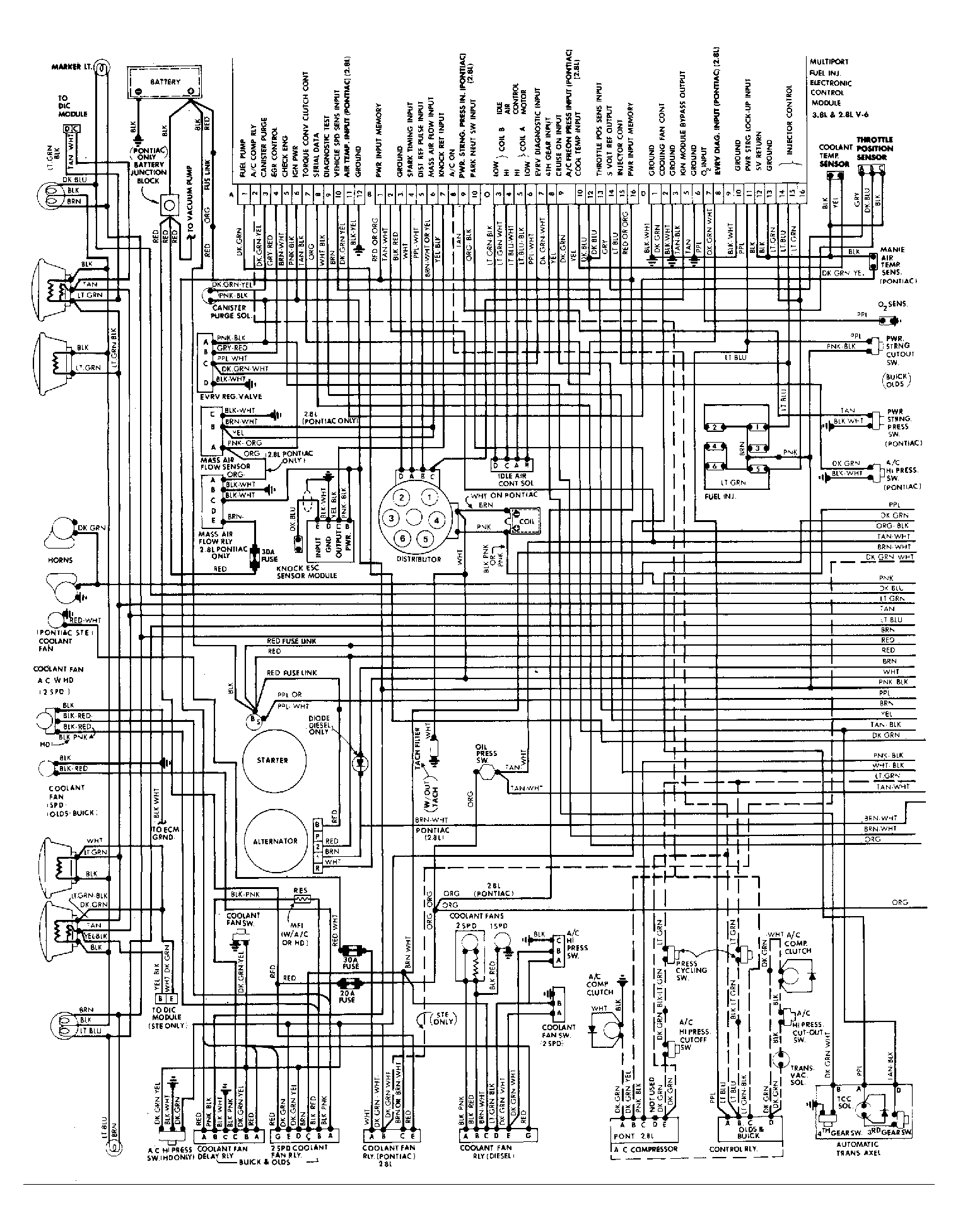

Fig 6: Wiring Diagram for 5.0L & 5.7L V8 Fuel Injection System
