Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Programmer (Tempmatic) | Behind right side of dash. |

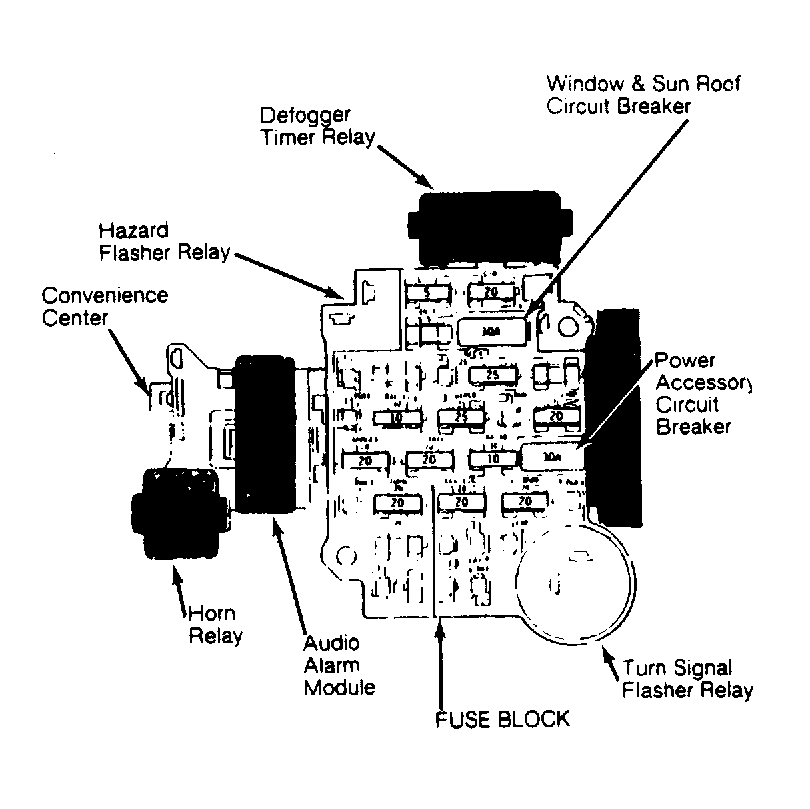

| Audio Alarm Module | On left side of fuse block. See Figure. |
| Automatic Door Lock Controller | Attached to upper portion of right kick panel. |
| Blower/Clutch Control Module (LeSabre Only) | On top of evaporator housing in engine compartment. |
| Blower/Clutch Control Module (All Others) | On top of blower plenum. |
| Cruise Control Module (except Oldsmobile) | Under left side of dash, to left of steering column. |
| Cruise Control Module (Oldsmobile) | Under left side of dash, between radio and steering column. |
| Diesel Elect. Control (DEC) Module | Behind right kick panel. See Figure. |

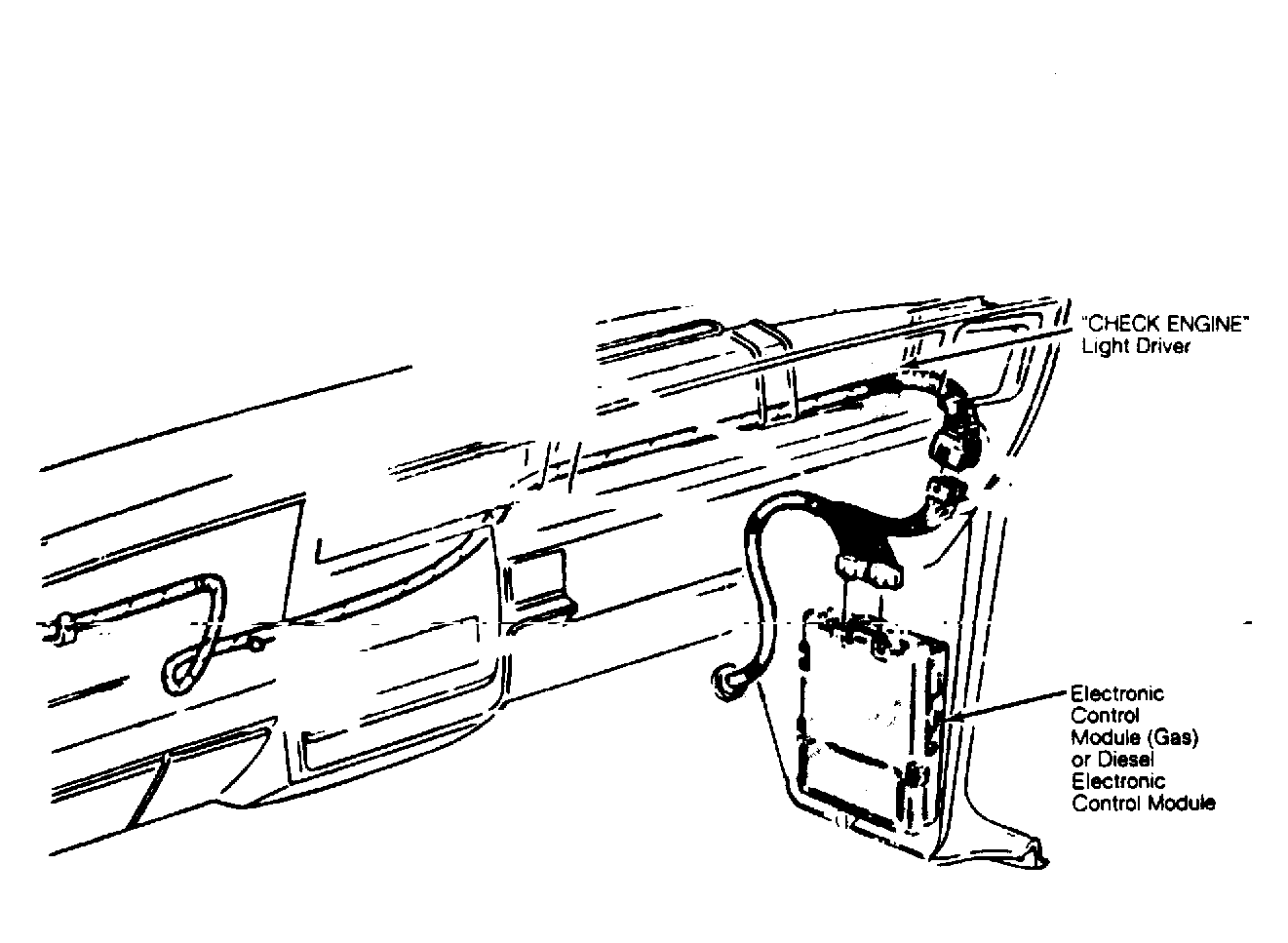

| Electronic Control Module (ECM) | Behind right kick panel. See Figure. |

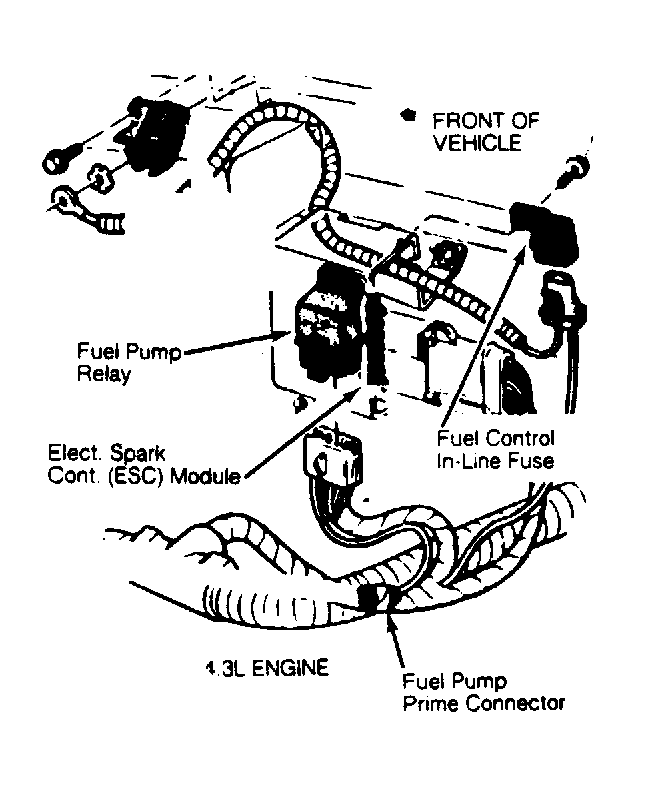

| Elect. Spark Control (ESC) Module | On right front. See Figure & 6. |

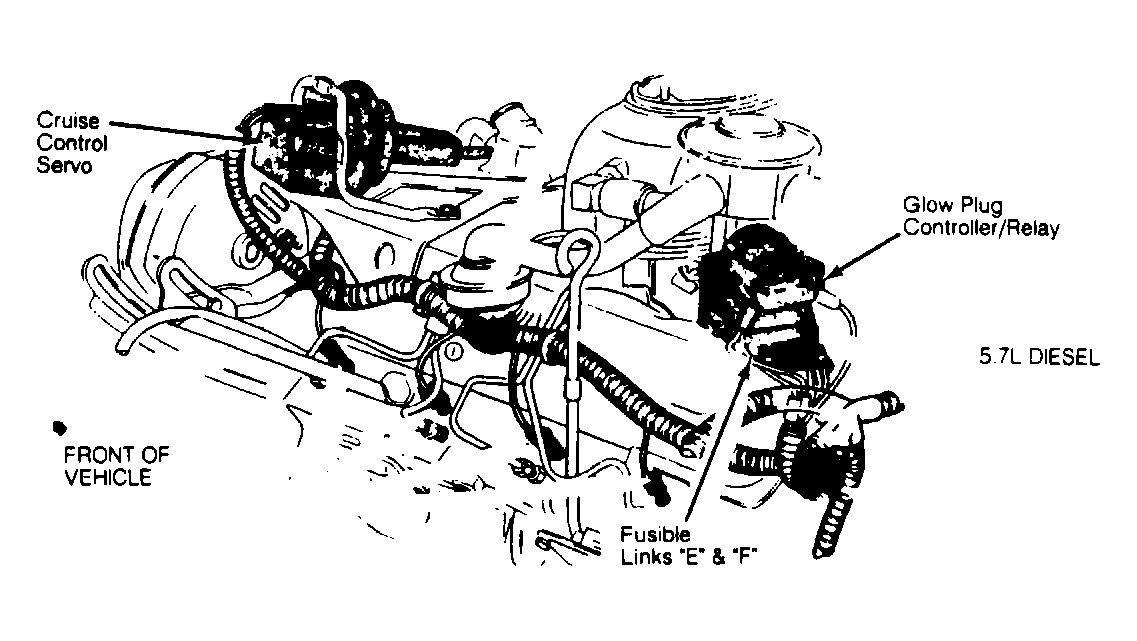

| Glow Plug Controller/Relay | On top left rear of engine. See Figure. |
| Multi-Function Chime Module | On convenience center. |
| Heater Blower Control Motor | Attached to evaporator housing in engine compartment. |
| Seat Memory Module | Under driver's seat. |
| Theft Deterrent Controller | Under left side of dash, to right of steering column. |
| Twilight Sentinel Control | Under left side of dash, to left of steering column. |
| Water-in-Fuel Module (Diesel) | On top of fuel filter assembly. |
