Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Compressor Clutch Diode | Taped inside compressor connector on front of compressor. See Figure & 20. | |
| A/C-Heater Blower Resistors | At right side of firewall (in engine comp.), near blower motor. | |
| Assembly Line Data Link Connector | Under left side of dash, to right of steering column. | |
| Automatic Door Lock Diode | Behind left kick panel, near lower access hole. | |
| "CHECK ENGINE" Light Driver | Taped to instrument panel harness, above glove box. See Figure. | |
| Convenience Center | Behind left side of dash, to left of fuse block. See Figure. | |
| Cruise Control Servo | ||
| Gas Engine | At front of left. | |
| Diesel Engine | At top front of engine, above left valve cover. See Figure. | |

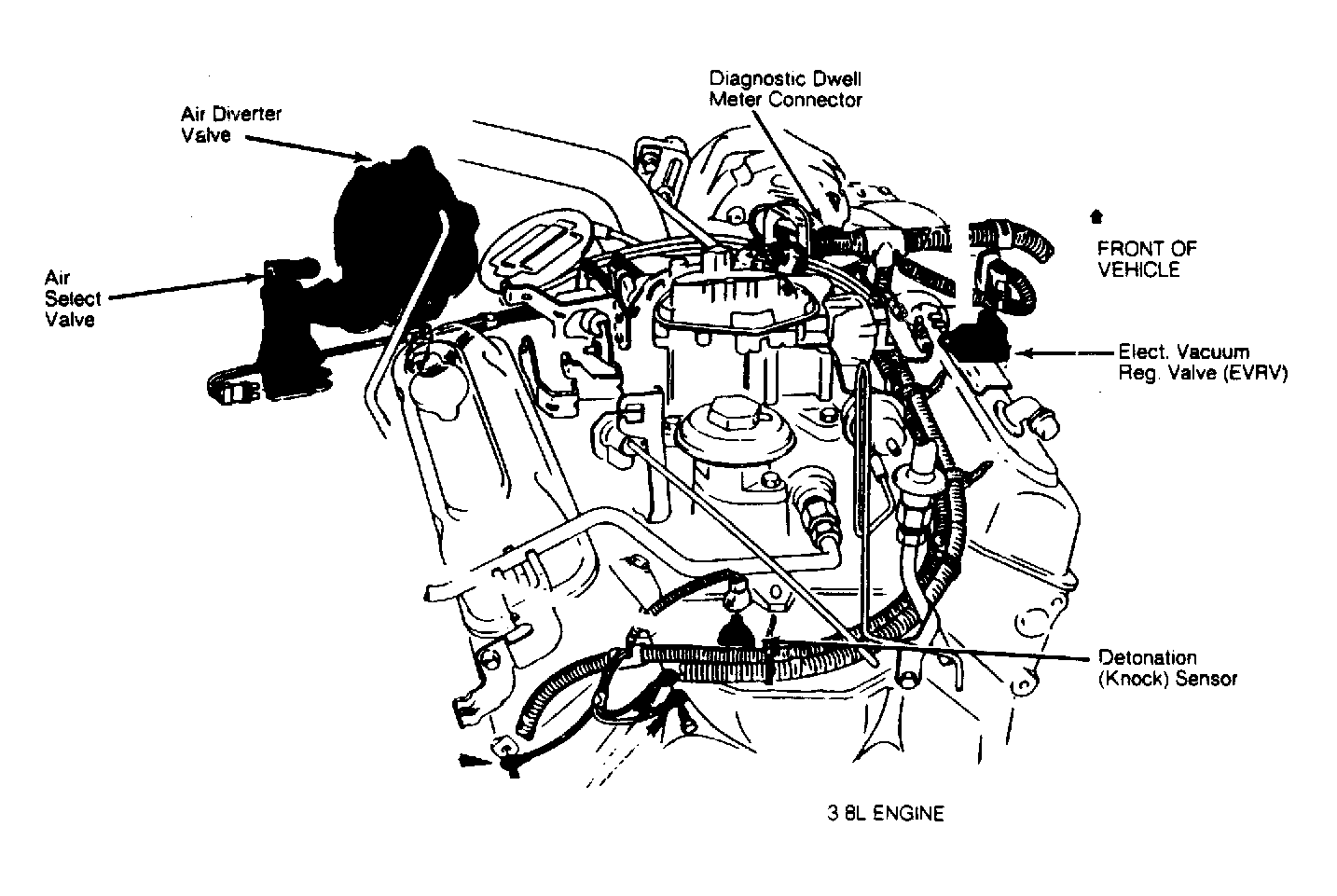

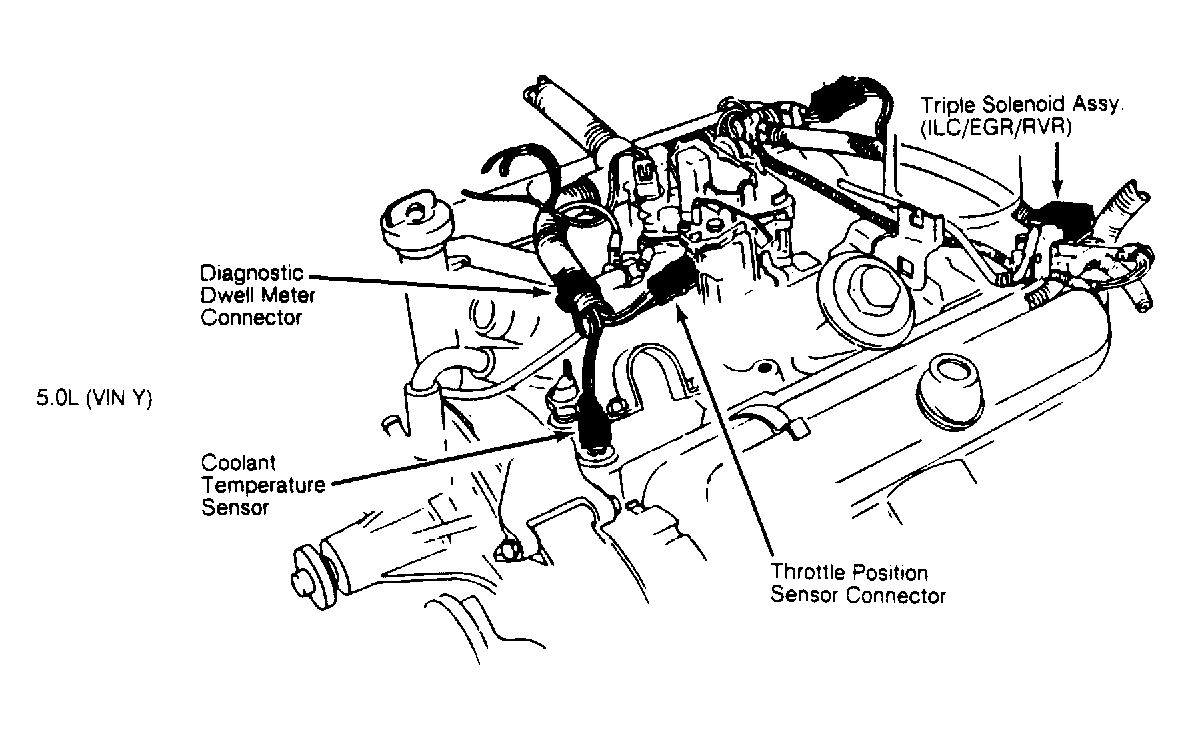

| Diagnostic Dwell Meter Connector | Taped to wiring harness, near carburetor (Green color). See Figure, Figure & 14. | |
| EGR Diagnostic Connector (4.3L) | At top rear of engine, behind distributor. | |
| Fiber Optic Light Source | Behind center of dash, taped to wiring harness above radio. | |
| Fuel Control In-Line Fuse (4.3L) | On right front inner fender panel. See Figure & 6. | |
| Fuel Pump Prime Connector (4.3L) | Taped to wiring harness by right front inner fender panel. See Figure. | |
| Fuse Block | Under left side of dash. See Figure. | |
| Fusible Links | ||

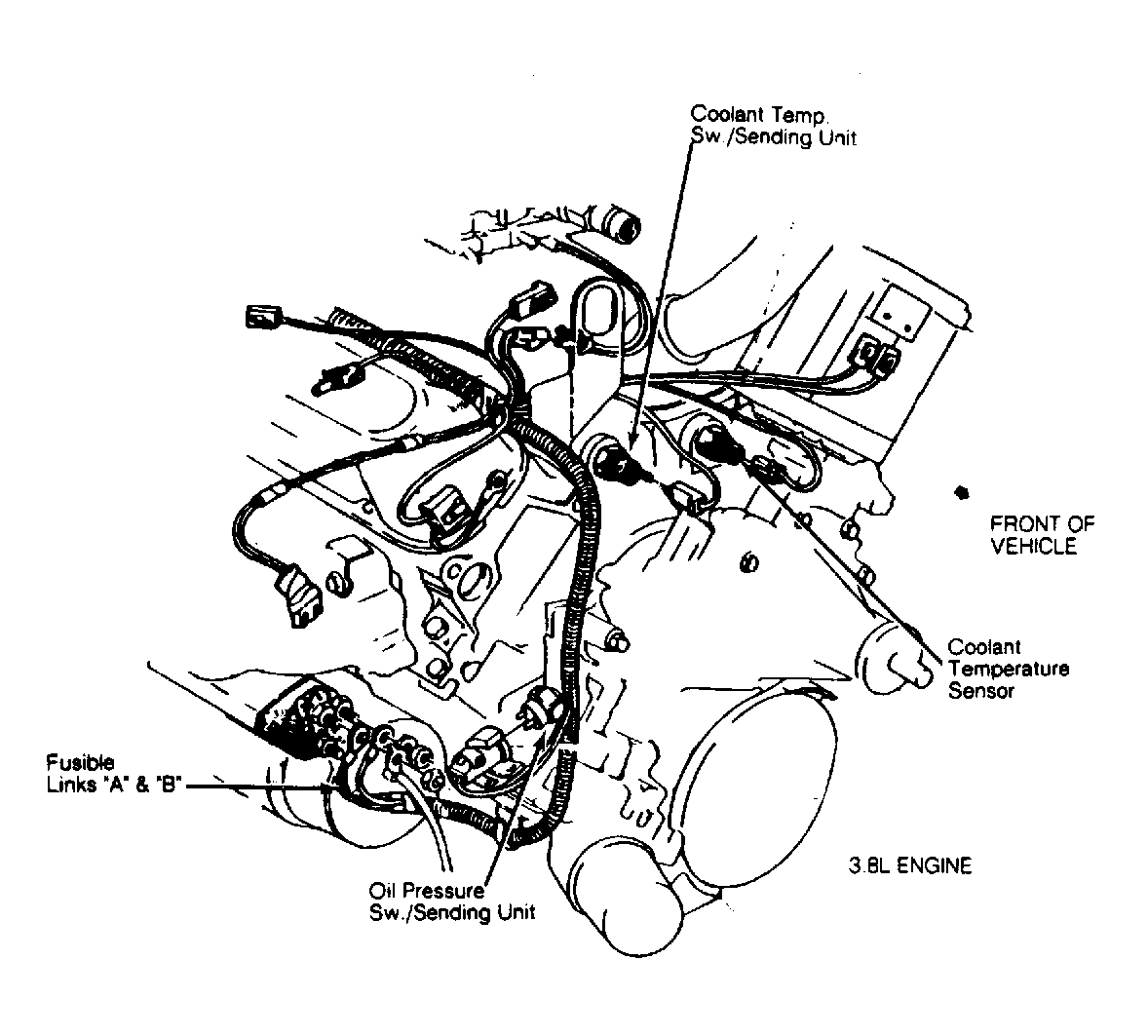

| "A" & "B" (Red) | On lower right side of engine, near starter solenoid. See Figure. | |
| "A" & "B" (Black) (Diesel) | On lower right side of engine, near starter solenoid. | |
| "C" (Red) | Between battery and battery junction block. | |
| "E" & "F" (Green) (Diesel) | On top rear of engine, behind glow plug relay. See Figure. | |
| "G" (Brown) (Diesel) | On lower left side of engine, near starter solenoid. | |
| "K" (Red) | In Electronic Level Control wiring harness, behind alternator. | |
| "N" (Orange) (Diesel) | On lower right side of engine, near starter solenoid. | |
| Generator Diode | ||
| Gas Engine | In instrument panel wiring harness under left side of dash, near fuse block. | |
| Diesel Engine | In engine harness, 2 feet from bulkhead connector. | |
| Inverter Instrument Panel | Behind center of dash, above radio. | |
| Opera Lights | At left side of trunk, behind left rear taillight. | |
| (Defogger, Door Locks, Seats) | Above turn signal flasher relay in fuse block. See Figure. | |
| Power Master Brake In-Line Fuse | Under left side of dash, in connector near fuse block. | |
| Theft Deterrent Diode | Under left side of dash, near fuse block inside connector. | |
| Theft Deterrent In-Line Fuses | Above fuse block, taped to instrument panel wiring harness. | |
| Twilight Sentinel Amplifier | On bracket behind right side of dash. | |
| Twilight Sentinel Photocell | On top left side of dash. | |
| Vehicle Speed Sensor Buffer | Taped to instrument panel wiring harness under left side of dash, near fuse block. | |

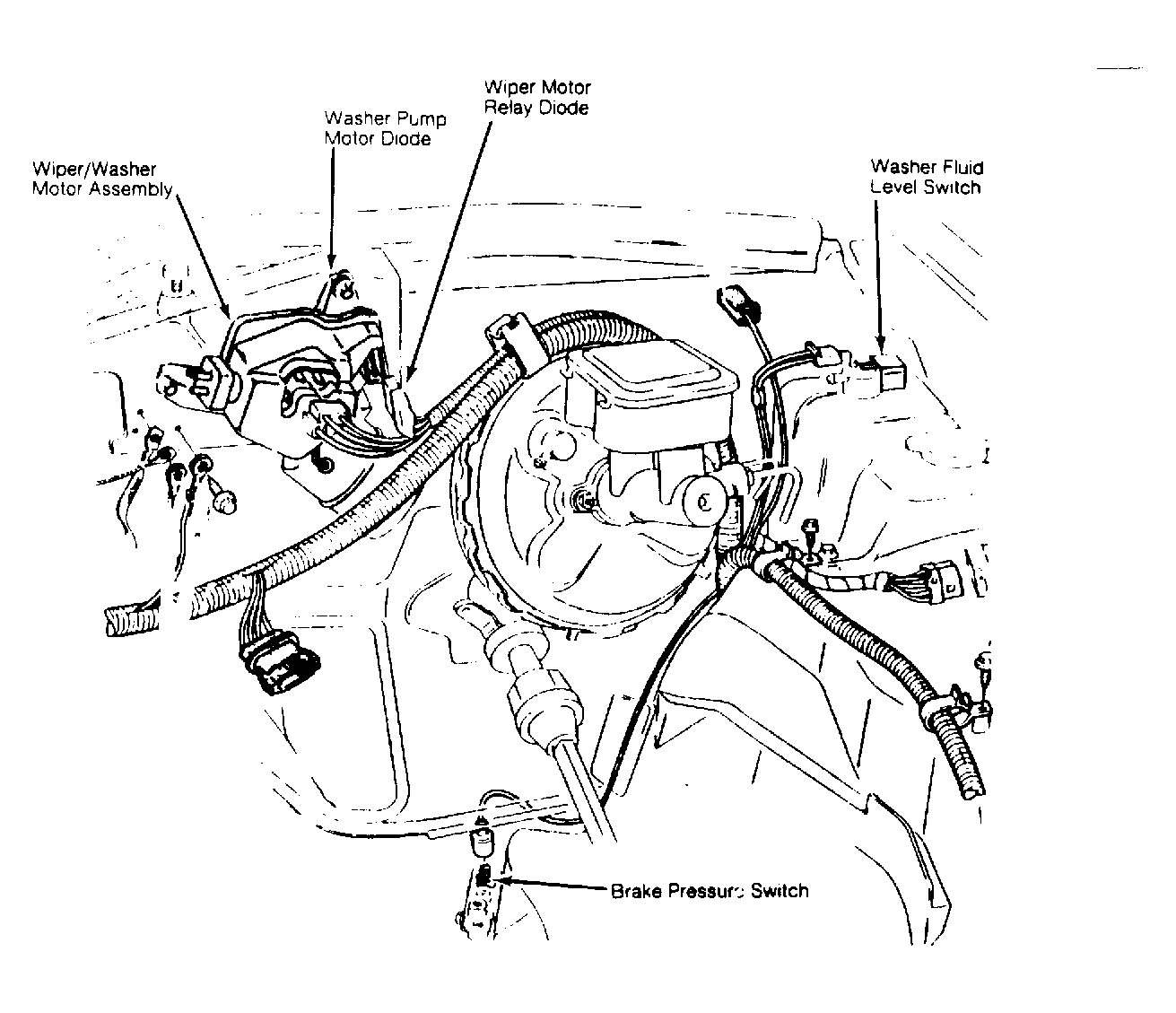

| Washer Pump Motor Diode | In washer motor connector. See Figure. | |
| Window & Sun Roof Circuit Breaker | At top right corner of fuse block, second row. See Figure. | |
| Wiper Motor Relay Diode | In wiper motor connector. See Figure. | |
