Feedback Carburetor Tests W/Codes
›
Chart C1E - Vac Sensor Check
Chart C1E - Vac Sensor Check

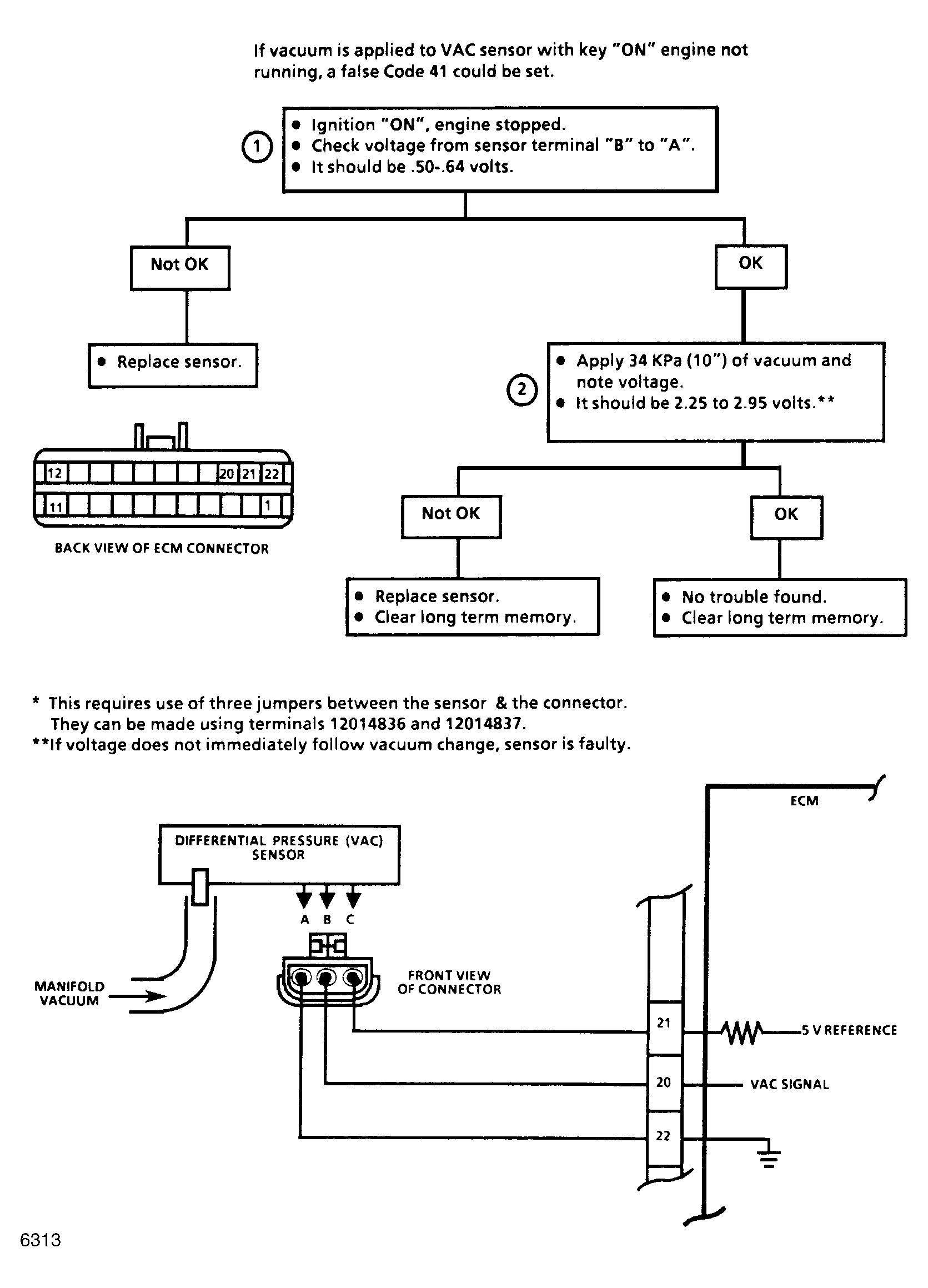

Fig 1: Flow Chart C1E, Differential Pressure Sensor (VAC) Check
Fig 2: Flow Chart C1E, Differential Pressure Sensor (VAC) Check
