Carburetor - STROMBERG 2-Bbl: Overhaul: Disassembly: Body

1. Remove throttle return and 2nd lock spring. Remove "E" clip and remove diaphragm chamber rod from secondary valve shaft. Remove engine control cable bracket bolt and 2 screws on bottom side of body.
2. Remove diaphragm chamber and gasket. Remove slow cut solenoid valve. Remove snap ring in pump well and take out filter and inlet check valve.
   NOTE: Be sure not to score pump bore when removing snap ring.
3. remove main jet plug retainer and remove plug. Remove primary and secondary main jets with packings. Remove primary small venturi and secondary small venturi assembly. Remove main air bleed jets.
4. Remove plug and take put P-slow jet. Remove plug and take out pump injector. Remove plug and take out S-sow jet and S-slow air bleed (2nd). Remove idle up jet. On the flange, remove mixture by-pass solenoid valve and loosen 2 screws and remove TPS.

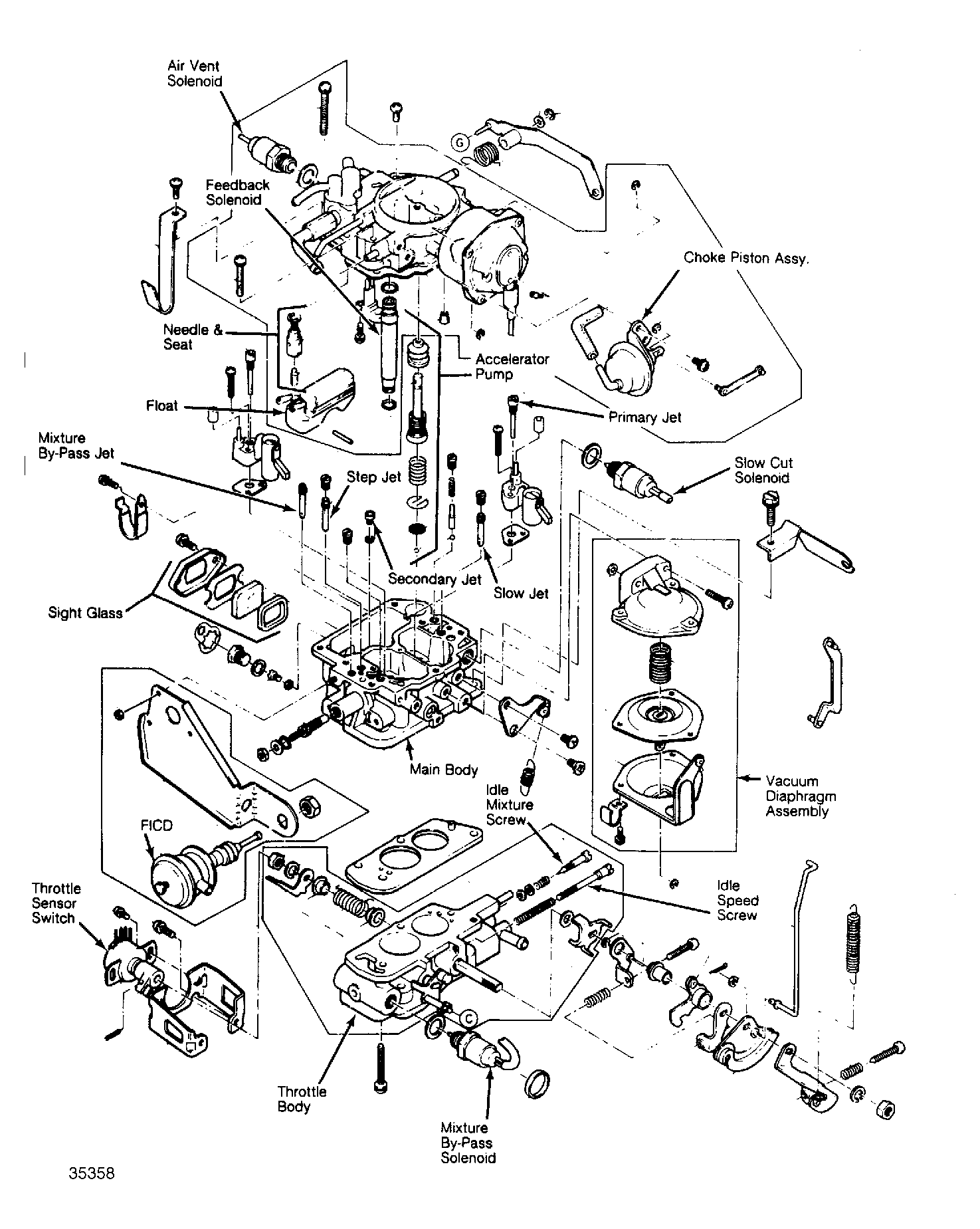

Fig 1: Exploded View of Spectrum Carburetor
