FixVault
Home
›
Chevrolet
›
1986
›
Caprice Base, 5.0 H
›
Repair and Diagnosis
›
Engine Performance
›
System
›
5.7L Feedback Carburetor Tests W/Codes
›
Component Locations
Component Locations

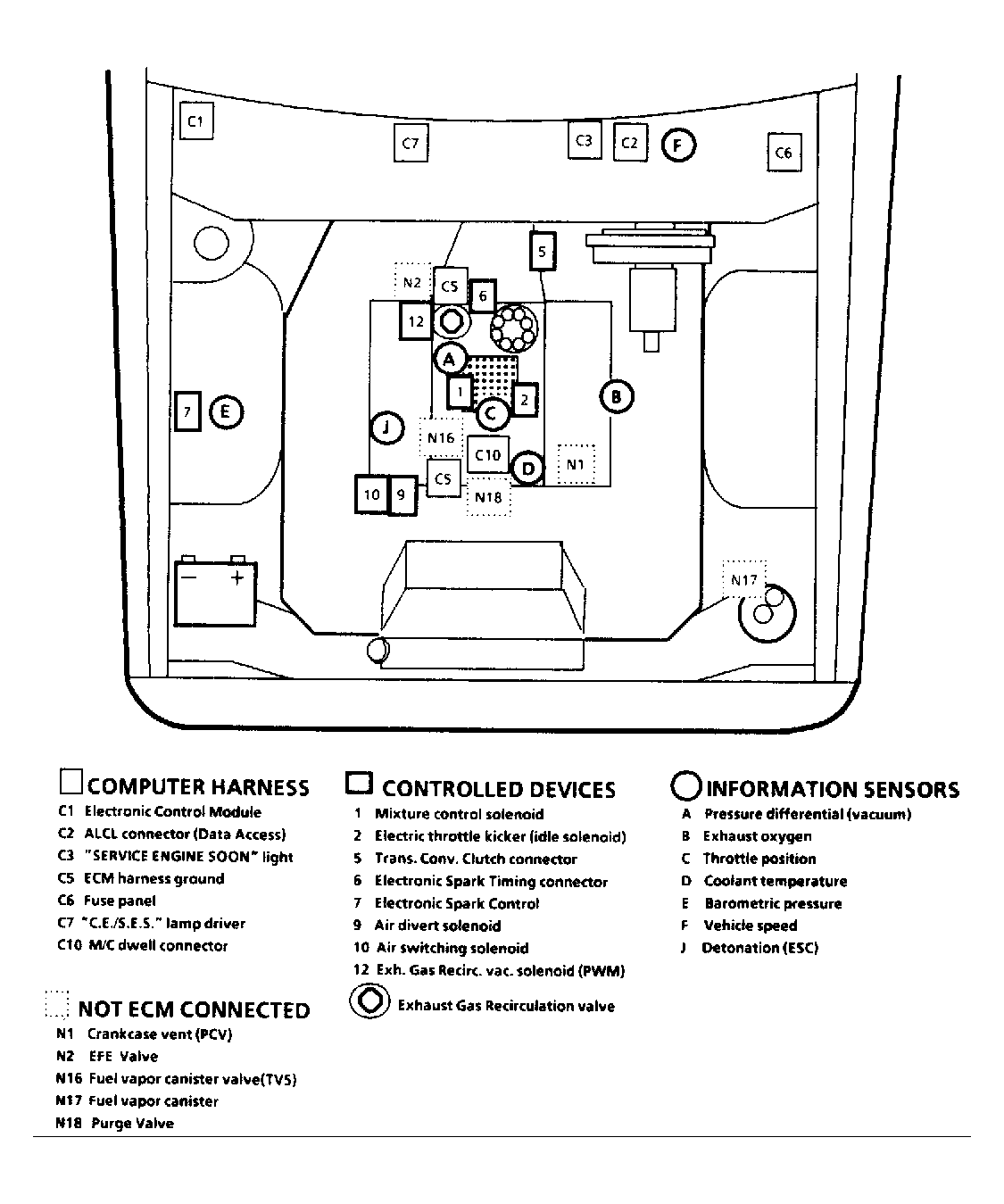

Fig 1: Component Locations (B Body), 5.7L (VIN 6)
