Home › Chevrolet › 1987 › Beretta 2.0 1, Automatic › Repair and Diagnosis › Engine Performance › System › 2.8L PFI Tests W/Codes › Component Locations

Component Locations

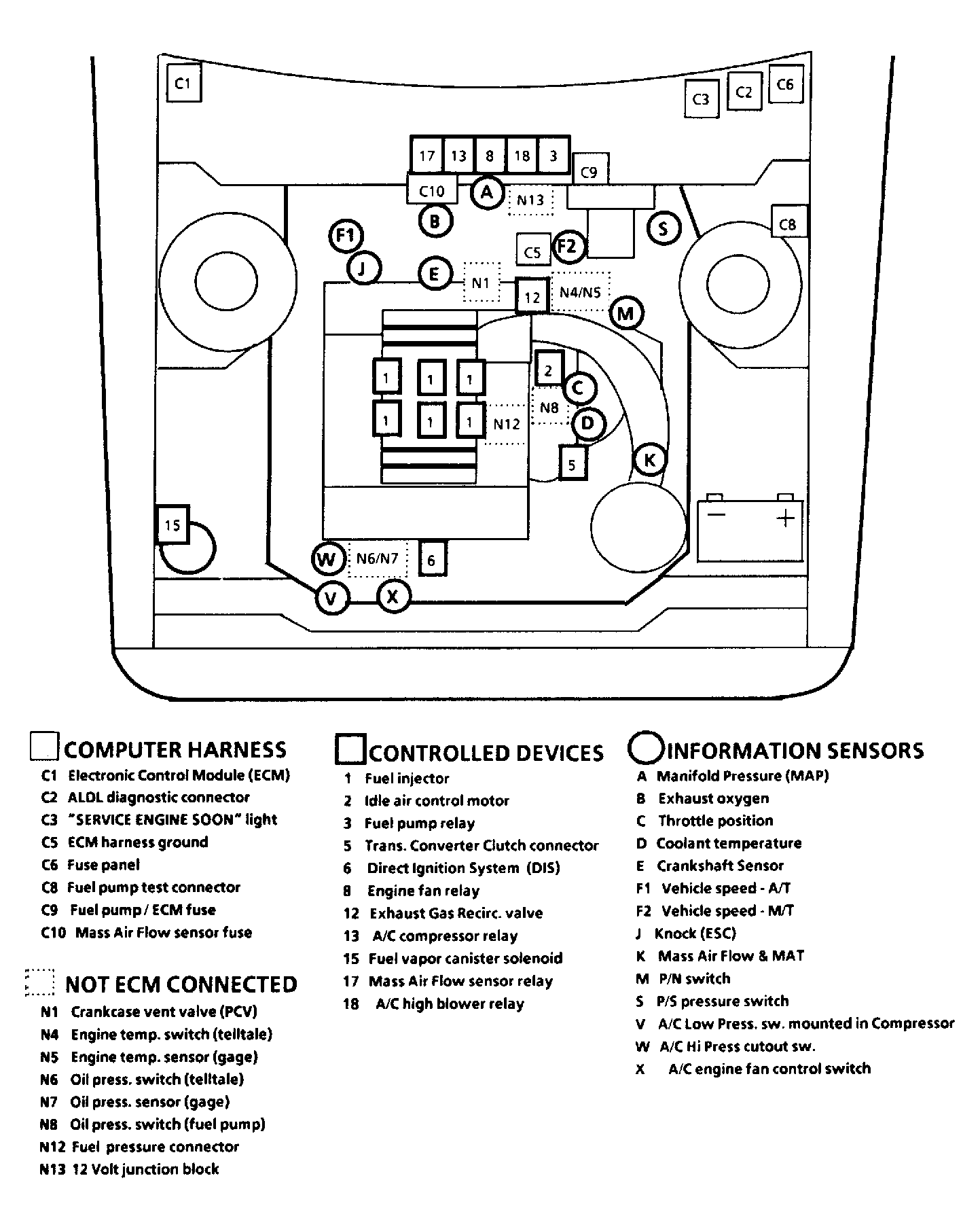

Fig 1: Component Locations (Early Production)
G56763

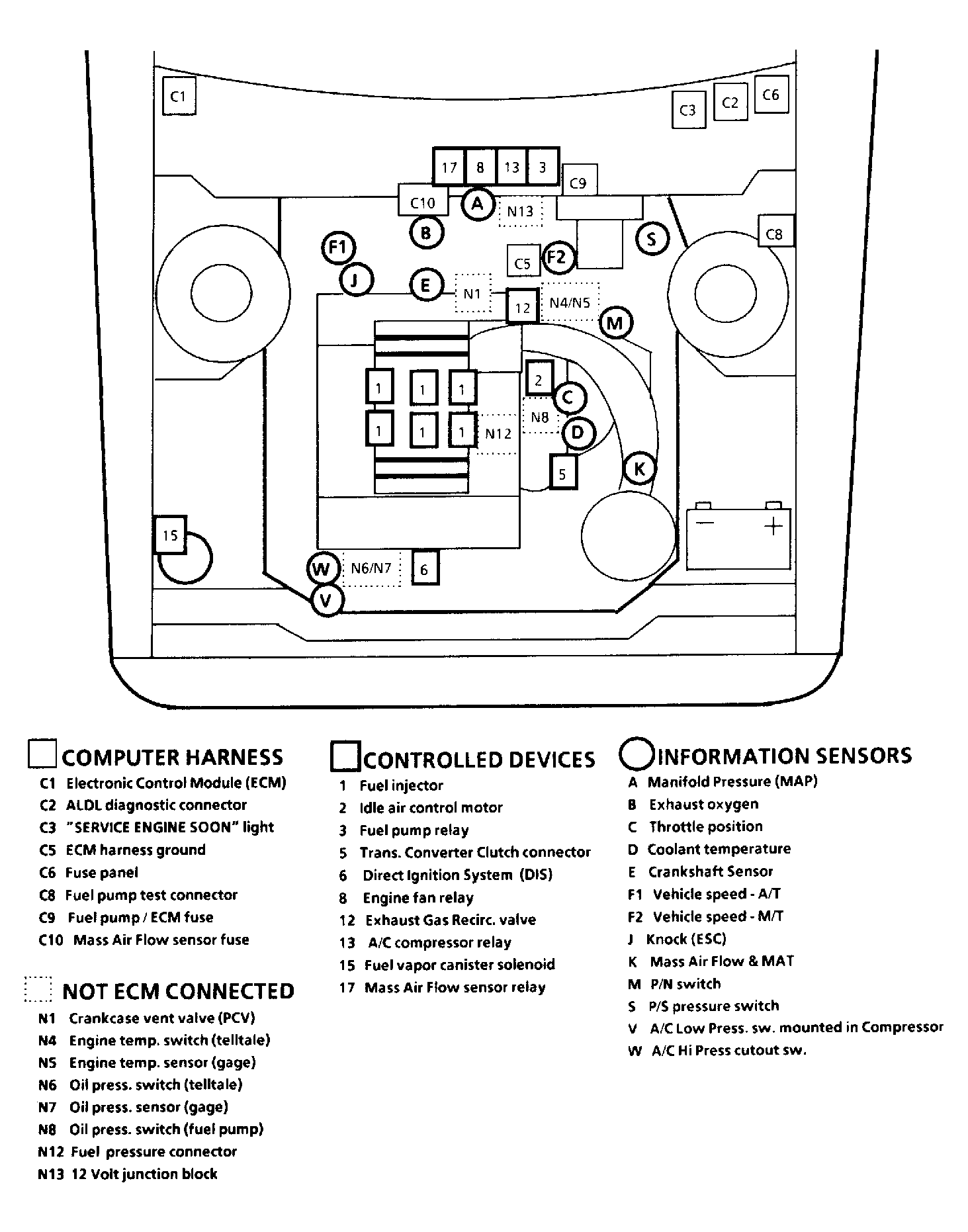

Fig 2: Component Locations (Late Production)
G56764
