ECM Terminal Identification

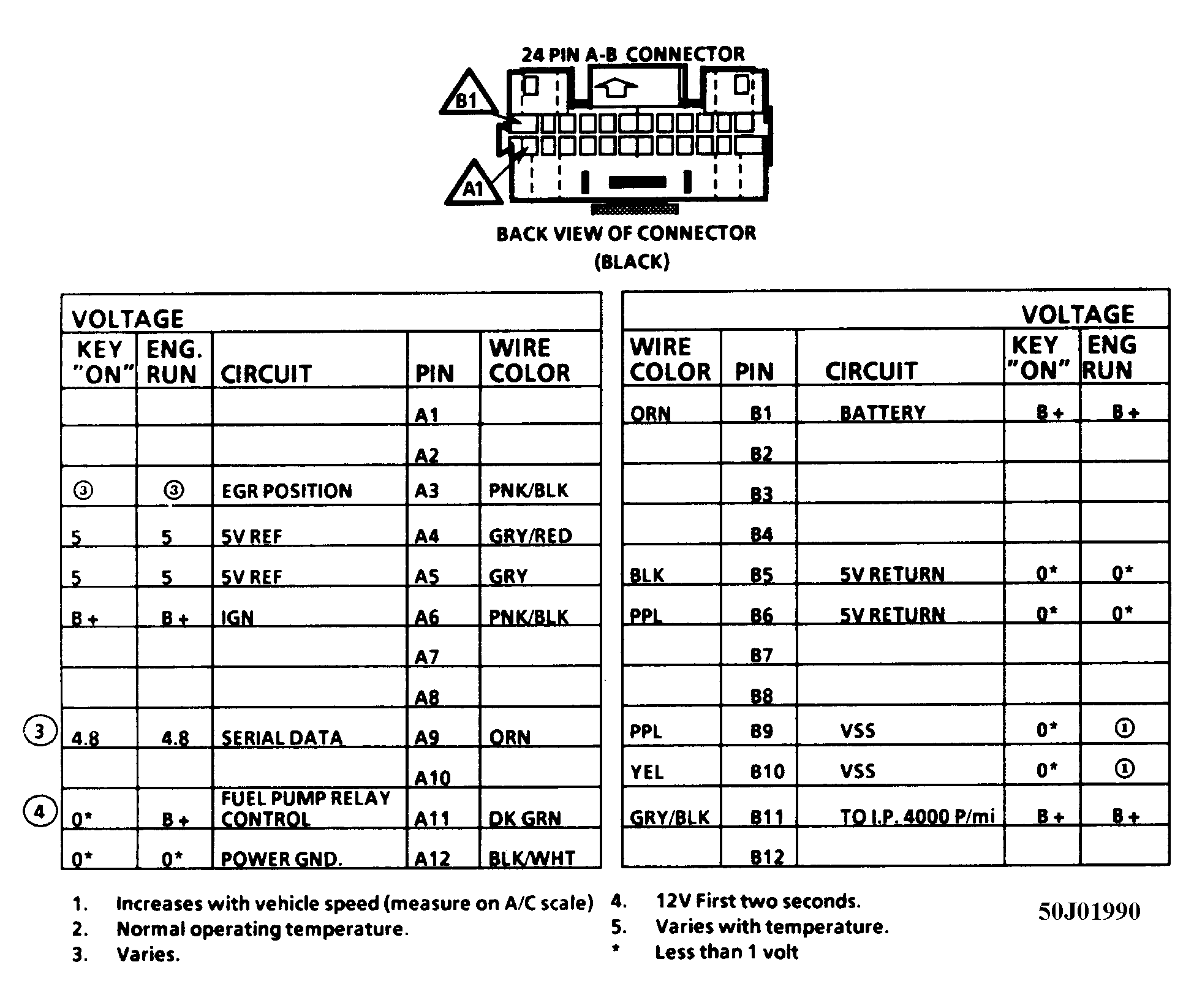

Fig 1: ECM Terminal Id (24 Pin A-B) (Early Production)

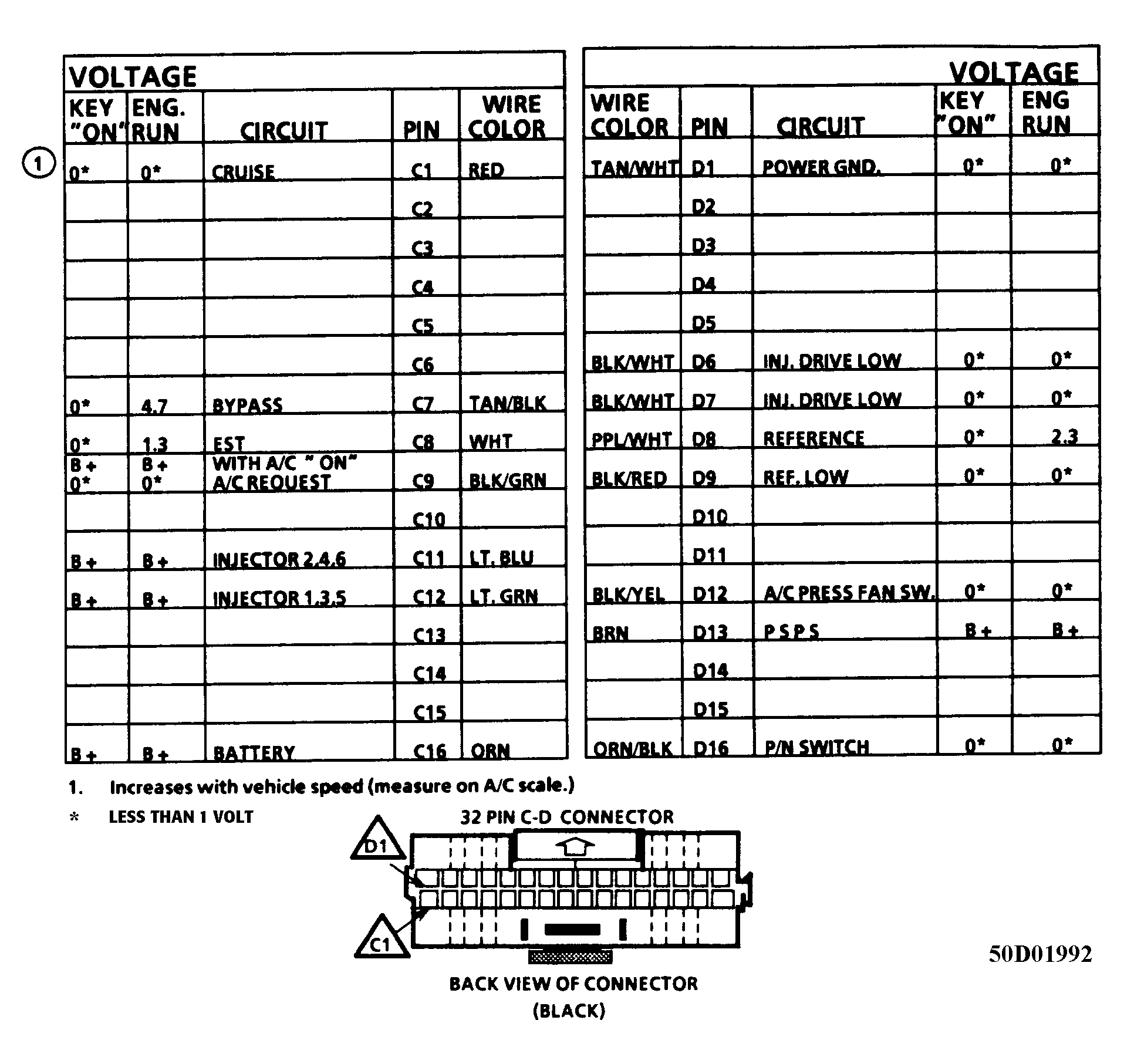

Fig 2: ECM Terminal Id (32 Pin C-D) (Early Production)

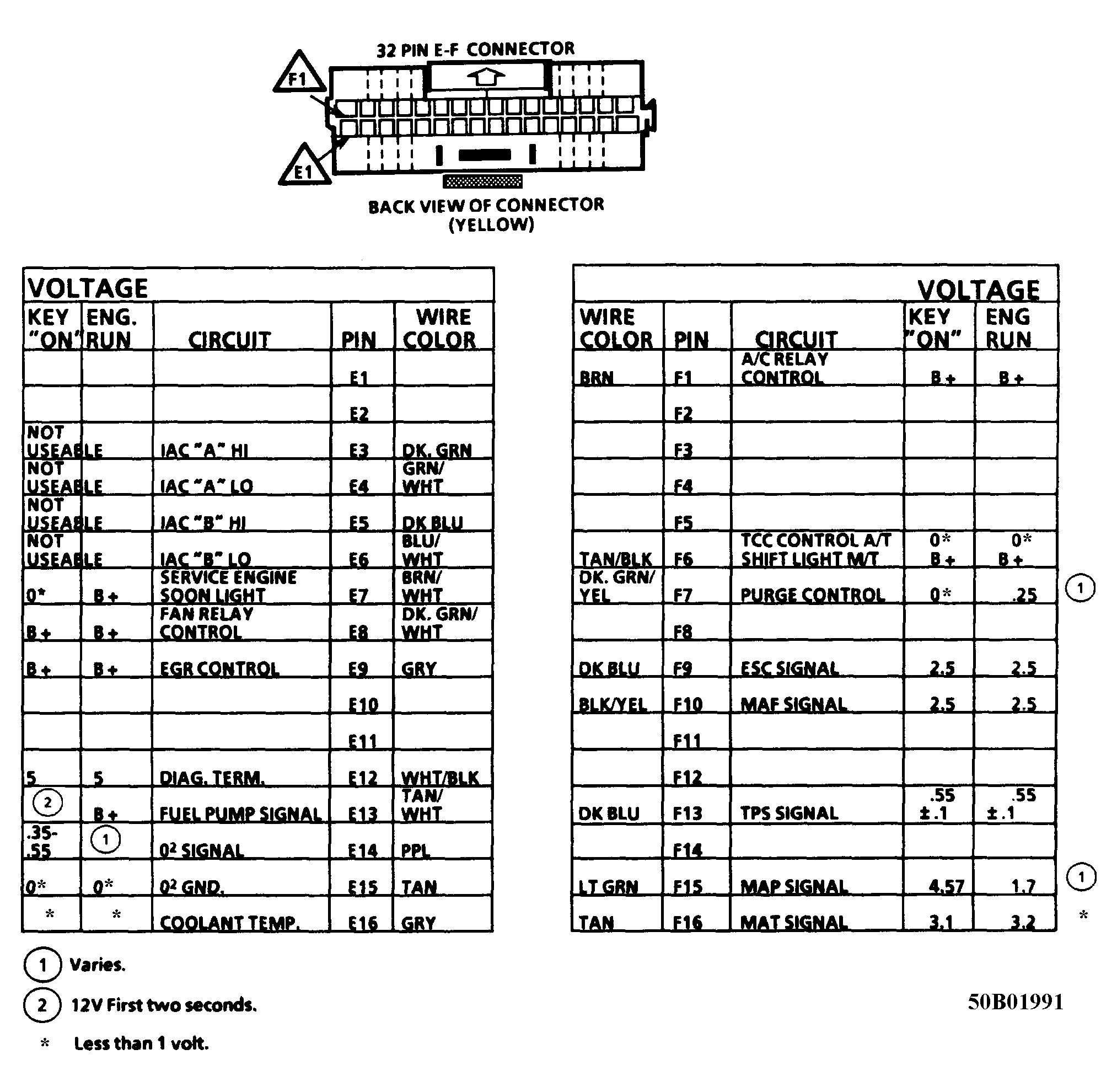

Fig 3: ECM Terminal Id (32 Pin E-F) (Early Production)

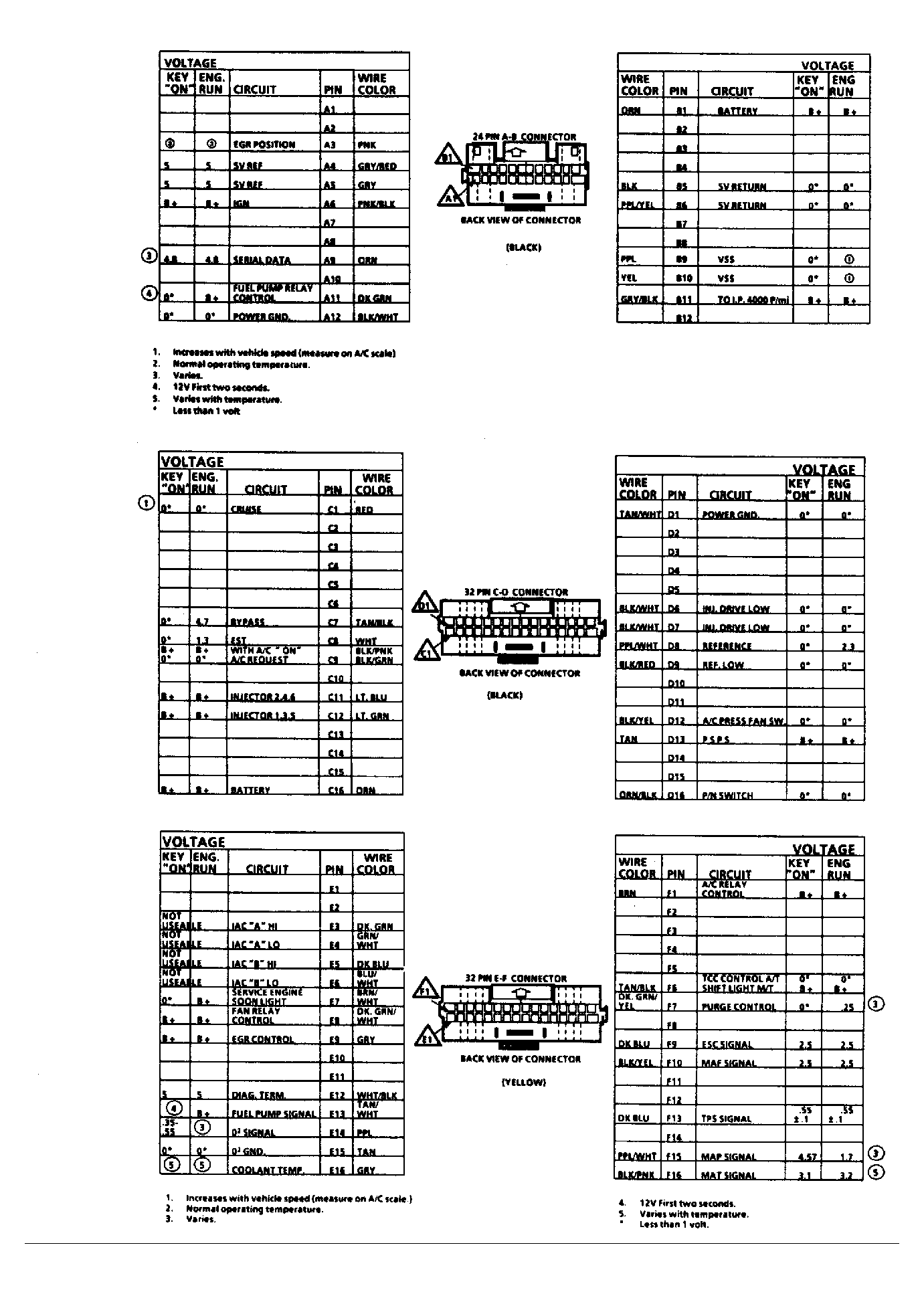

Fig 4: ECM Terminal Identification (Late Production)
