Repair and Diagnosis
›
Engine Performance
›
System
›
Feedback Carburetor Tests W/Codes
›
Component Locations
Component Locations

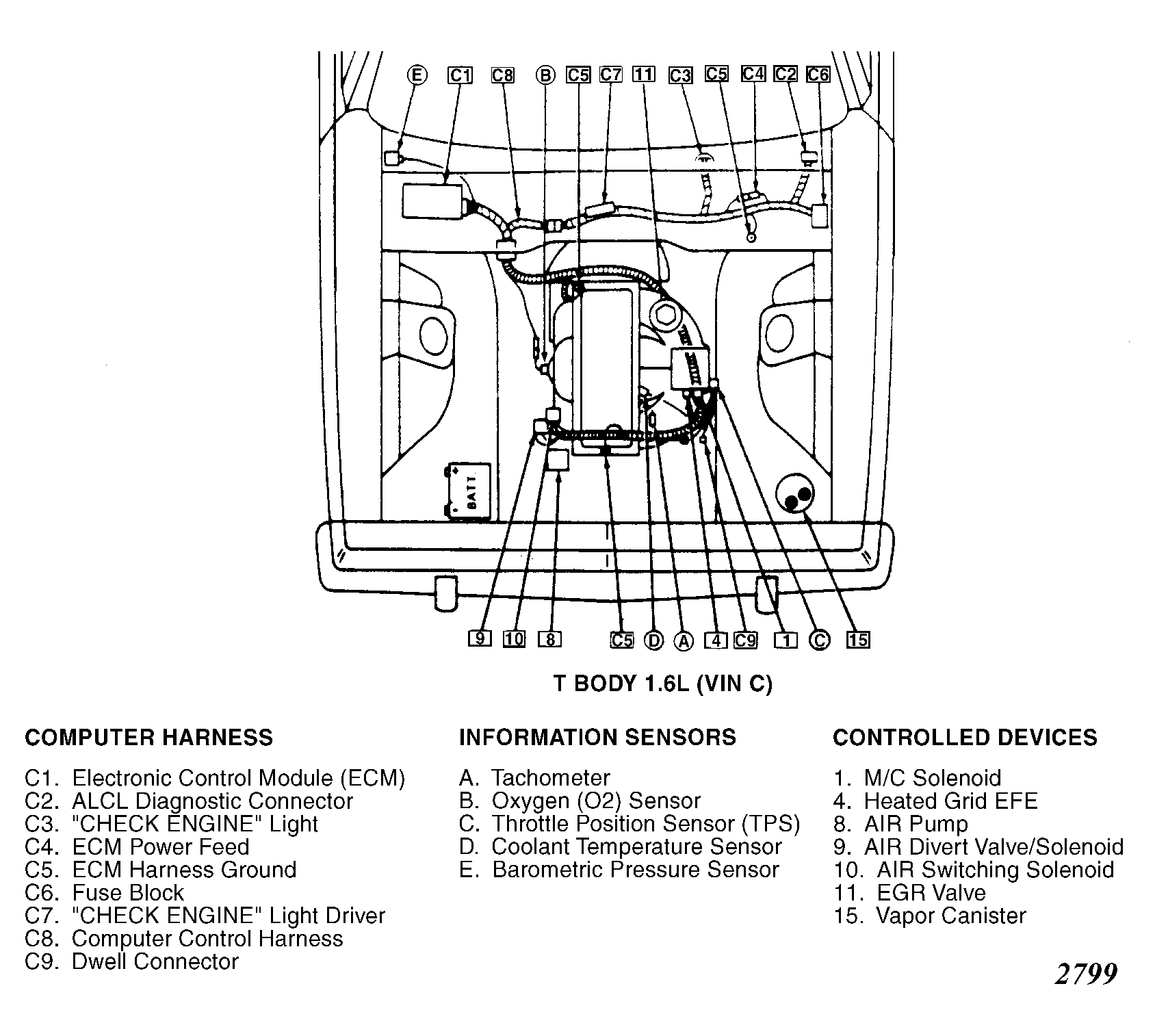

Fig 1: Component Locations For 1.6L Engines
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
