Feedback Carburetor Tests W/Codes
›
ECM Terminal Identification
ECM Terminal Identification

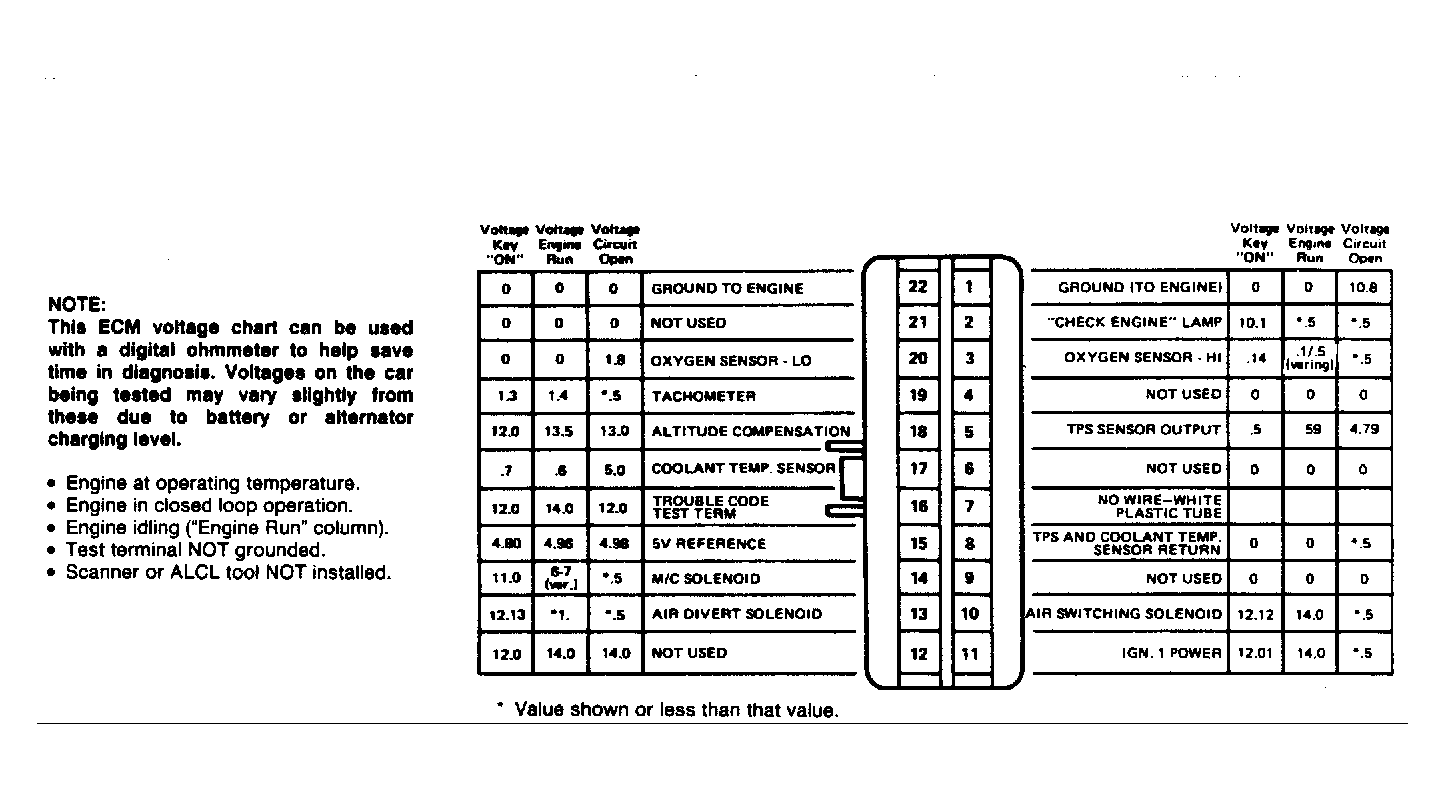

Fig 1: ECM Terminal Identification
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
