Feedback Carburetor Tests W/Codes: Wiring Diagram

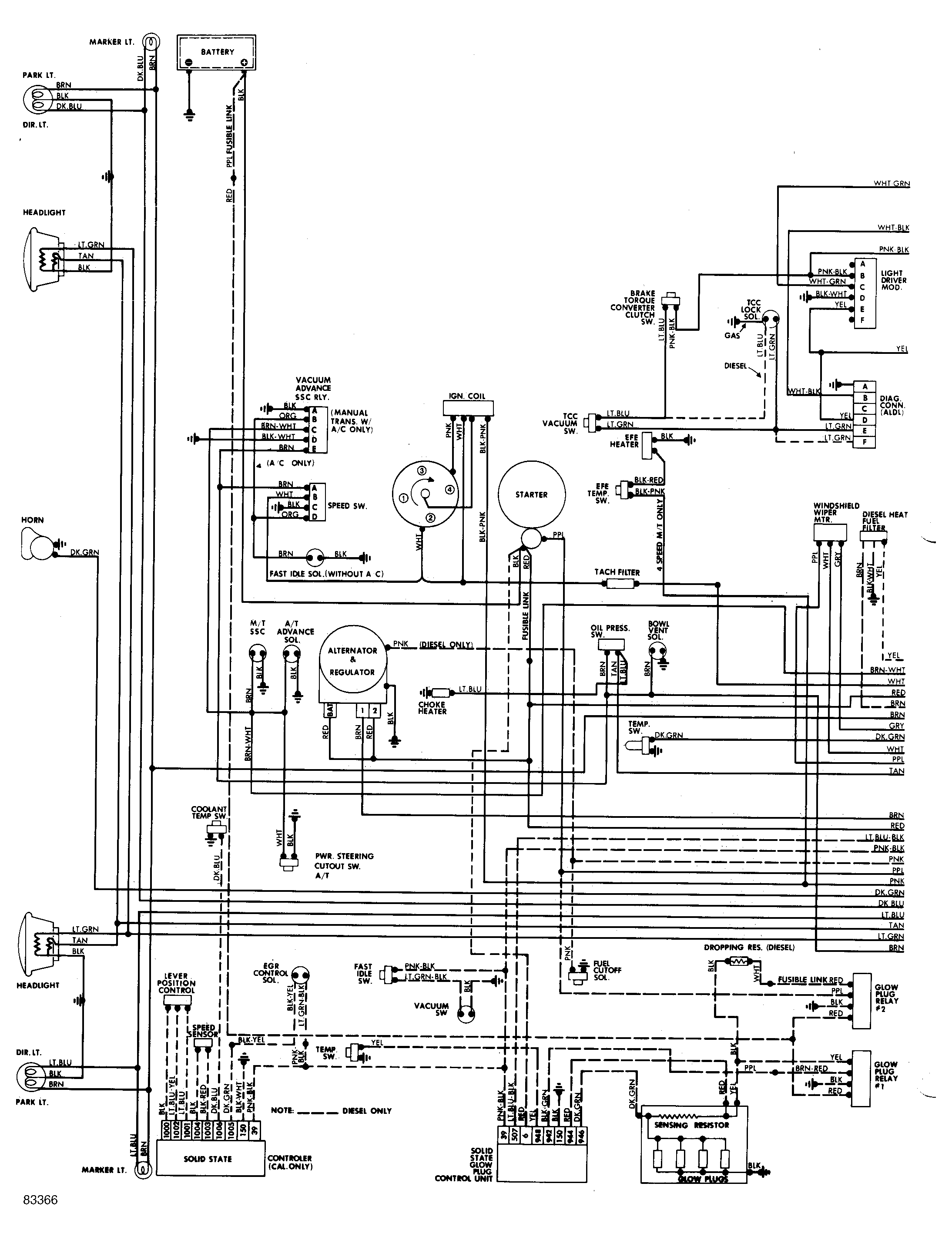

Fig 1: 1985-86 1.6L Minimum Function Wiring Diagram

G83366

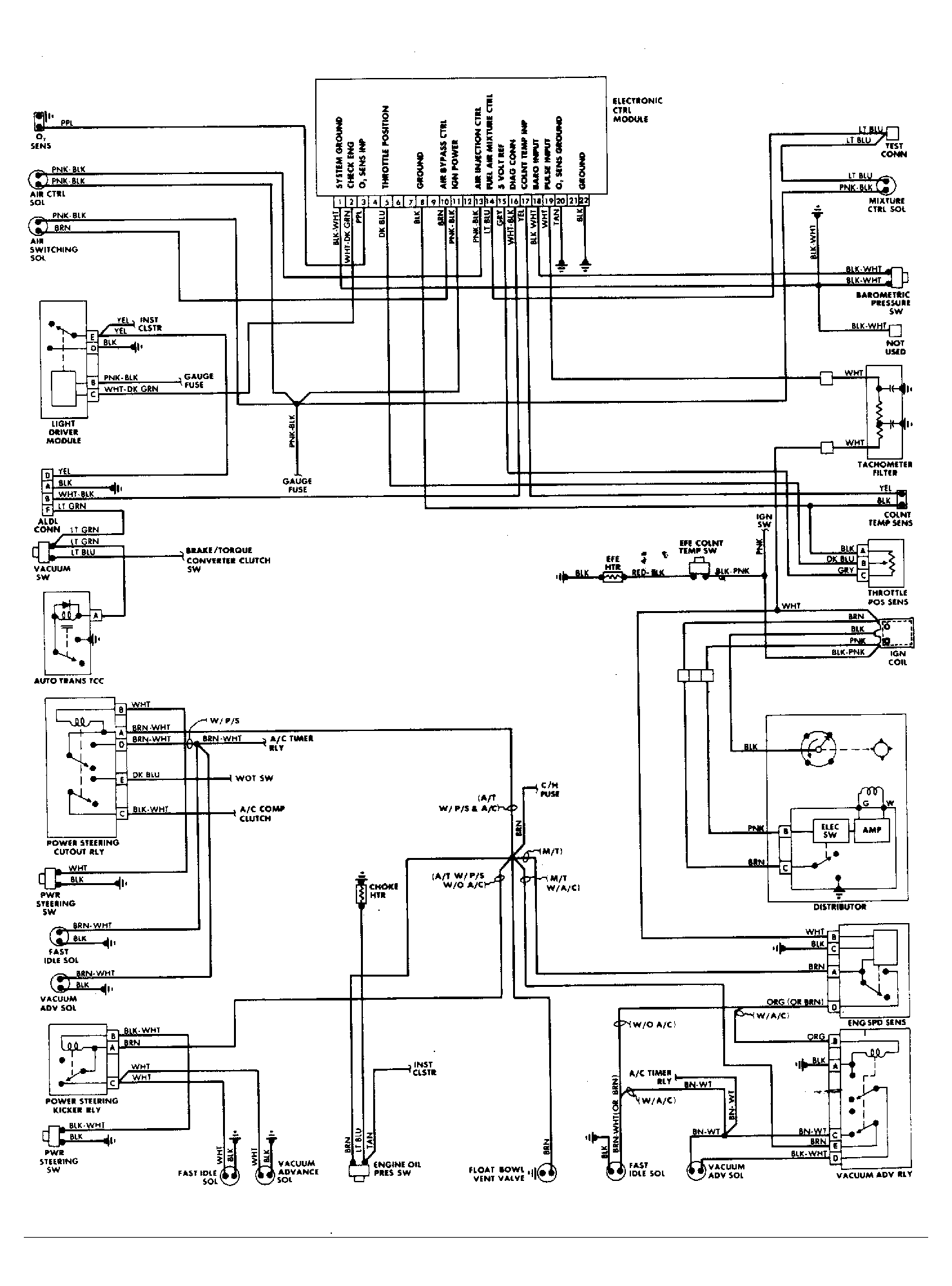

Fig 2: 1987 1.6L Minimum Function Wiring Diagram

G6245
