Wiring Diagrams

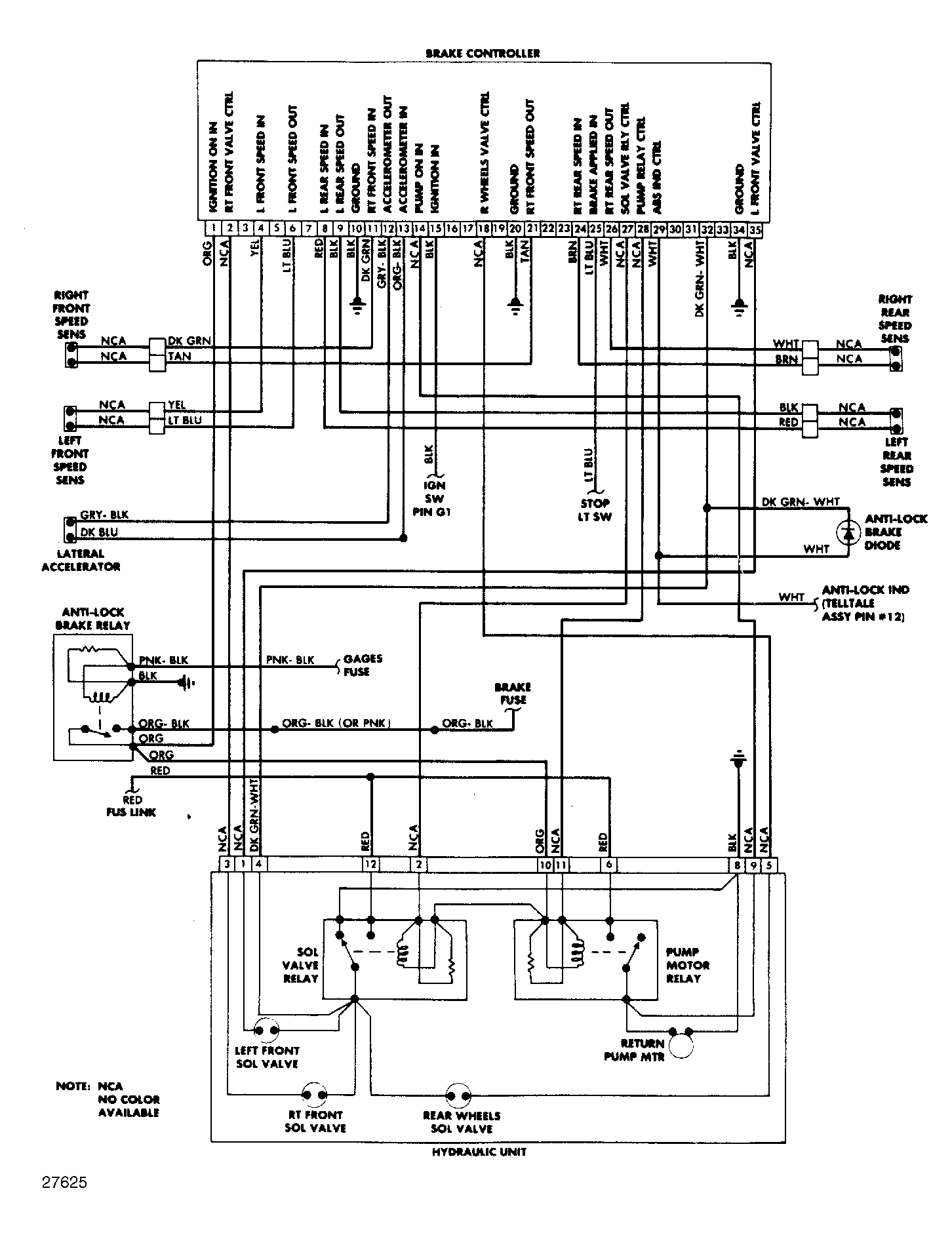

Fig 1: 1986 Anti-Lock Brake System Wiring Diagram
G27625Courtesy of GENERAL MOTORS CORP.

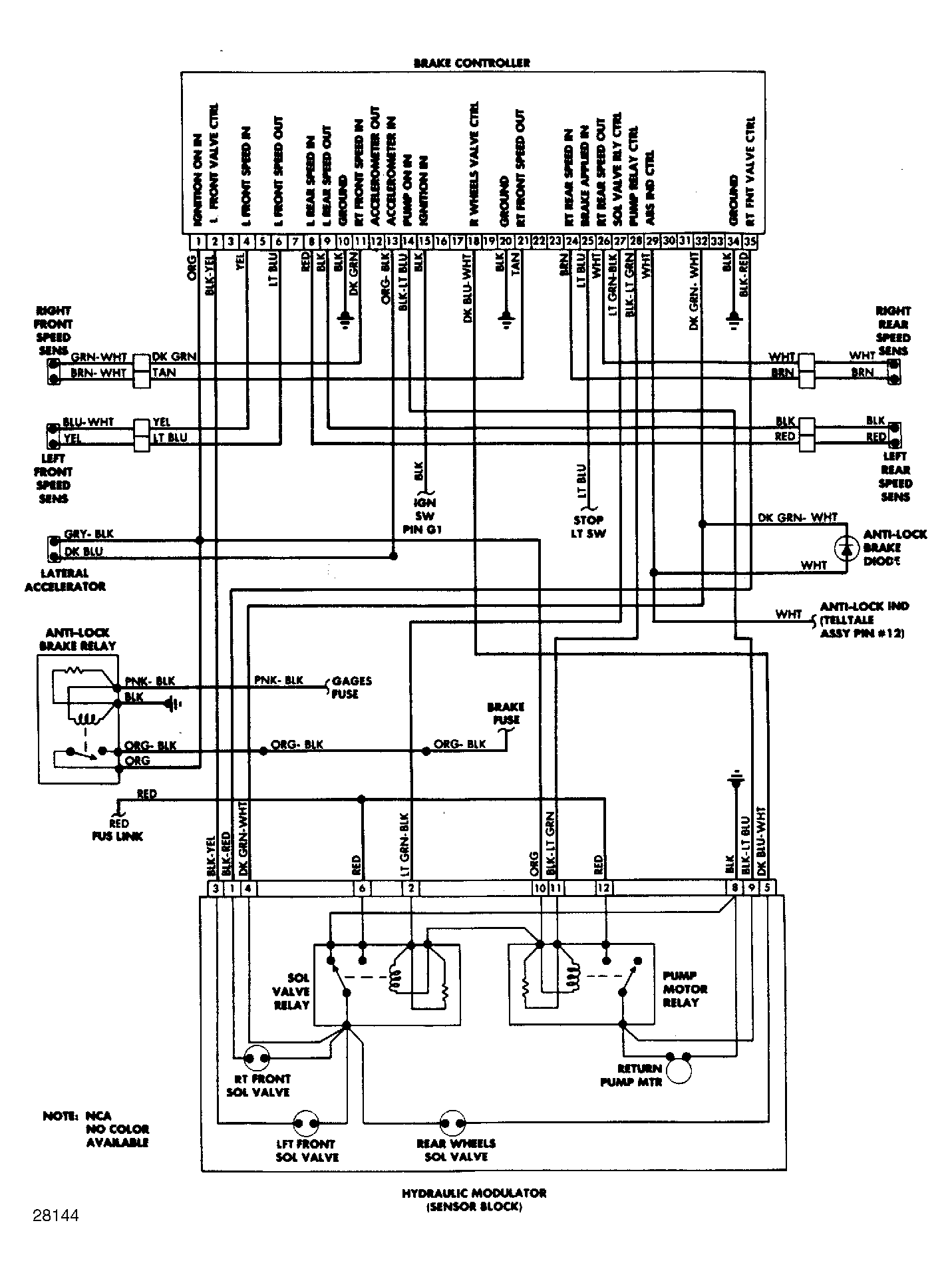

Fig 2: 1987 Anti-Lock Brake System Wiring Diagram
G28144Courtesy of GENERAL MOTORS CORP.

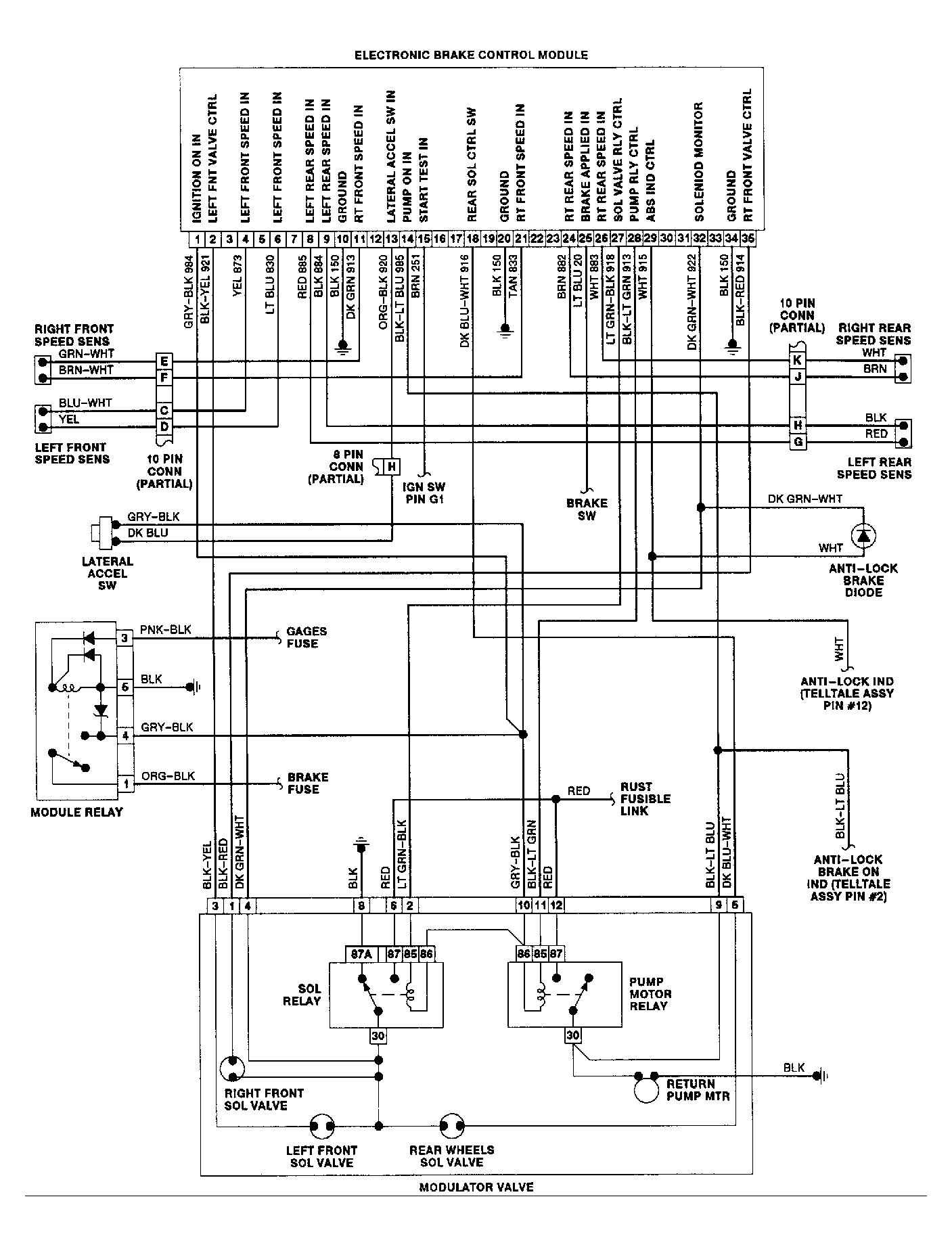

Fig 3: 1988-89 Anti-Lock Brake System Wiring Diagram
G109746Courtesy of GENERAL MOTORS CORP.
