Fuse Panel Identification (1985-86): Notes

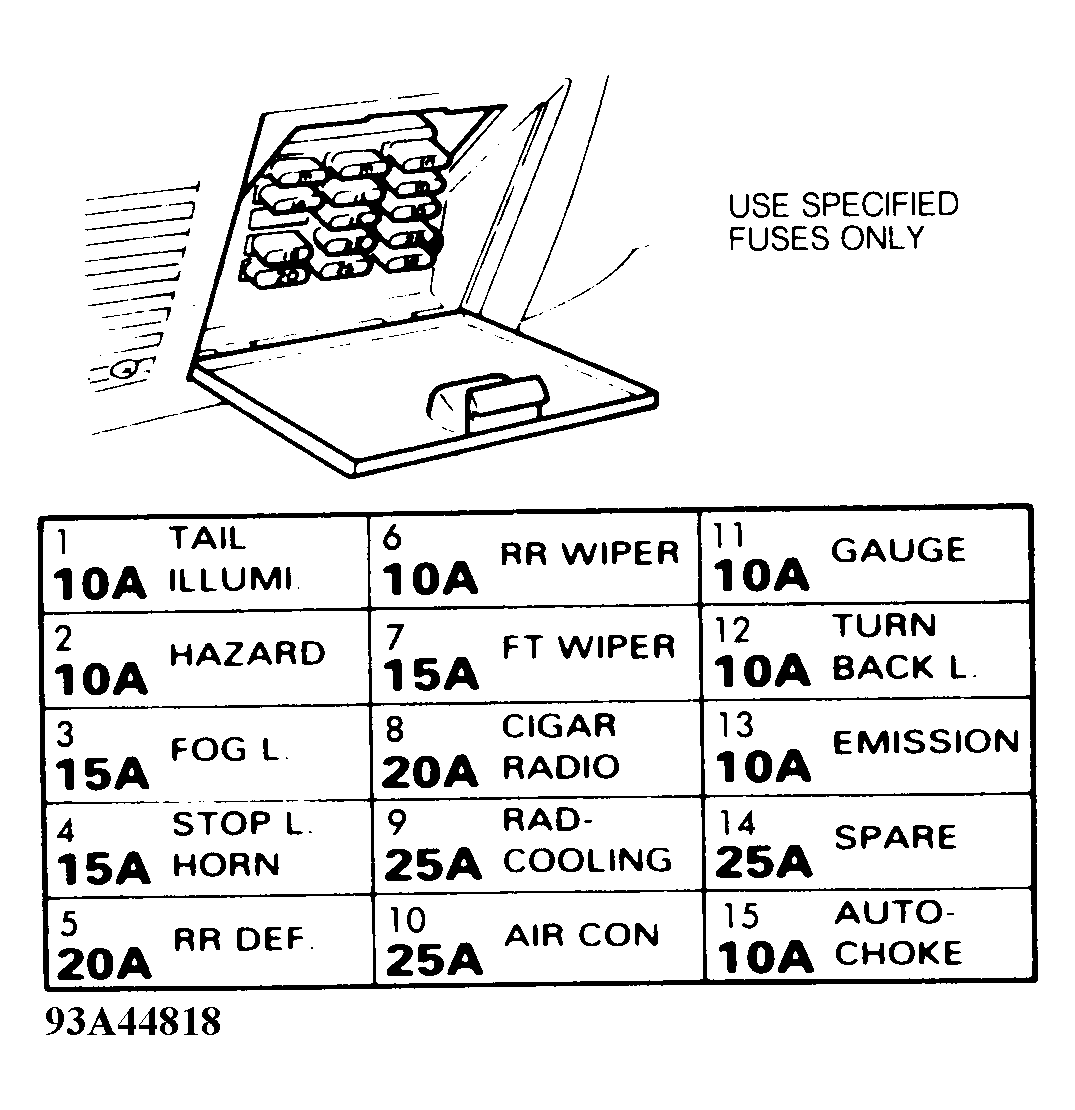

Fig 1: Fuse Panel Identification (1985-86)
G93A44818Courtesy of GENERAL MOTORS CORP.
