With Tachometer

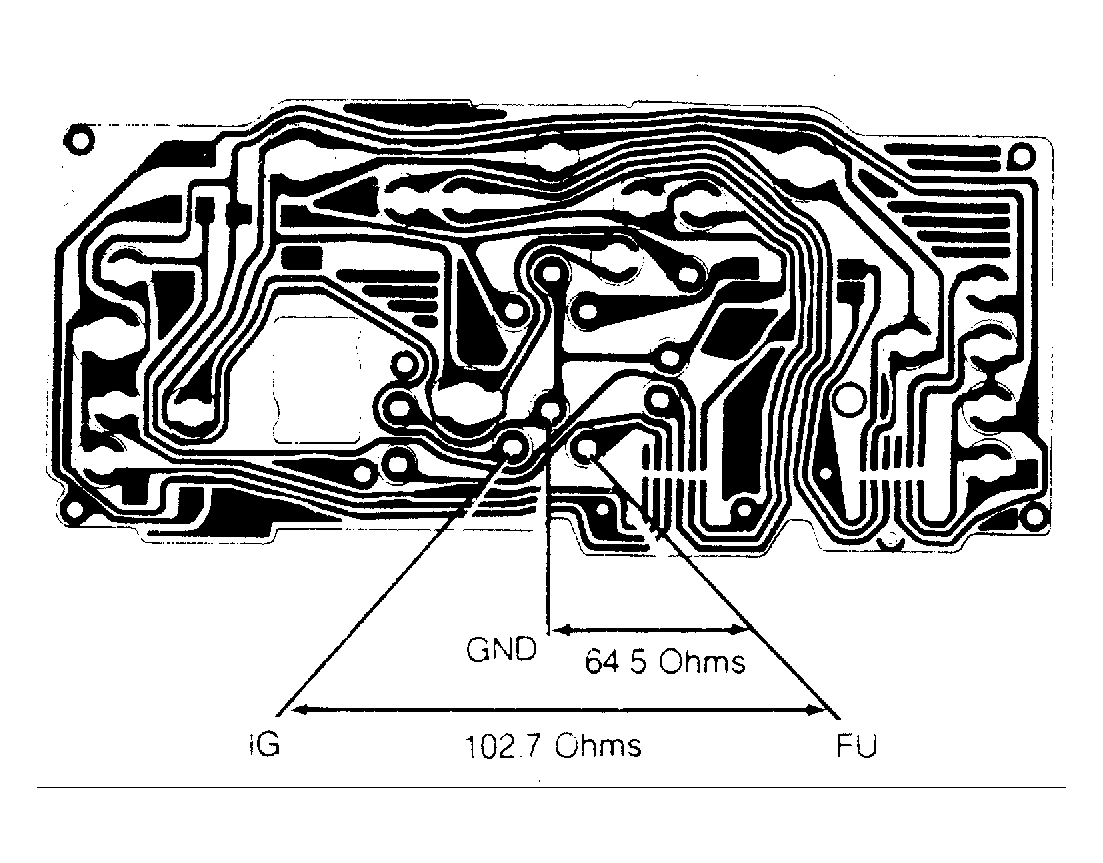

Measure resistance between "IG" and "FU" terminals. Resistance should be about 102.7 ohms. Measure resistance between "FU" and "GND" terminals. Resistance should be about 64.5 ohms. See Fig 1 .
Measure resistance between "IG" and "FU" terminals. Resistance should be about 102.7 ohms. Measure resistance between "FU" and "GND" terminals. Resistance should be about 64.5 ohms. See Fig 1 .
