FixVault
Home
›
Chevrolet
›
1987
›
Spectrum Express
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Feedback Carburetor System
›
Diagnosis & Testing
›
Trouble Code 25
Trouble Code 25

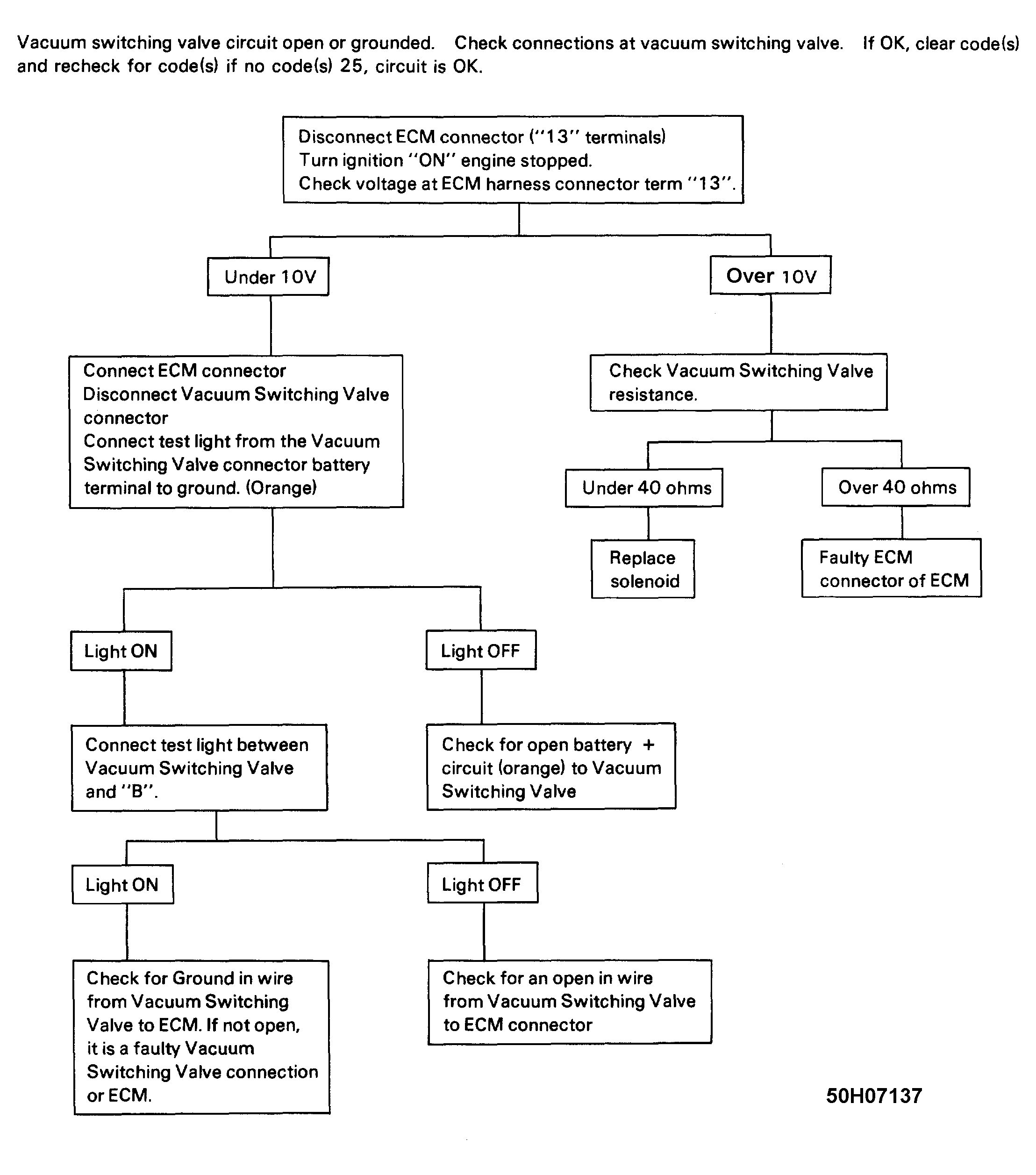

Fig 1: Trouble Code 25, Flow Chart
Fig 2: Trouble Code 25, Schematic
