Feedback Carburetor System
›
Wiring Diagrams
Wiring Diagrams

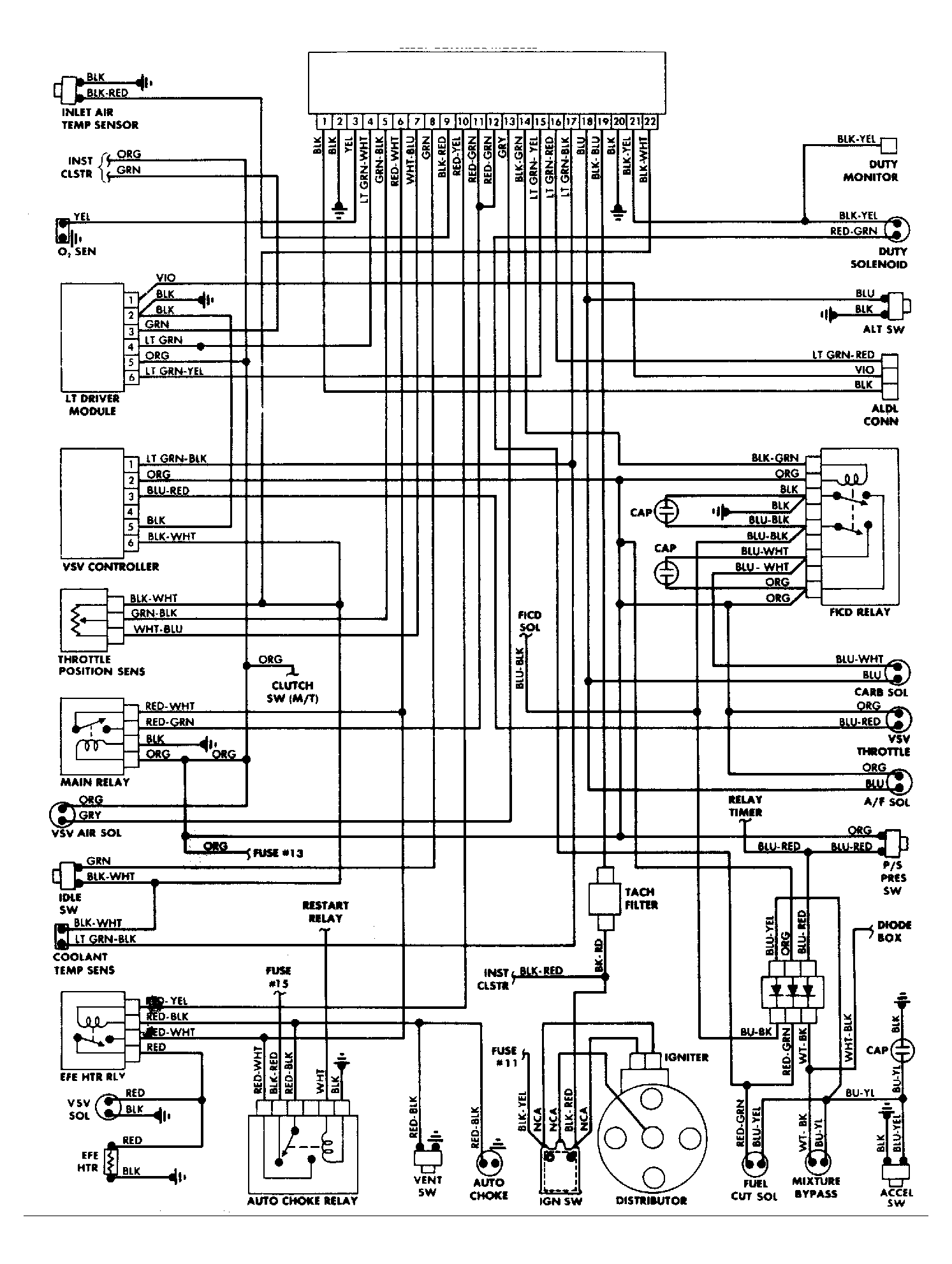

Fig 1: Chevrolet Spectrum Feedback System Wiring Diagram
