Wiring Diagrams

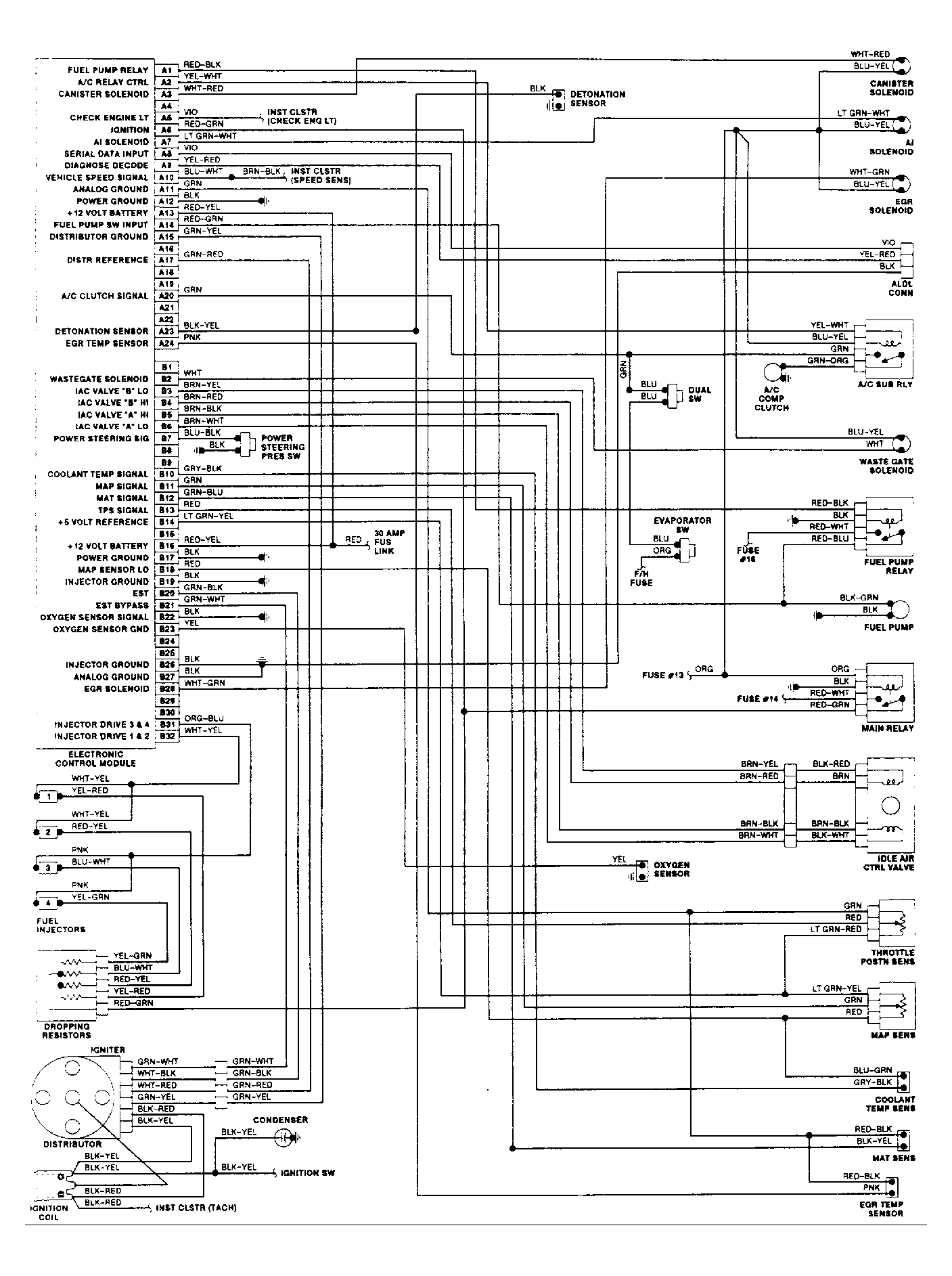

Fig 1: Spectrum 1.5L EFI Turbo Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
