System Diagrams: DAIHATSU

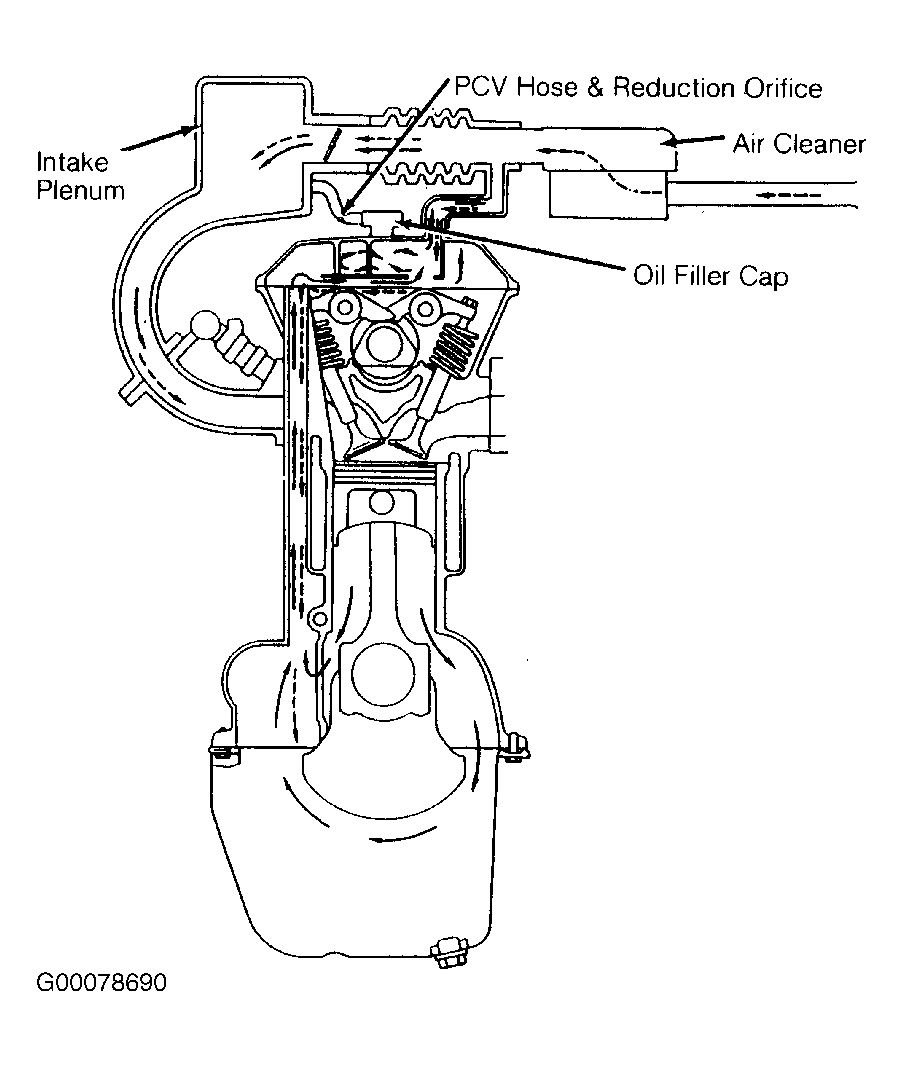

Fig 1: Crankcase Ventilation System (Daihatsu)

G00078690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
