Component Location

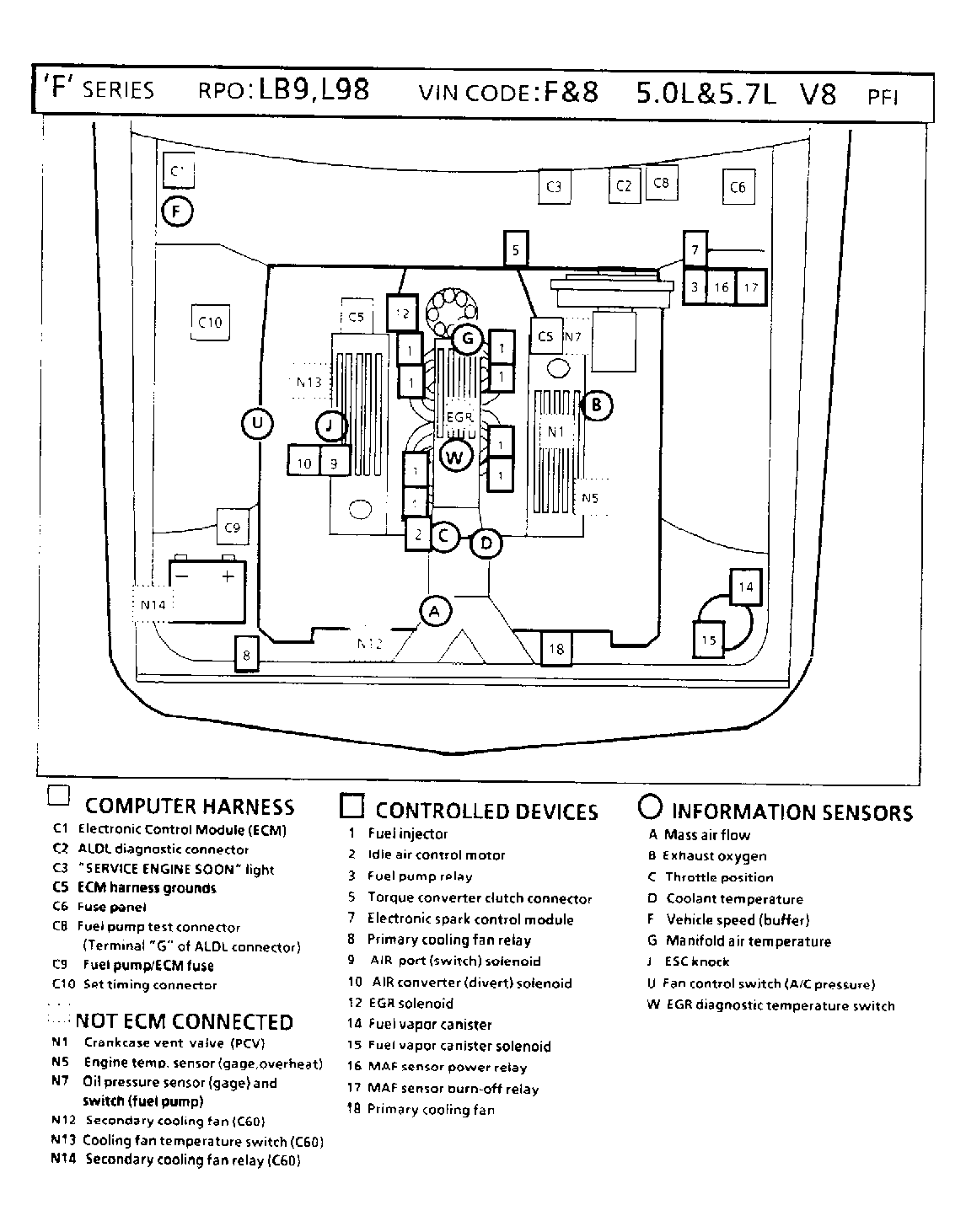

Fig 1: Component Location Camaro (5.0L & 5.7L)
G111033Courtesy of GENERAL MOTORS CORP.

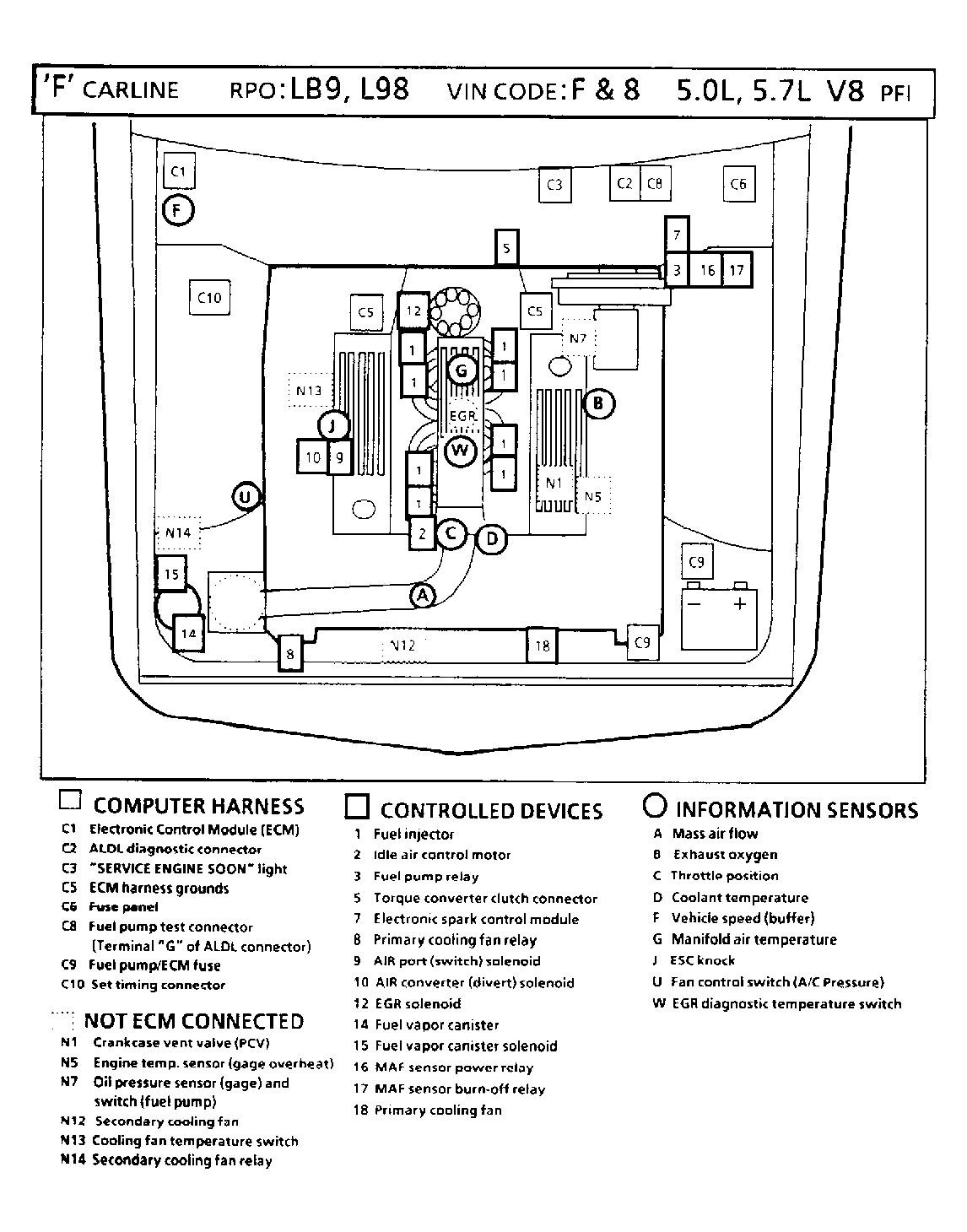

Fig 2: Component Location Firebird (5.0L & 5.7L)
G111034Courtesy of GENERAL MOTORS CORP.

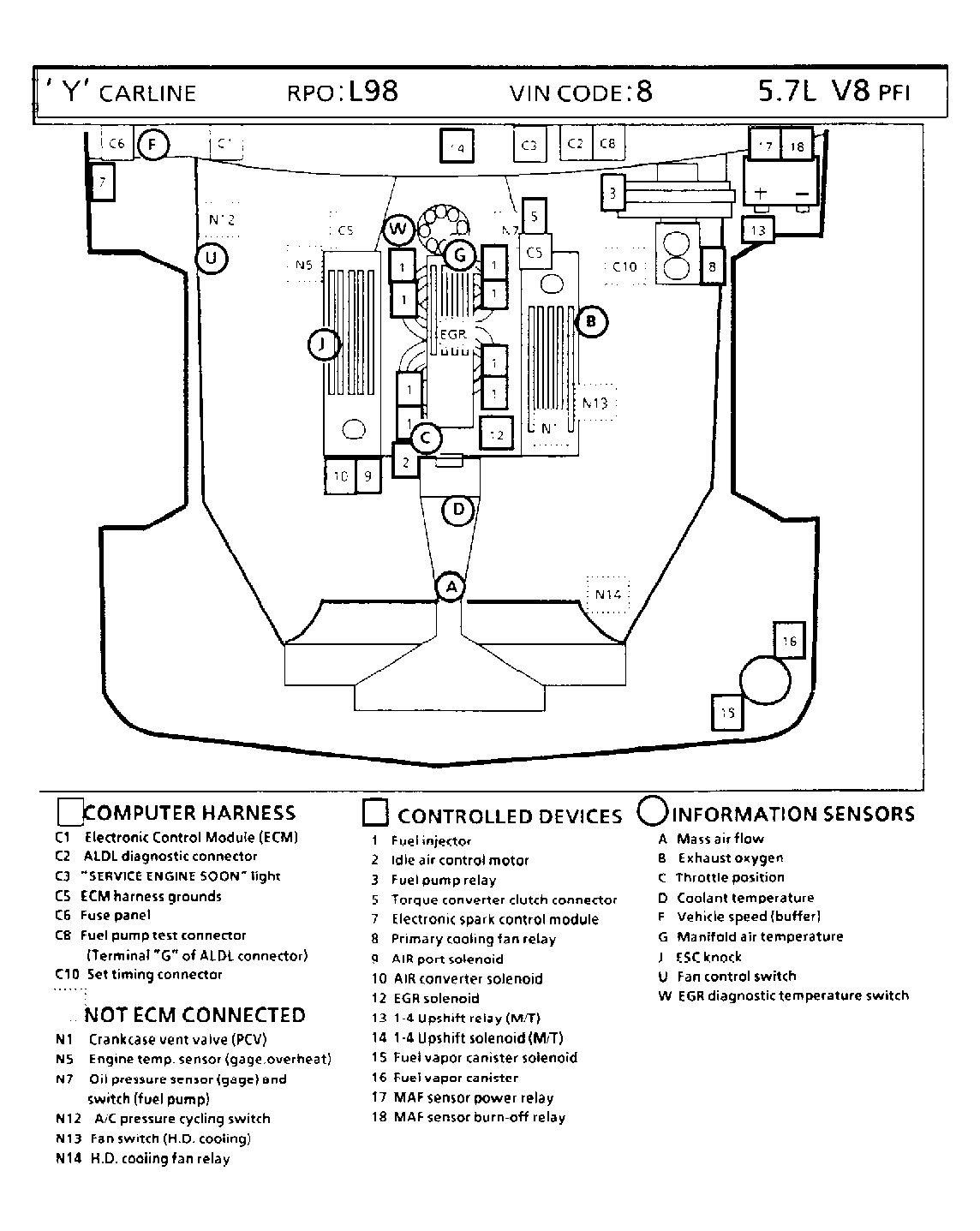

Fig 3: Component Location Corvette (5.7L)
G111035Courtesy of GENERAL MOTORS CORP.
