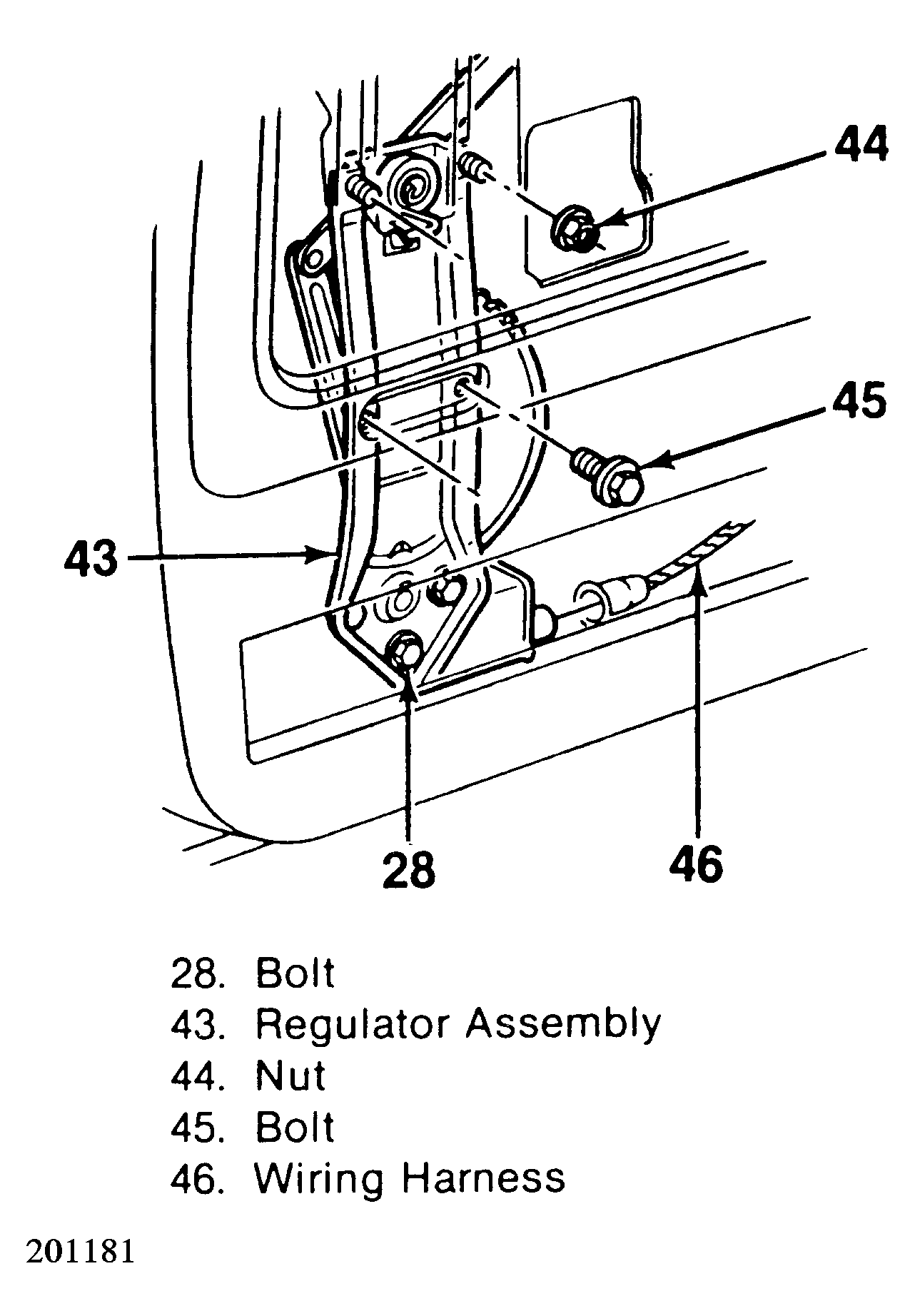

Window Regulator & Motor: Installation
Fasten motor regulator with 3/16" rivets using Riveter (J-29022). Lubricate motor drive gear and regulator sector teeth. Ensure that motor pinion gear teeth mesh properly with sector gear. Remove screw locking sector gear. To complete installation, reverse removal procedure.
