Intermediate Servo: Disassembly

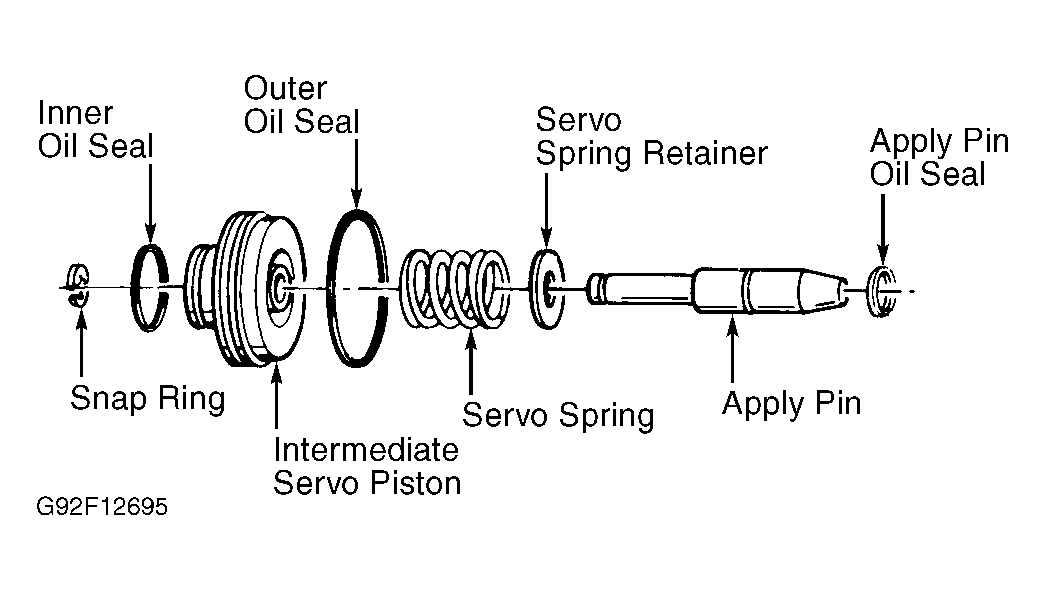

Remove snap ring from apply pin (if not previously done). Separate intermediate servo piston, spring retainer and apply pin. Remove and discard "O" ring seals. See Figure . Check all parts for wear or damage.
Remove snap ring from apply pin (if not previously done). Separate intermediate servo piston, spring retainer and apply pin. Remove and discard "O" ring seals. See Figure . Check all parts for wear or damage.
