Connector Identification

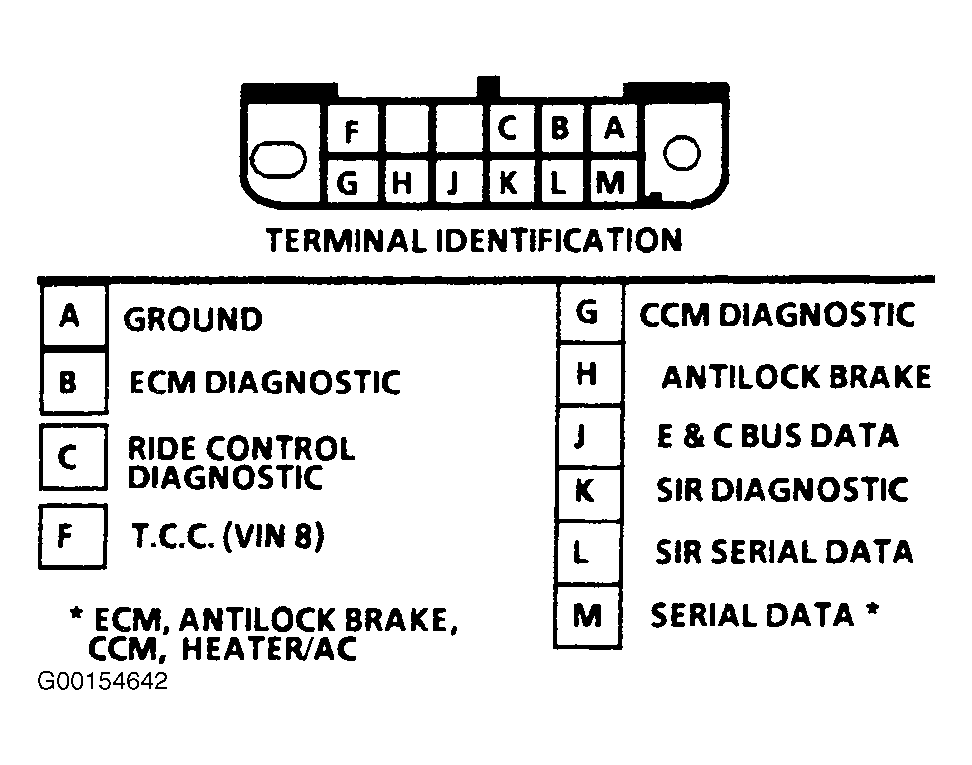

Fig 1: Identifying ALDL Connector Terminals
G00154642Courtesy of GENERAL MOTORS CORP.
