Central Control Module: Wiring Diagram

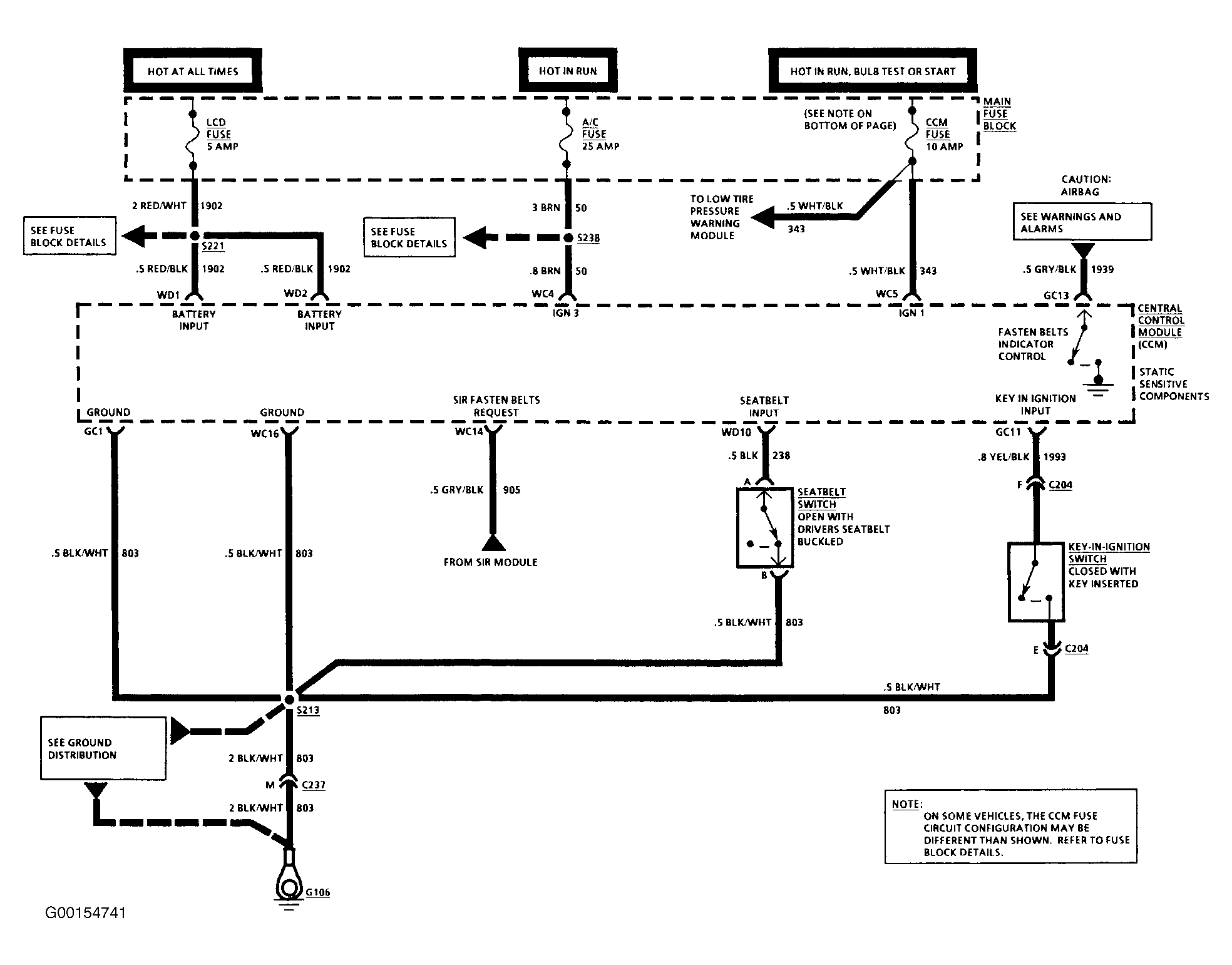

Fig 1: Central Control Module (CCM) Overview Wiring Diagram - 1990 Corvette

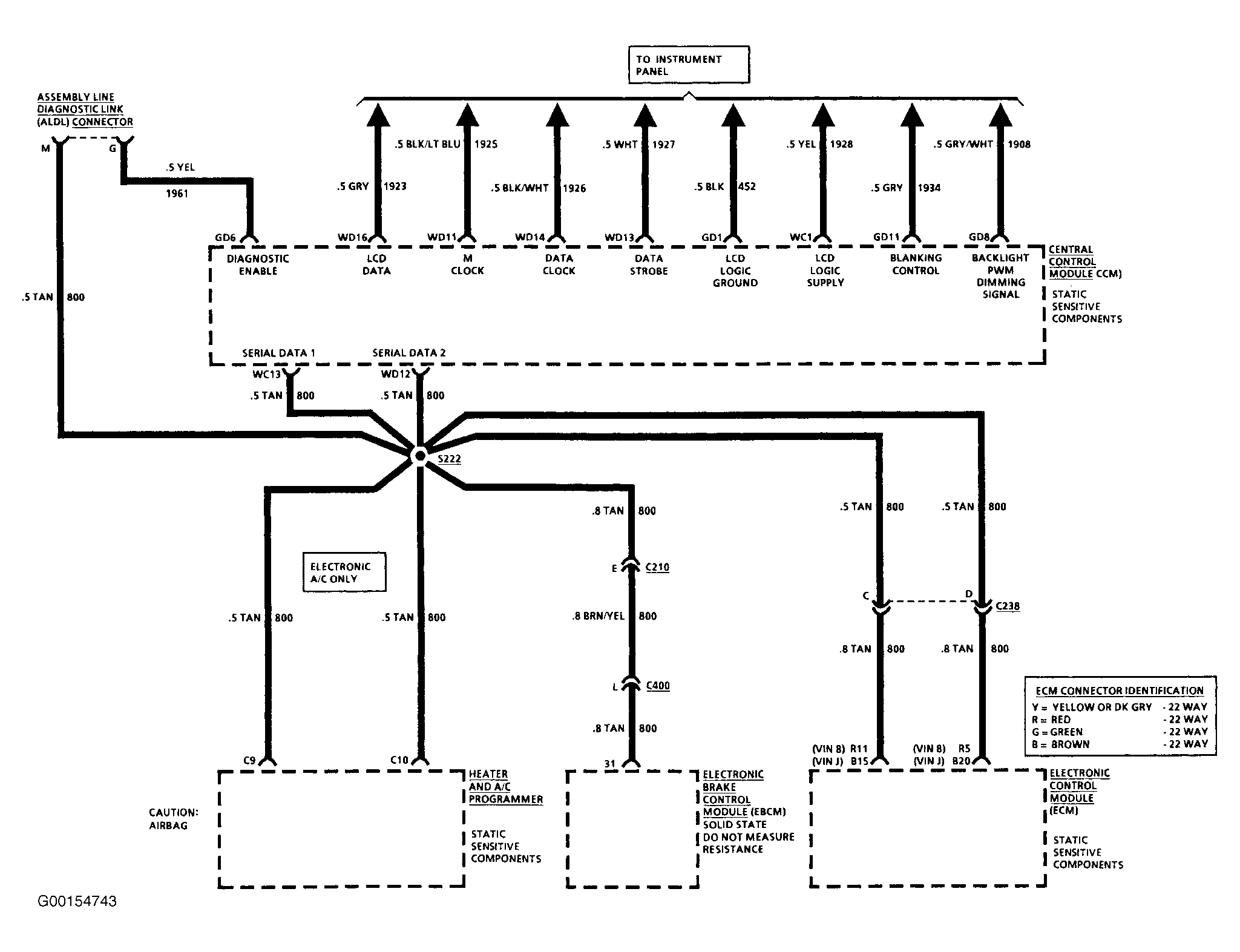

Fig 2: CCM Wiring Diagram - 1990 Corvette (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

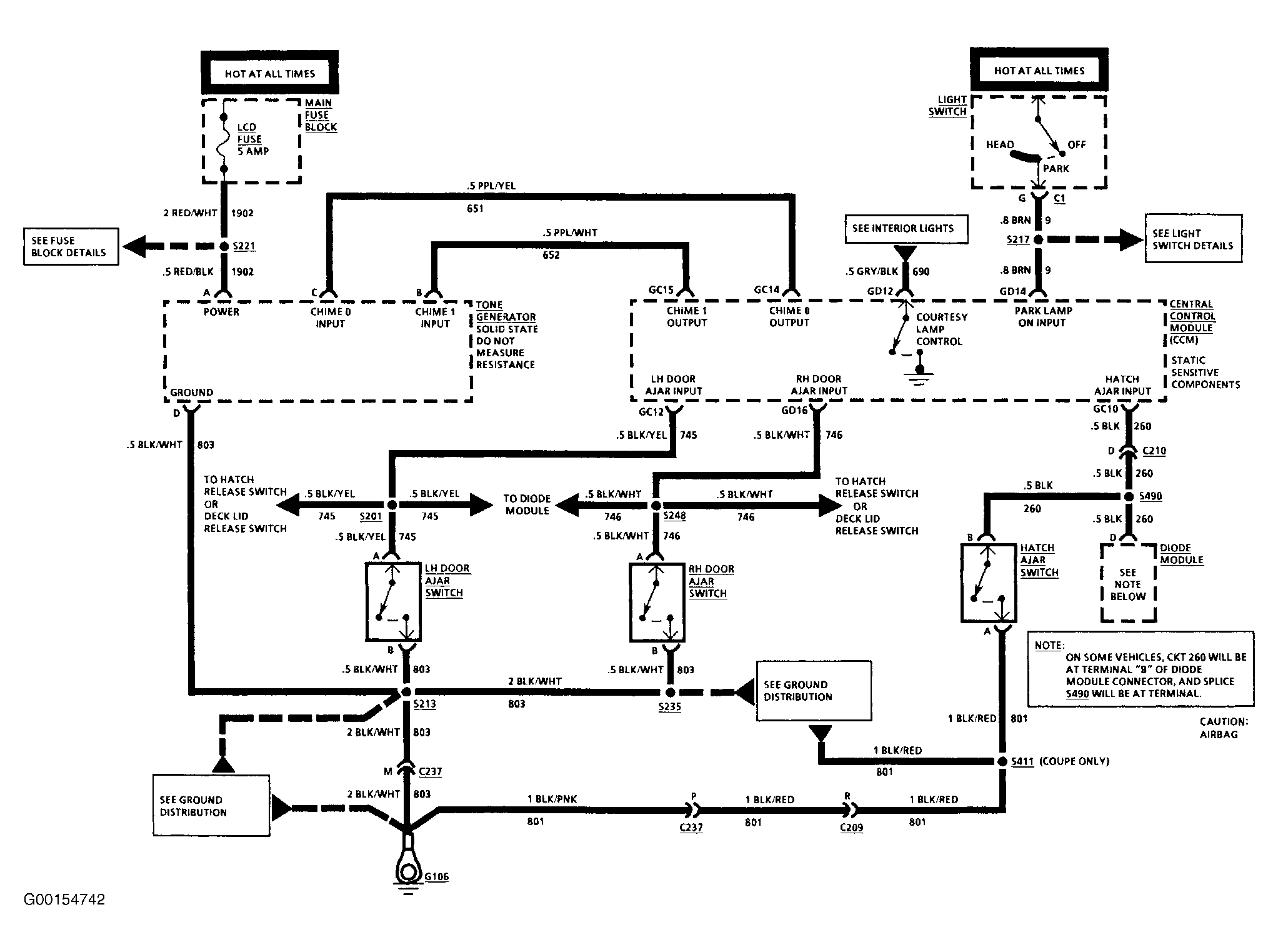

Fig 3: CCM Wiring Diagram - 1990 Corvette (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

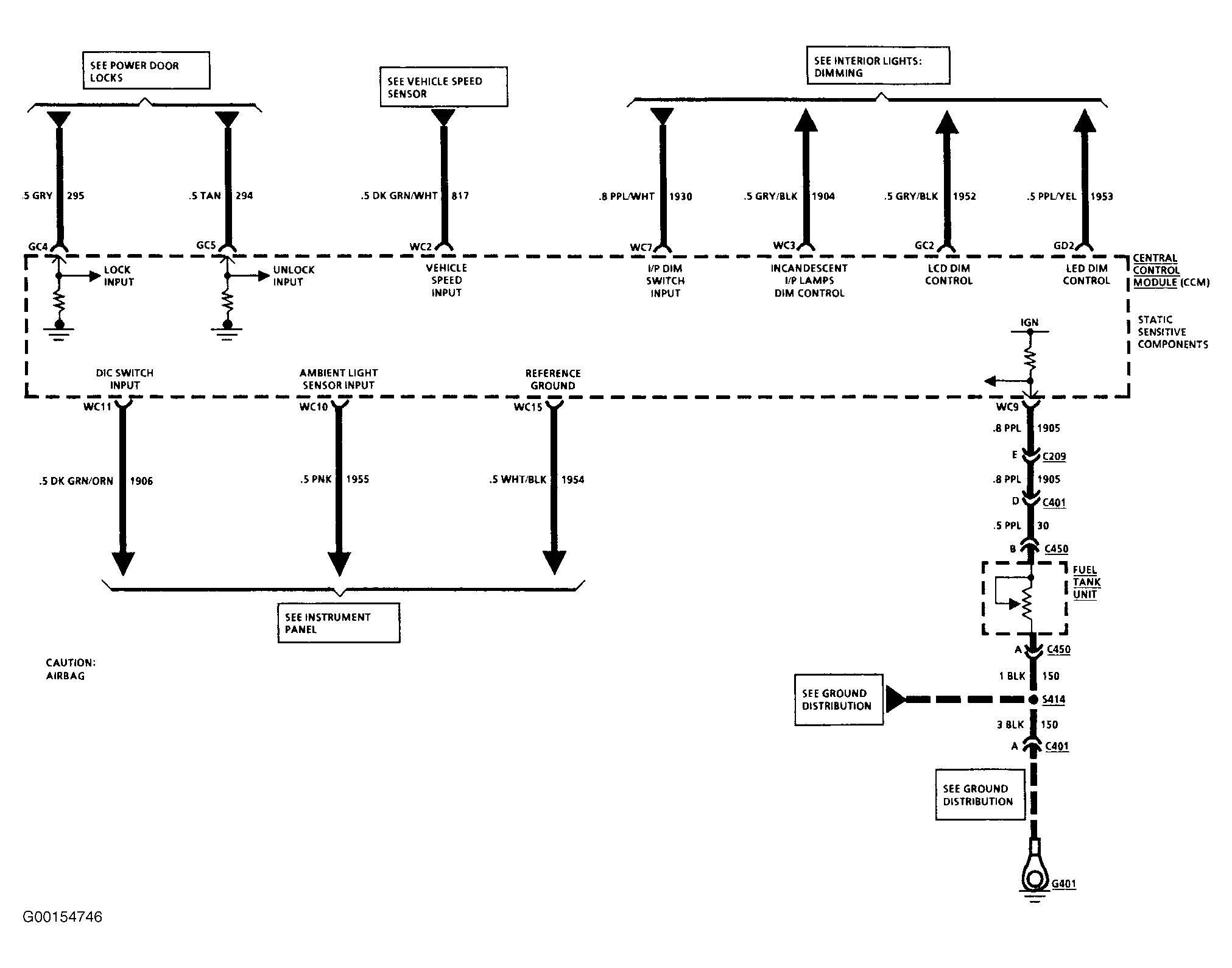

Fig 4: CCM Wiring Diagram - 1990 Corvette (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

Fig 5: CCM Wiring Diagram - 1990 Corvette (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

Fig 6: CCM Wiring Diagram - 1990 Corvette (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

Fig 7: CCM Wiring Diagram - 1990 Corvette (6 Of 6)

Courtesy of GENERAL MOTORS CORP.
