PCV Valve

The wrong PCV valve may cause incorrect idle speed.

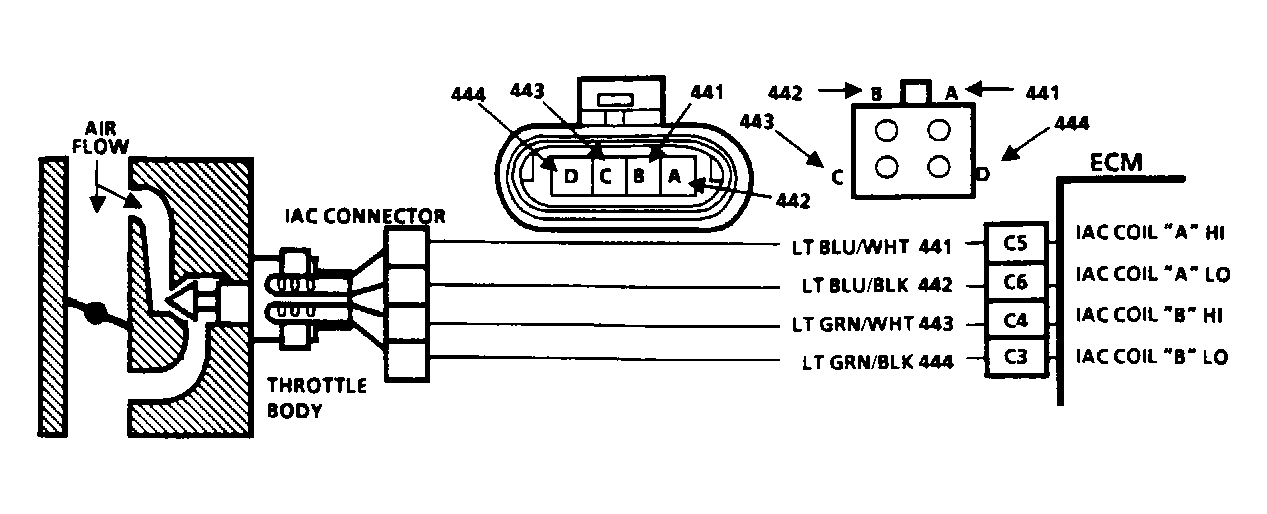

Fig 1: Code 35: Idle Speed Error (2.5L) Circuit Diagram

G90A18838

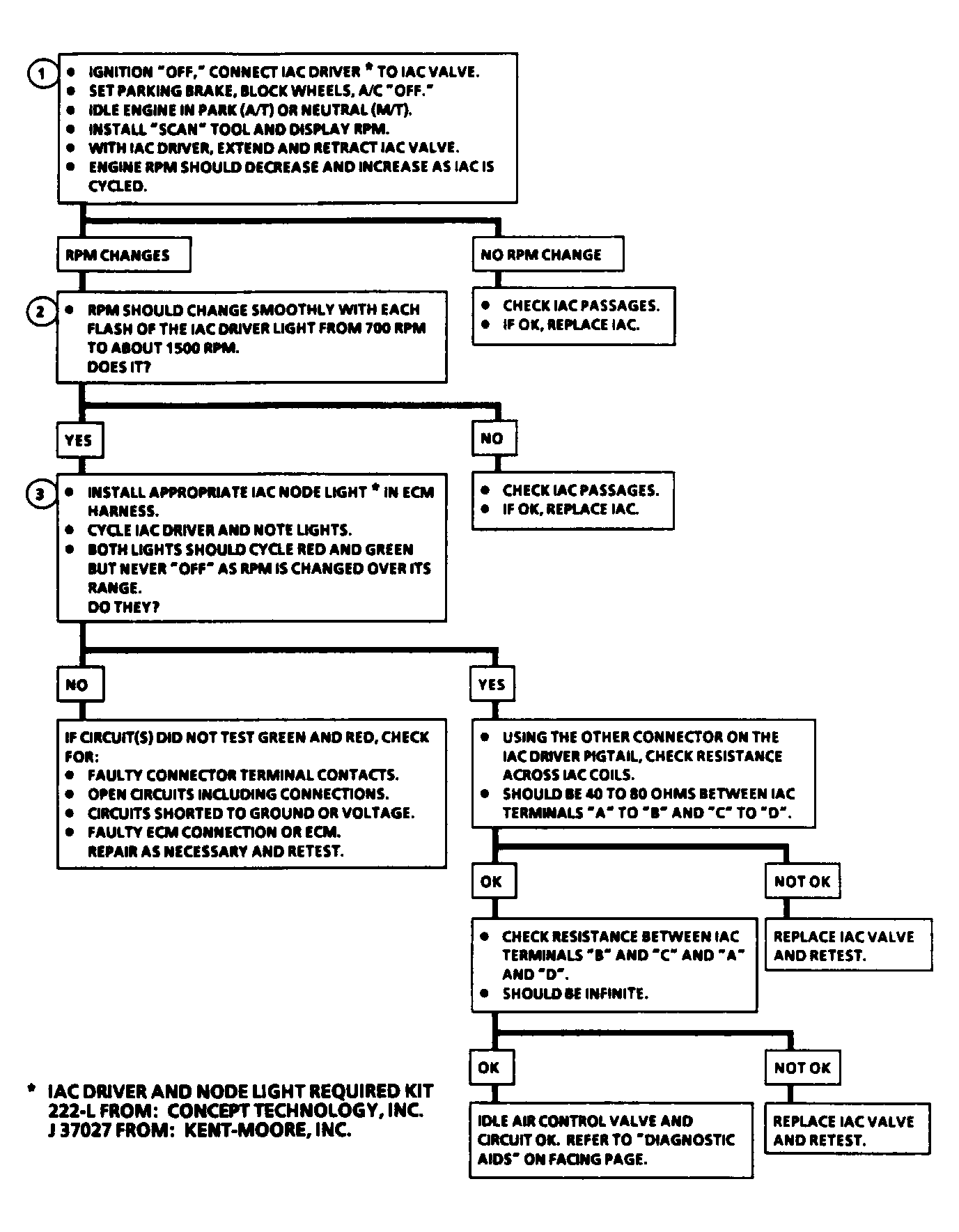

Fig 2: Code 35: Idle Speed Error (2.5L) Flow Chart

G90E13957
