Idle Air Control (IAC)

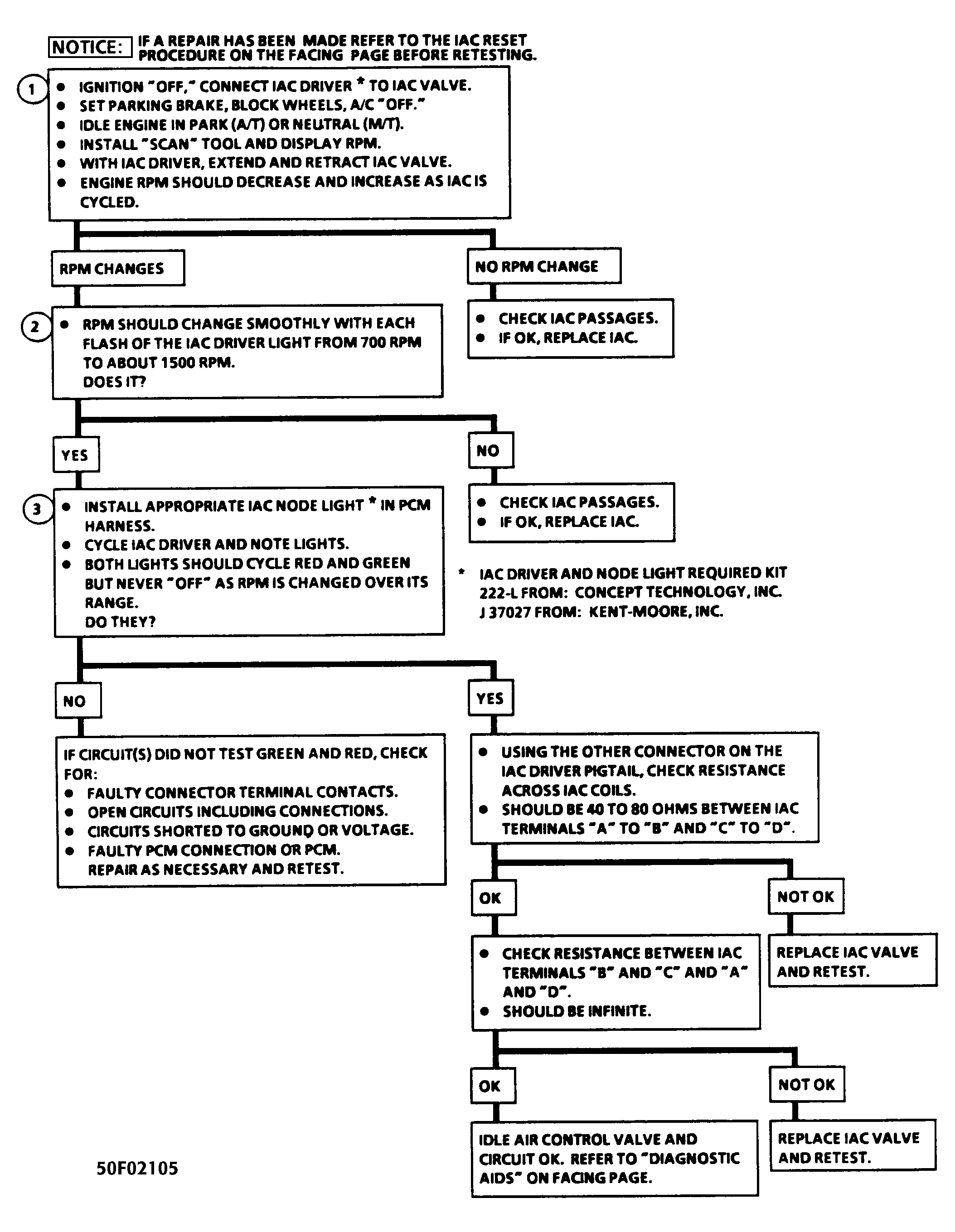

Fig 1: Idle Air Control (IAC) (Except 2.5L & Vehicles w/4L80-E Trans.)

Courtesy of GENERAL MOTORS CORP.

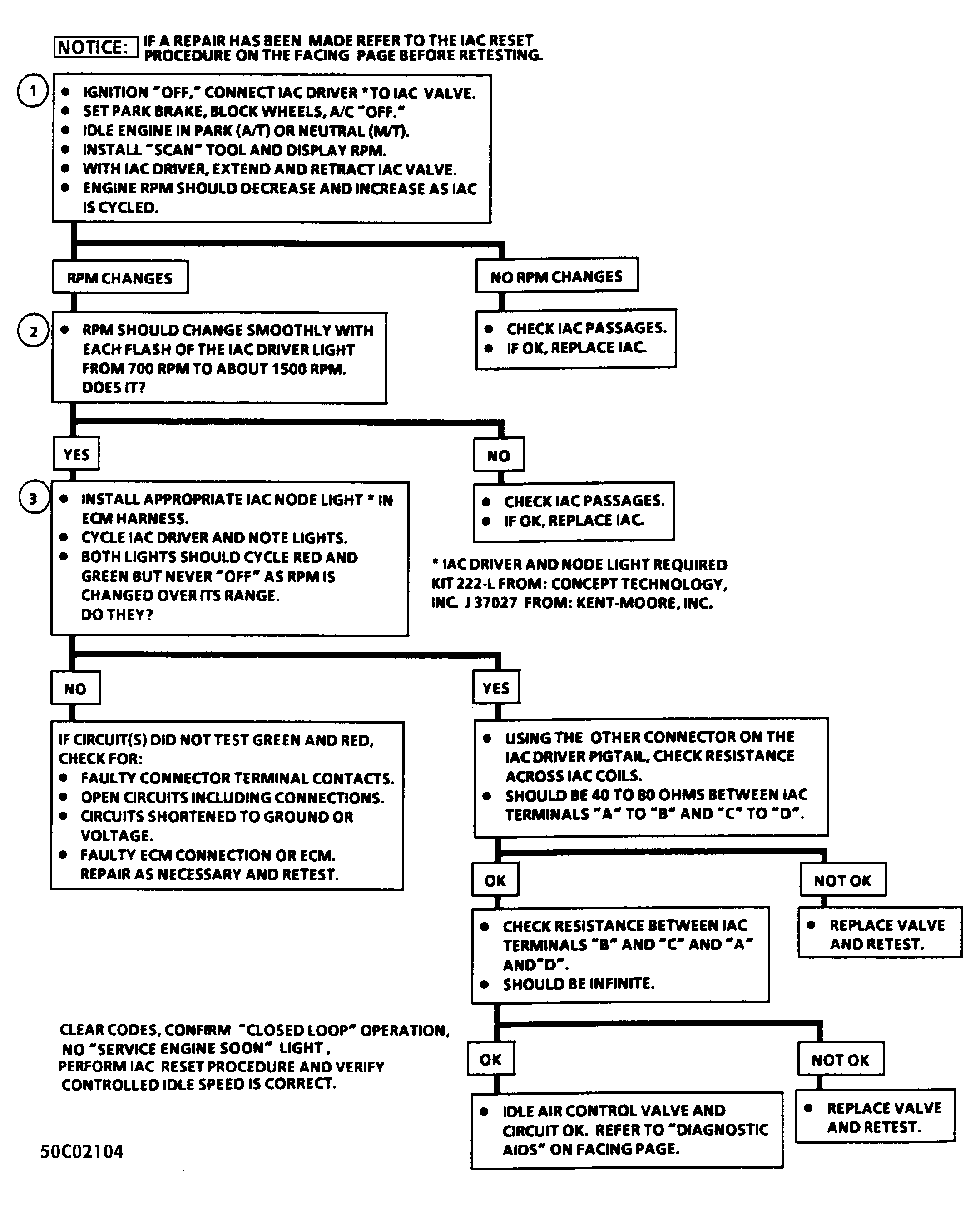

Fig 2: Idle Air Control (IAC) (Vehicles w/4L80-E Trans.)

Courtesy of GENERAL MOTORS CORP.
