System Operation Check

  1. Use the System Check Table as a guide to normal operation. SeeFig 1 .
  2. If problem exists, repair by symptom. See SYMPTOM INDEX  .

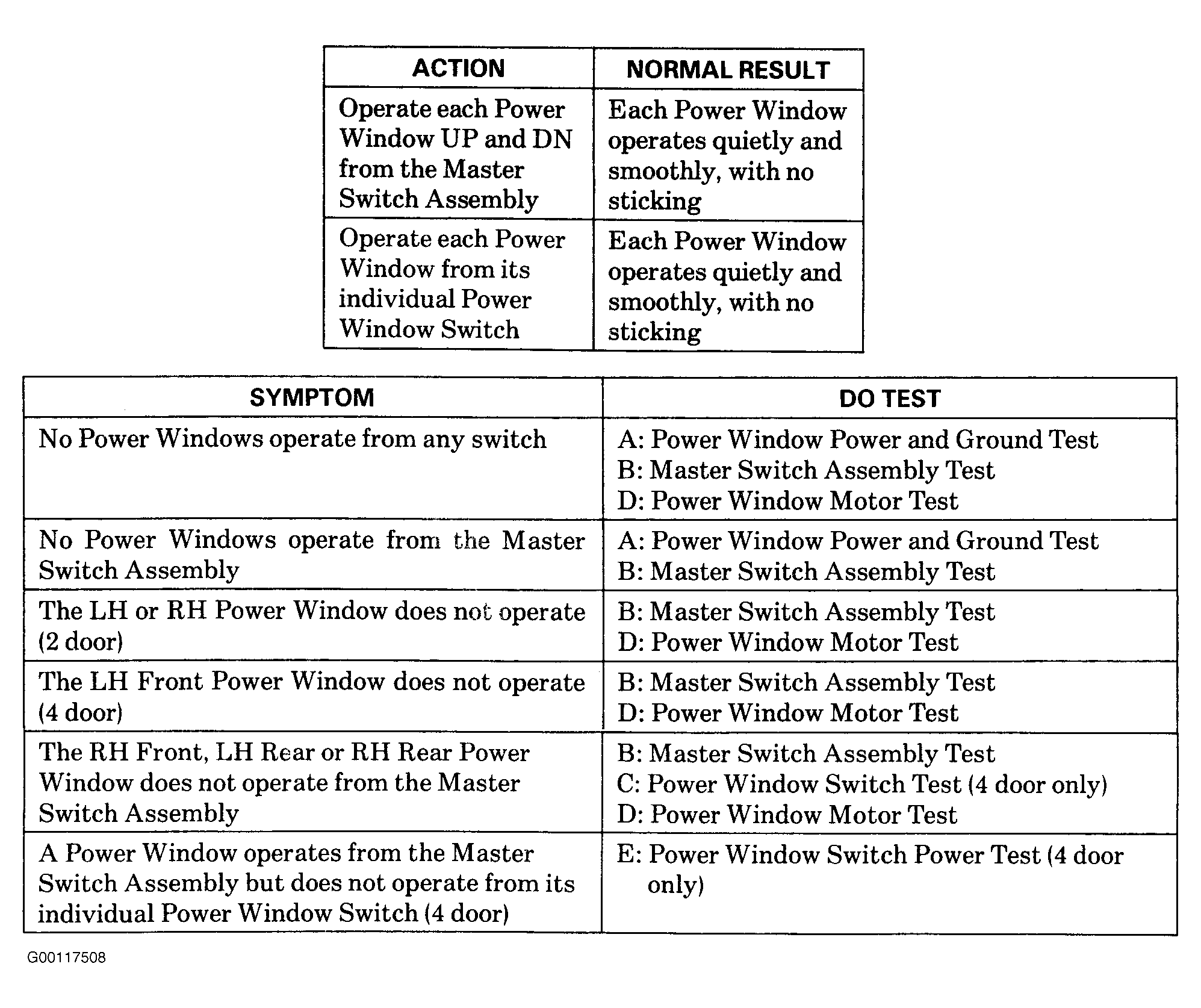

Fig 1: System Operation Check Table
G00117508Courtesy of GENERAL MOTORS CORP.
