Power Window Switch Assembly: Installation

  1. Install lamp socket and bulb, if removed. See Fig 1 .
  2. Install connector(s).
  3. Install clips.
  4. Install switch assembly by pressing in place.

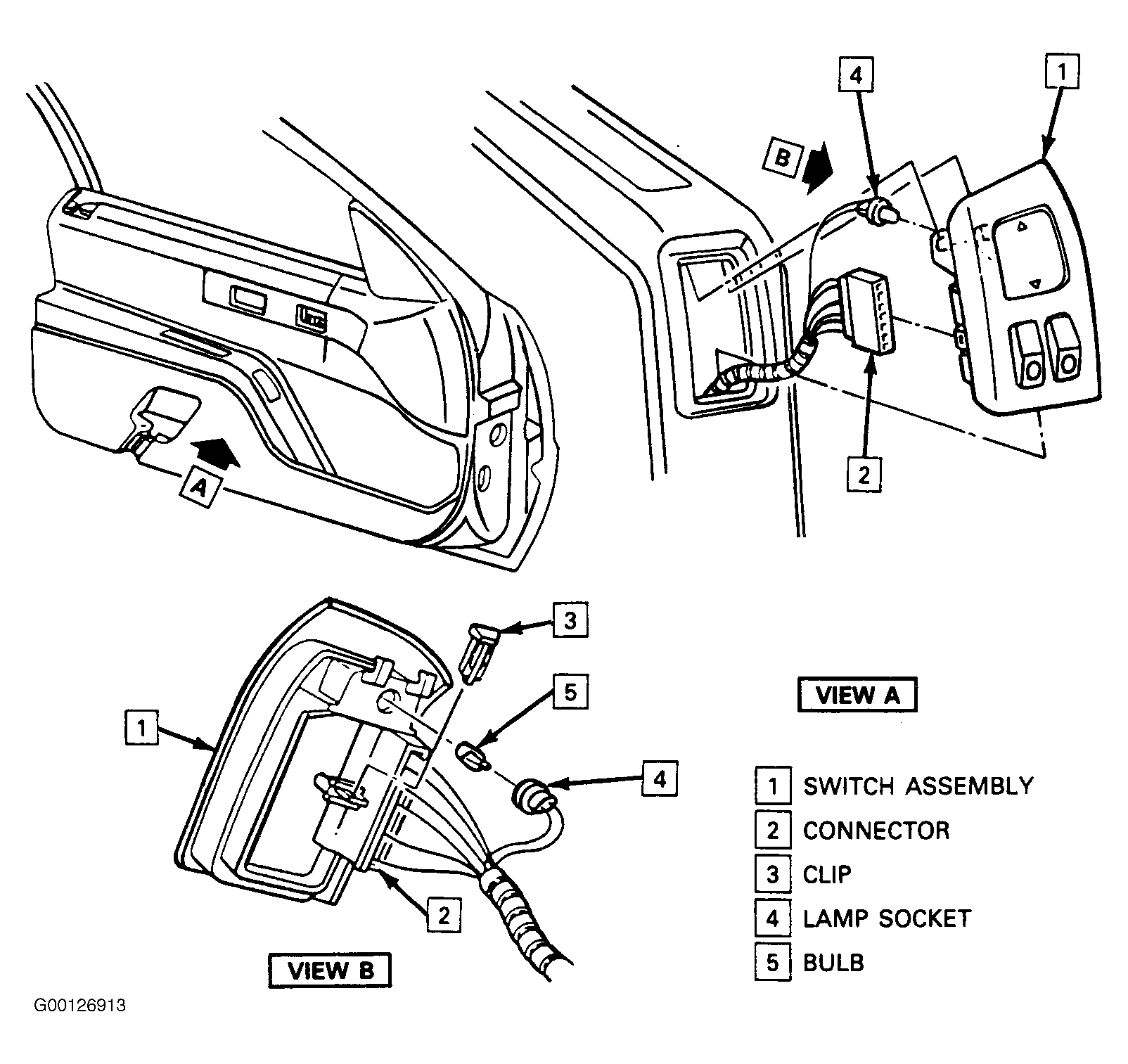

Fig 1: Removing Power Window Switch Assembly (Coupe)
G00126913Courtesy of GENERAL MOTORS CORP.


  1. Install lamp socket and bulb, if removed. See Fig 1 .
  2. Install connector(s).
  3. Install clips.
  4. Install switch assembly by pressing in place.

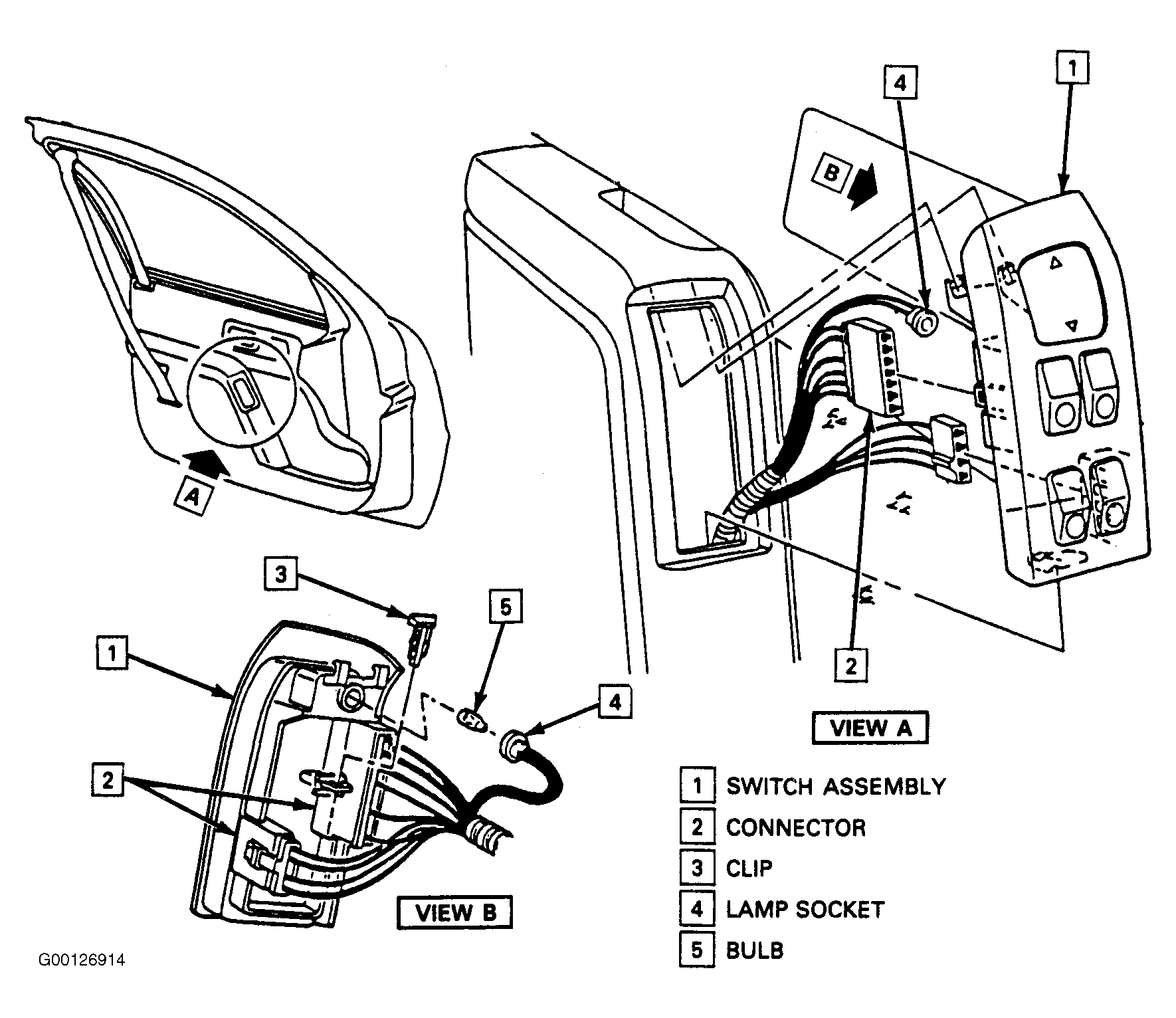

Fig 1: Removing Power Window Switch Assembly (Sedan Front Doors)
G00126914Courtesy of GENERAL MOTORS CORP.


  1. Install lamp socket and bulb, if removed. See Fig 1 .
  2. Install connector(s).
  3. Install clips.
  4. Install switch assembly by pressing in place.

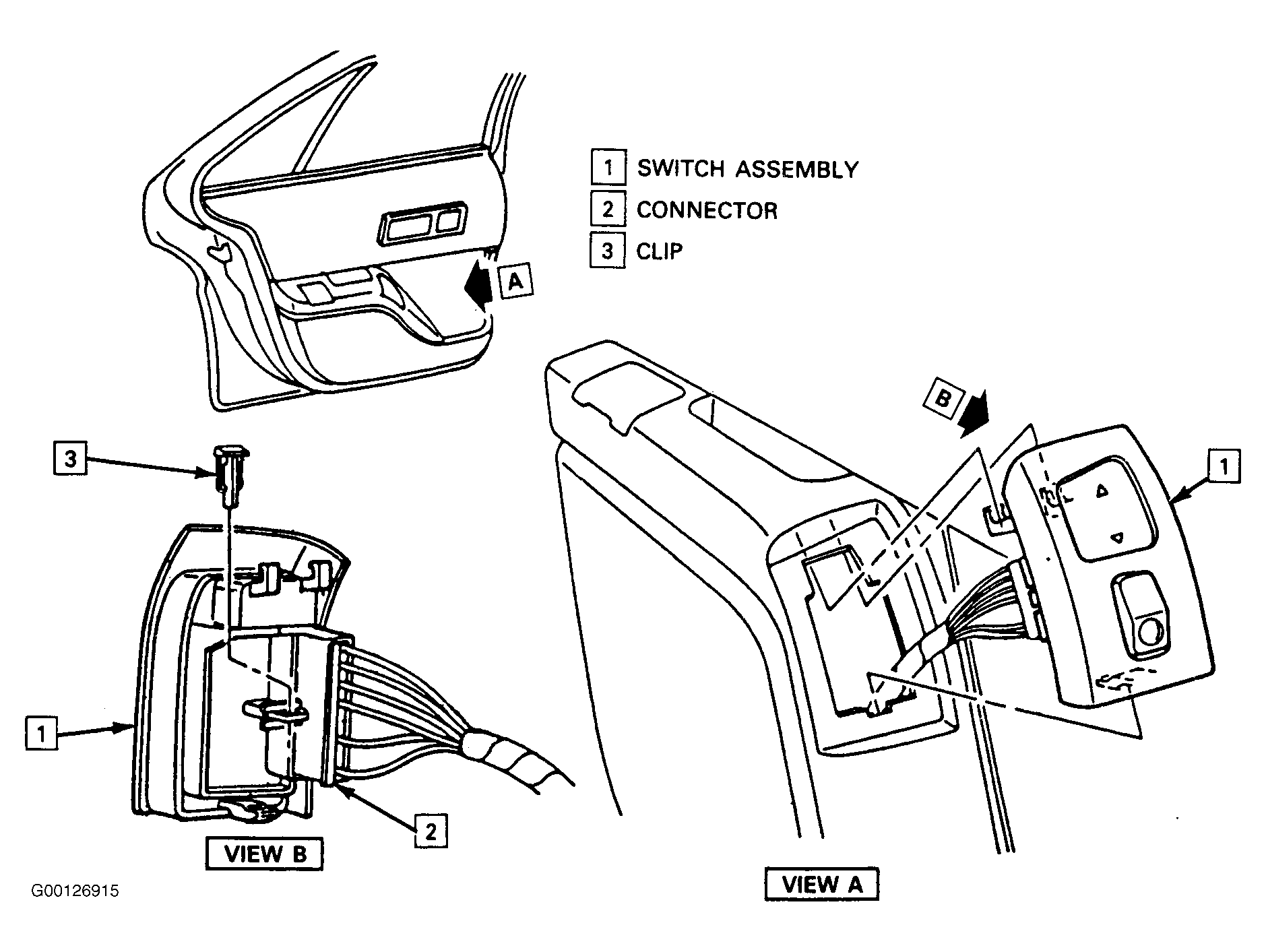

Fig 1: Removing Power Window Switch Assembly (Rear Doors)
G00126915Courtesy of GENERAL MOTORS CORP.
