Window Regulator: Installation

1. Install regulator through access hole and attach regulator arm to sash channel.
2. Install electrical connector to motor.
3. Install rivets using 1/4 inch x 1/2 inch peel type rivets. See Fig 1 .
4. Install water deflector.
5. Install trim panel. See TRIM PANEL  .

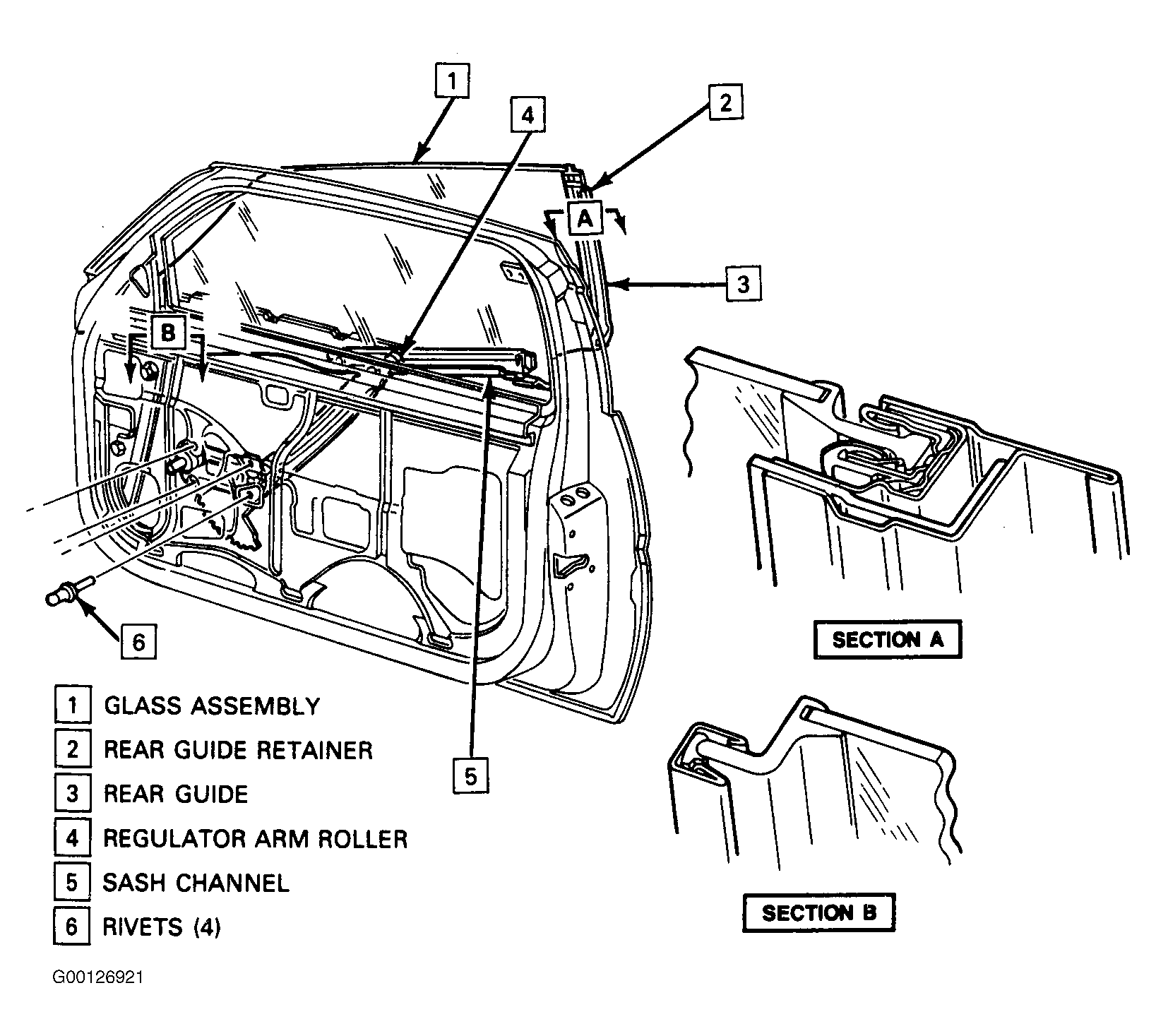

Fig 1: Removing Door Window (Coupe)

Courtesy of GENERAL MOTORS CORP.

1. Install regulator through access hole and attach regulator arm to sash channel.
2. Install electrical connector to motor.
3. Install rivets using 1/4 inch x 1/2 inch peel type rivets. See Fig 1 .
4. Install water deflector.
5. Install trim panel. See TRIM PANEL  .

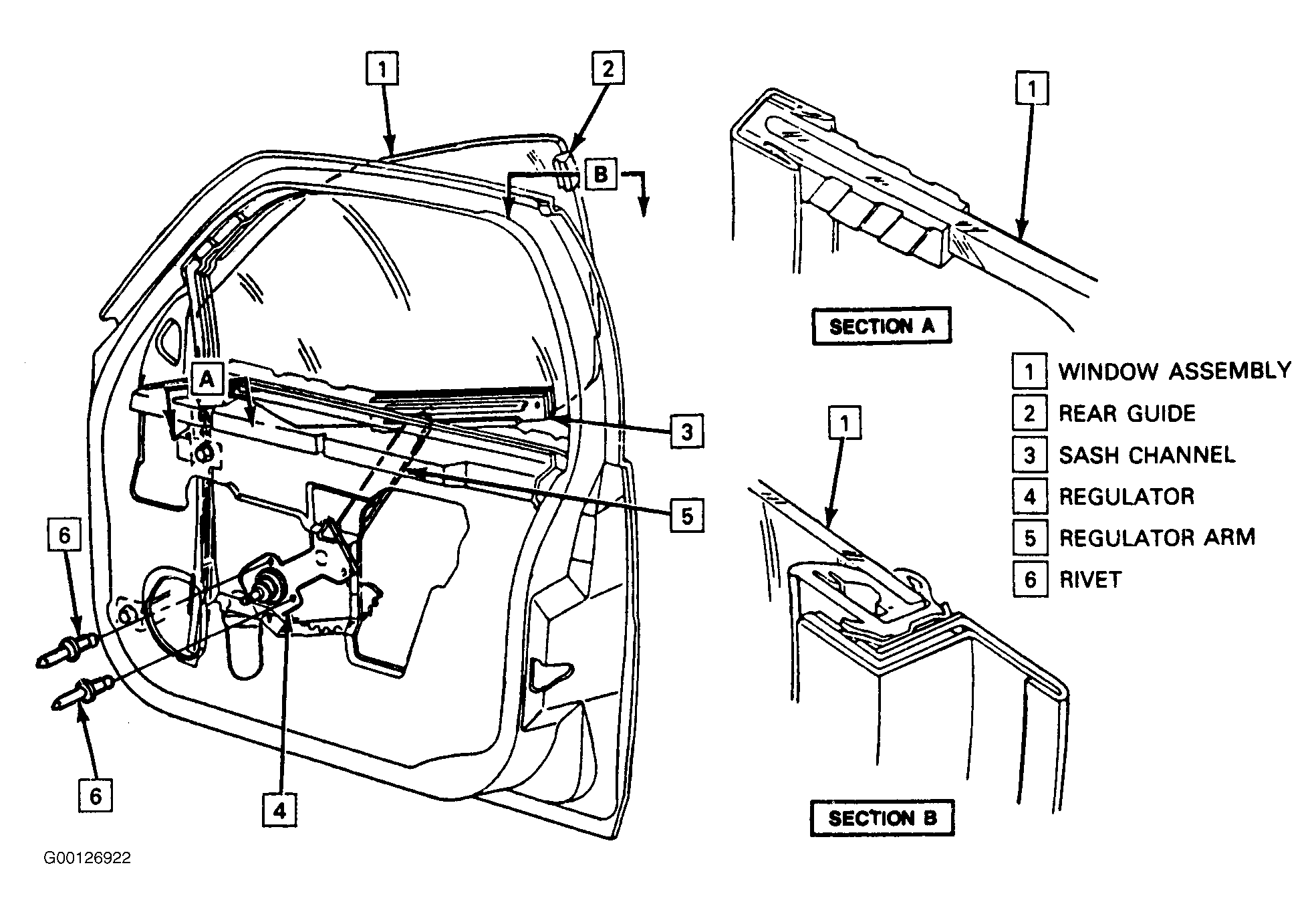

Fig 1: Removing Door Window (Sedan Front Doors)

Courtesy of GENERAL MOTORS CORP.

1. Install regulator through access hole.
2. Install electrical connector to motor.
3. Install rivets using 1/4 inch x 1/2 inch peel type rivets. See Fig 1 .
4. Install nuts.
5. Install water deflector.
6. Install door trim panel. See TRIM PANEL  .

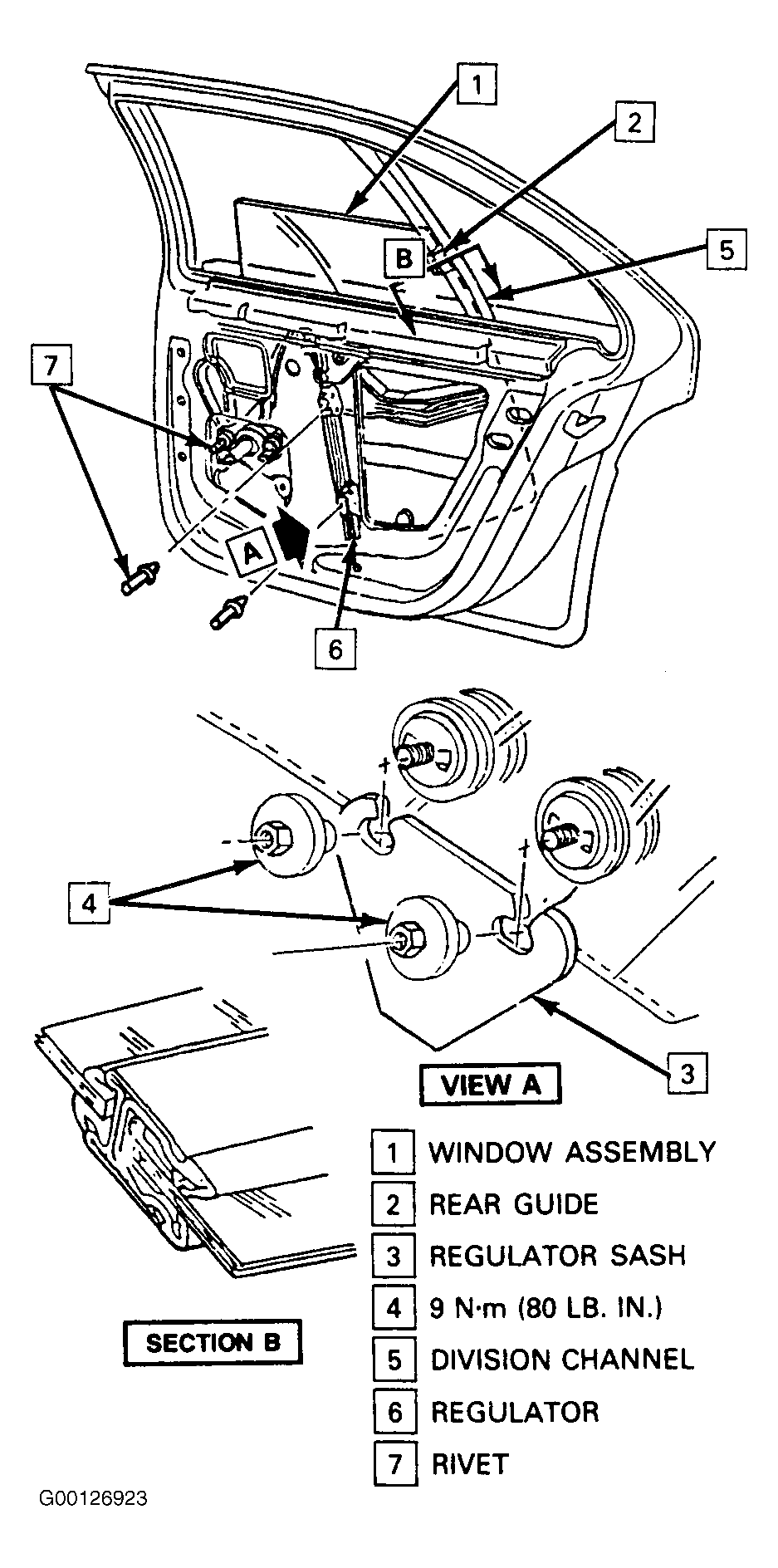

Fig 1: Removing Door Window (Rear Doors)

Courtesy of GENERAL MOTORS CORP.
