Wiring Diagrams

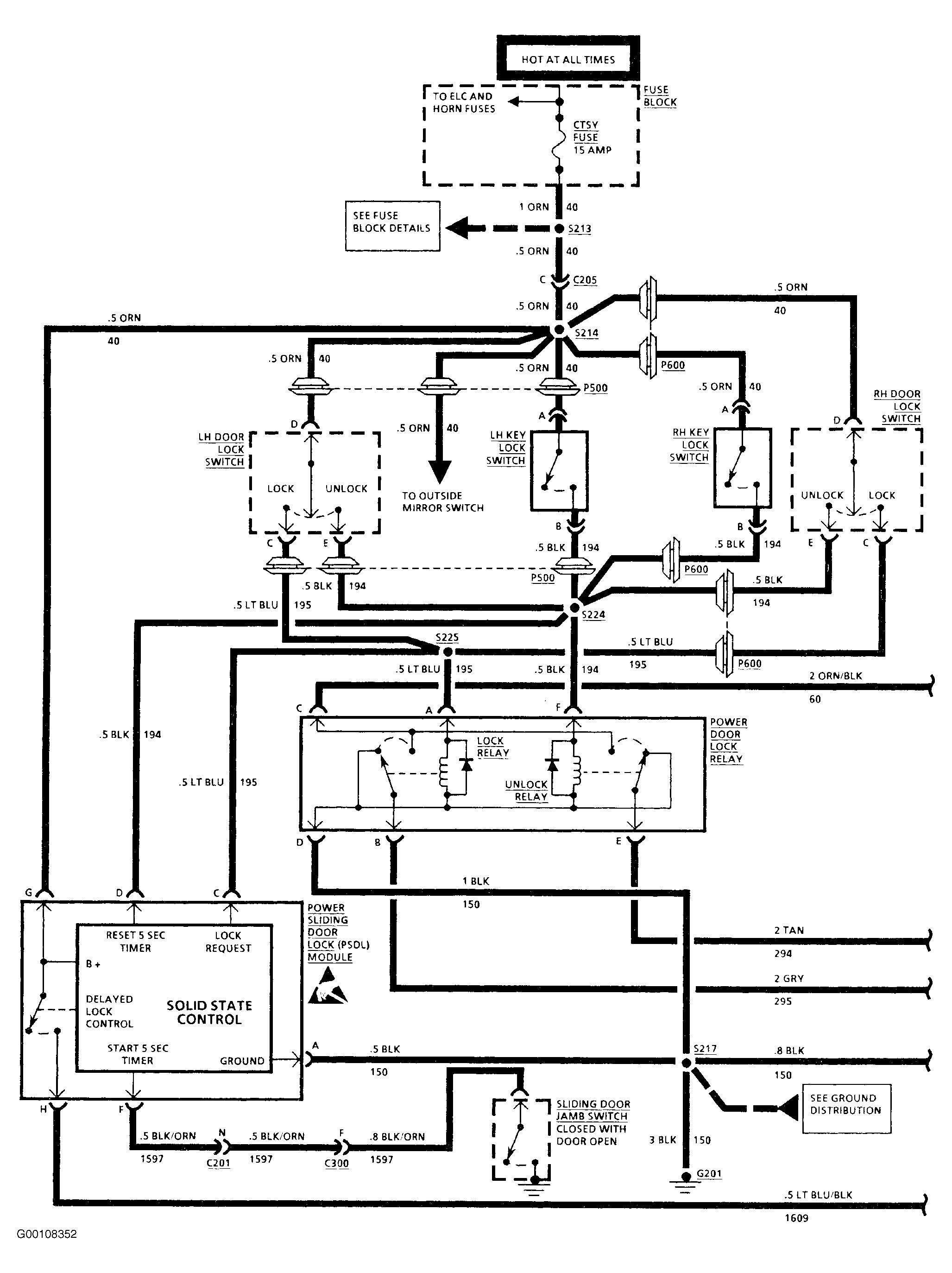

Fig 1: Power Door Locks Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

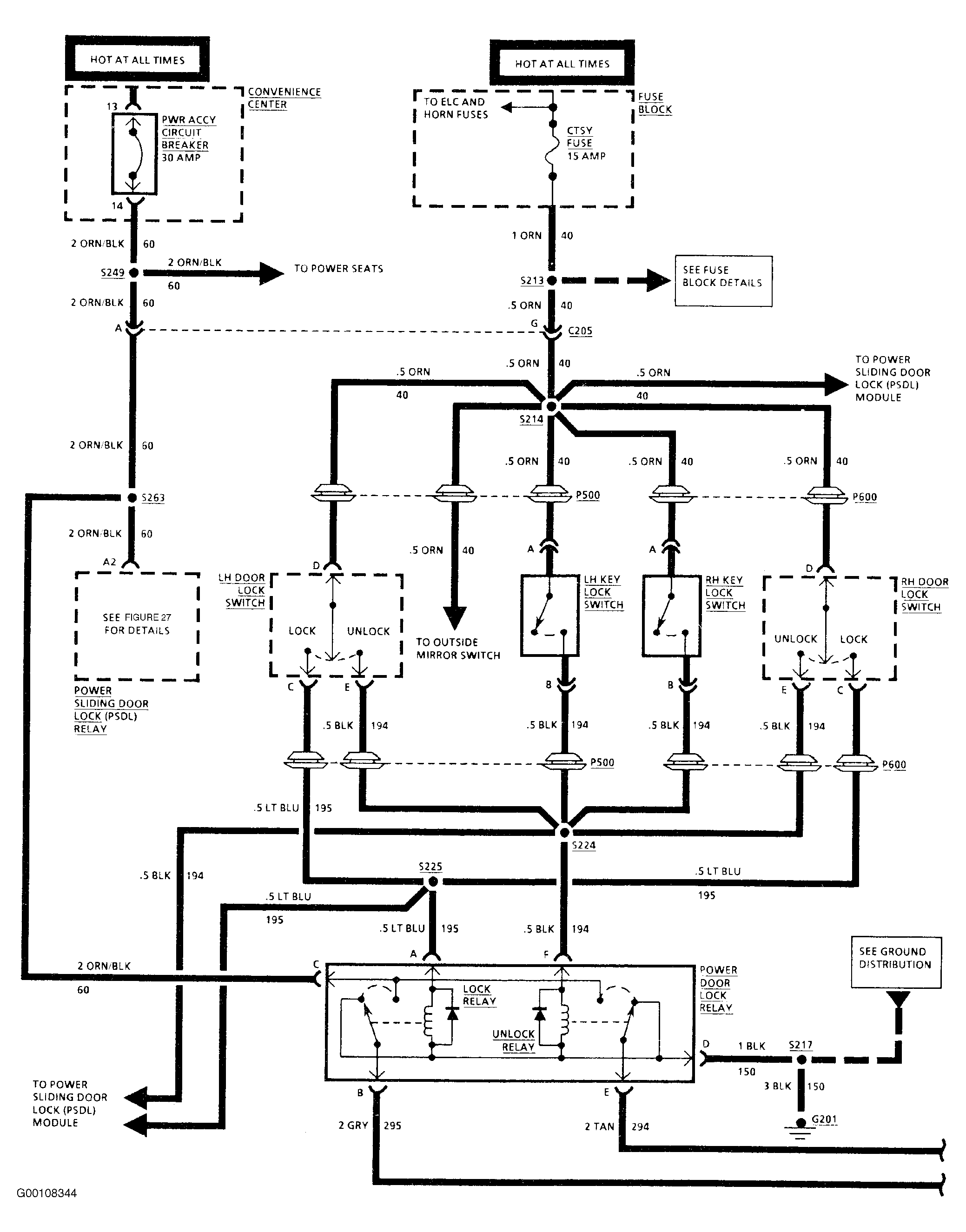

Fig 2: Power Door Locks Wiring Diagrams (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

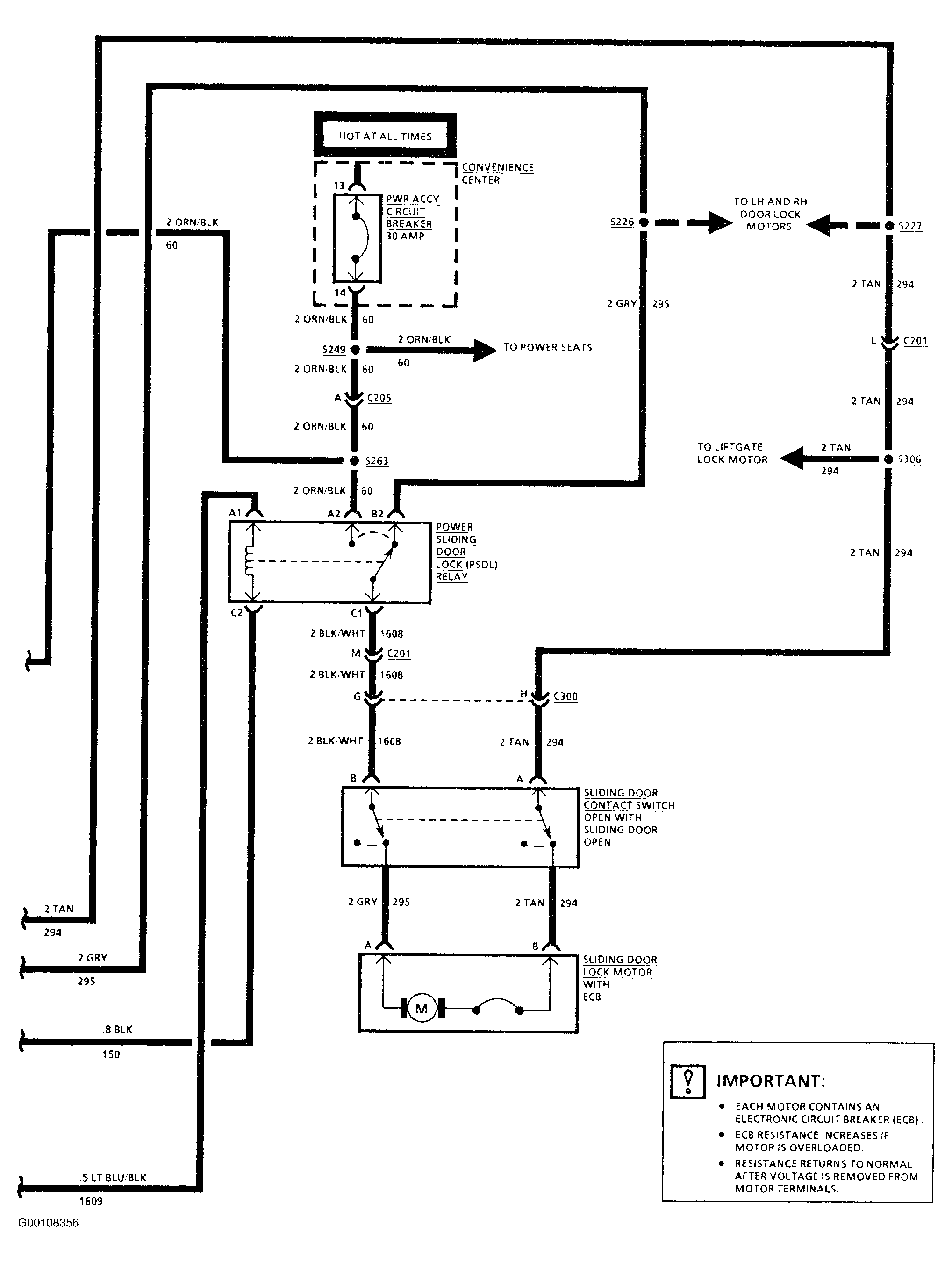

Fig 3: Sliding Door Lock Motor Control Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

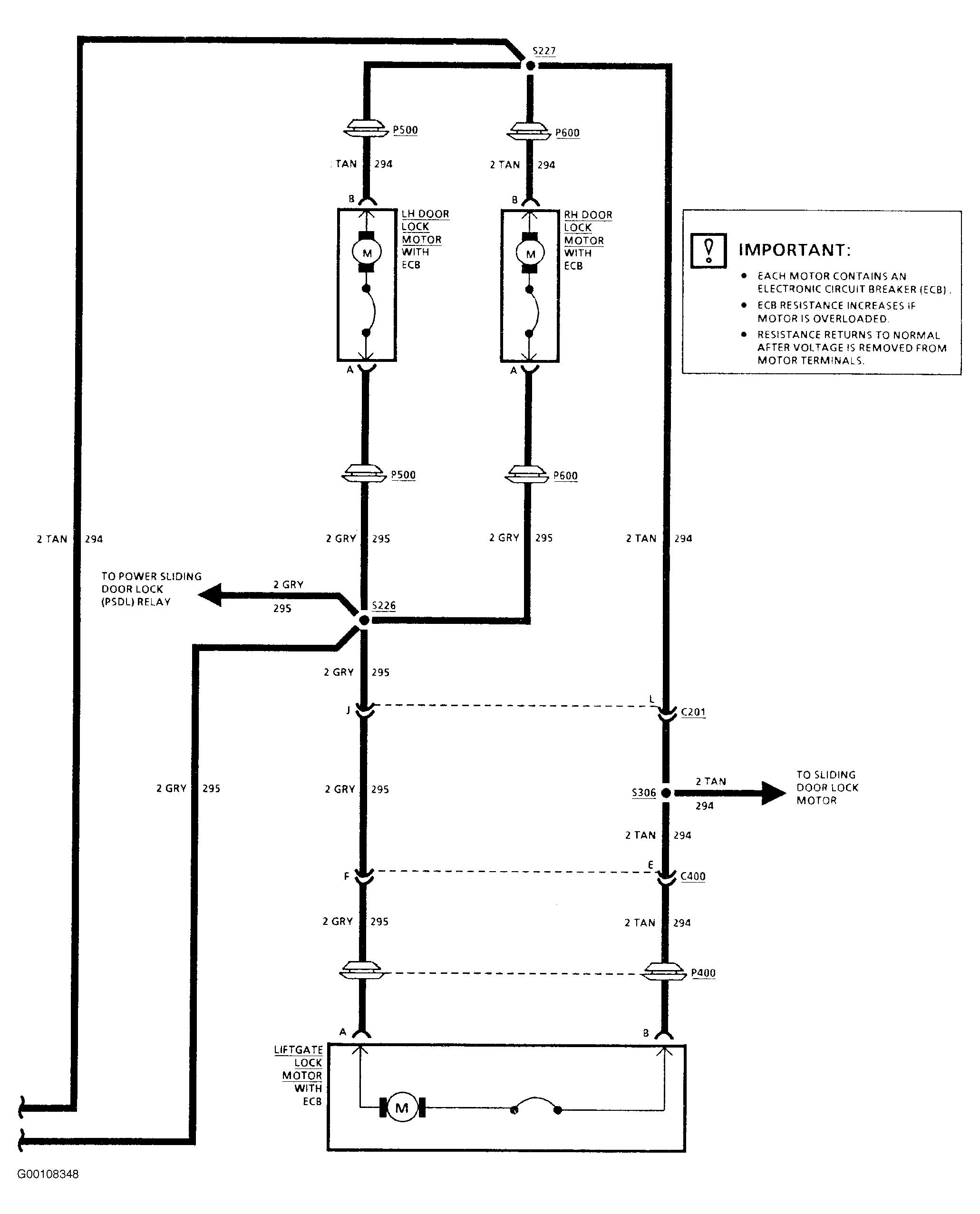

Fig 4: Sliding Door Lock Motor Control Wiring Diagram (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
