Diagnostic Charts: Notes

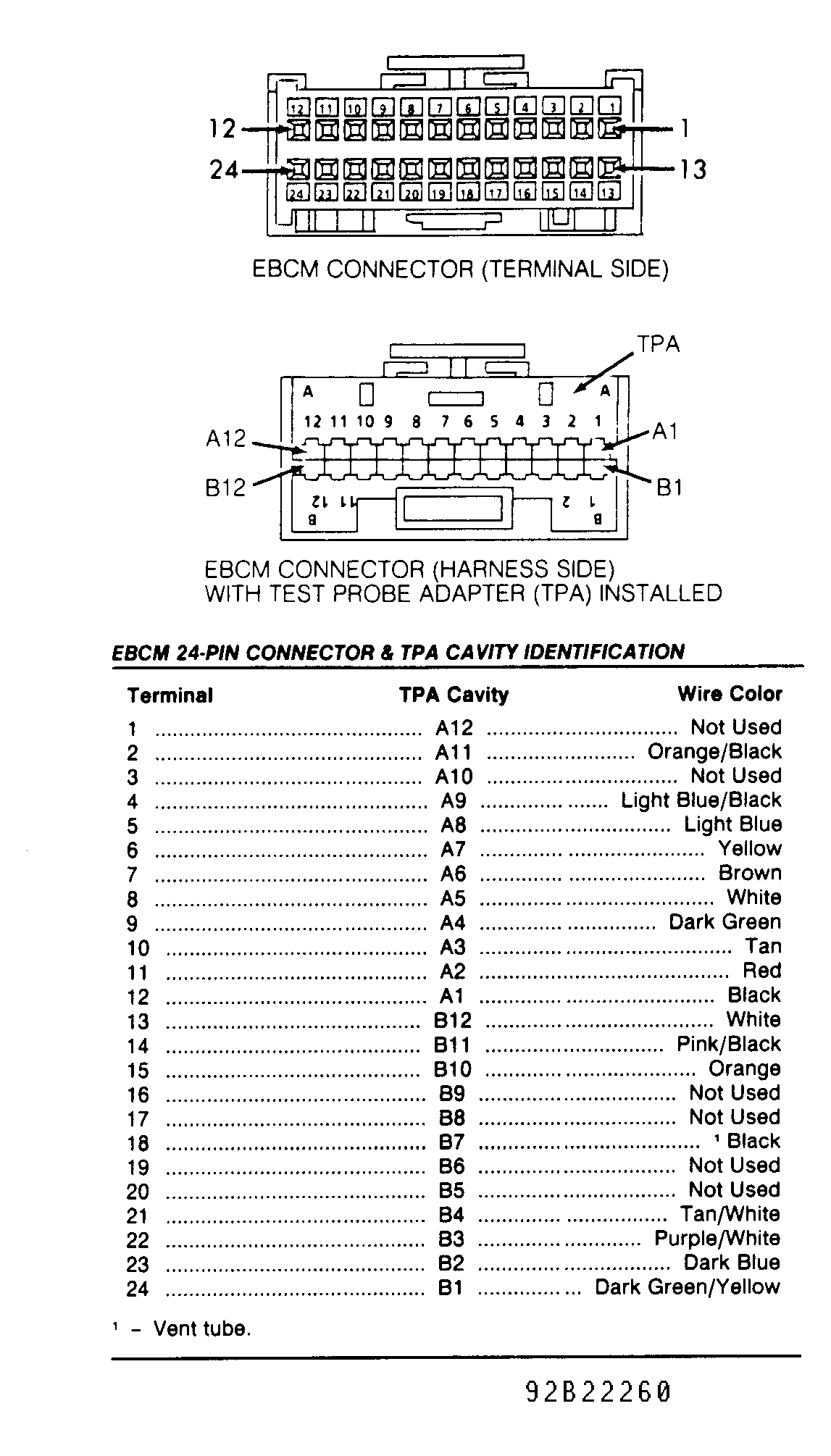

NOTE: See Figure-9 to identify connector terminals referenced in flow charts.
