Wiring Diagrams

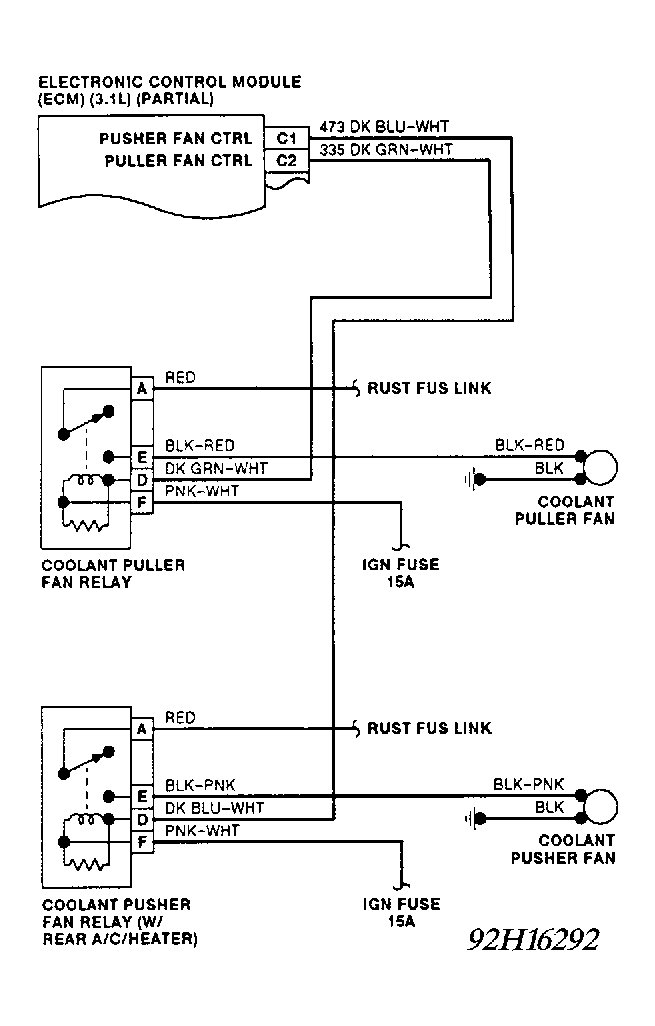

Fig 1: Cooling Fan Circuit Wiring Diagram (3.1L)

G92H16292

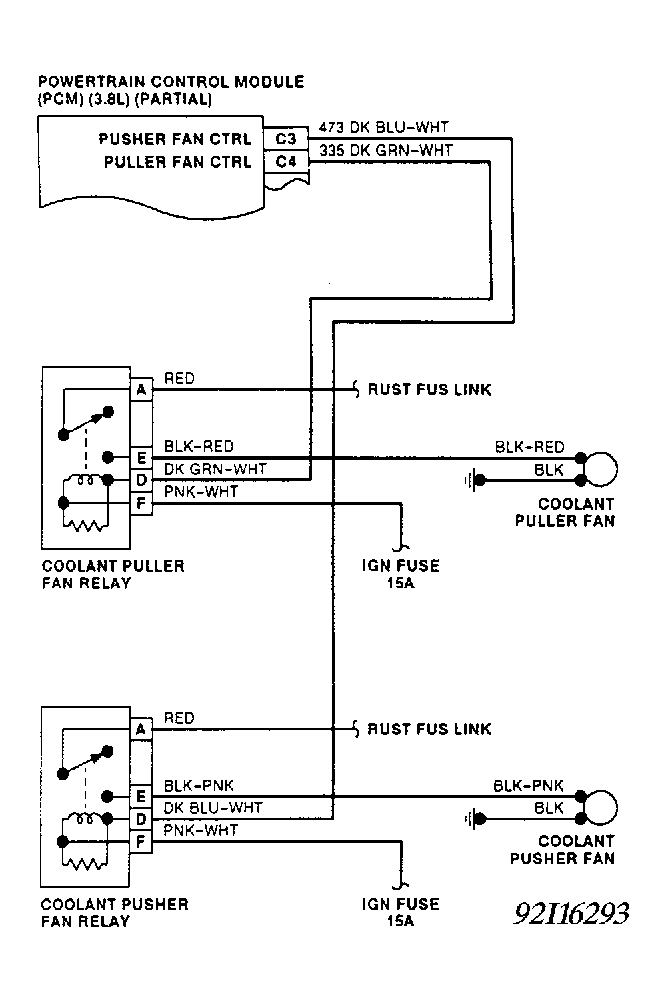

Fig 2: Cooling Fan Circuit Wiring Diagram (3.8L)

G92I16293
