Home › Chevrolet › 1992 › Astro Van Passenger Extended, 4.3 Z › Repair and Diagnosis › Body & Frame › Power Windows › System Tests › Test A: Both Power Windows Do Not Operate

Test A: Both Power Windows Do Not Operate

For testing procedure, see Fig 1 .

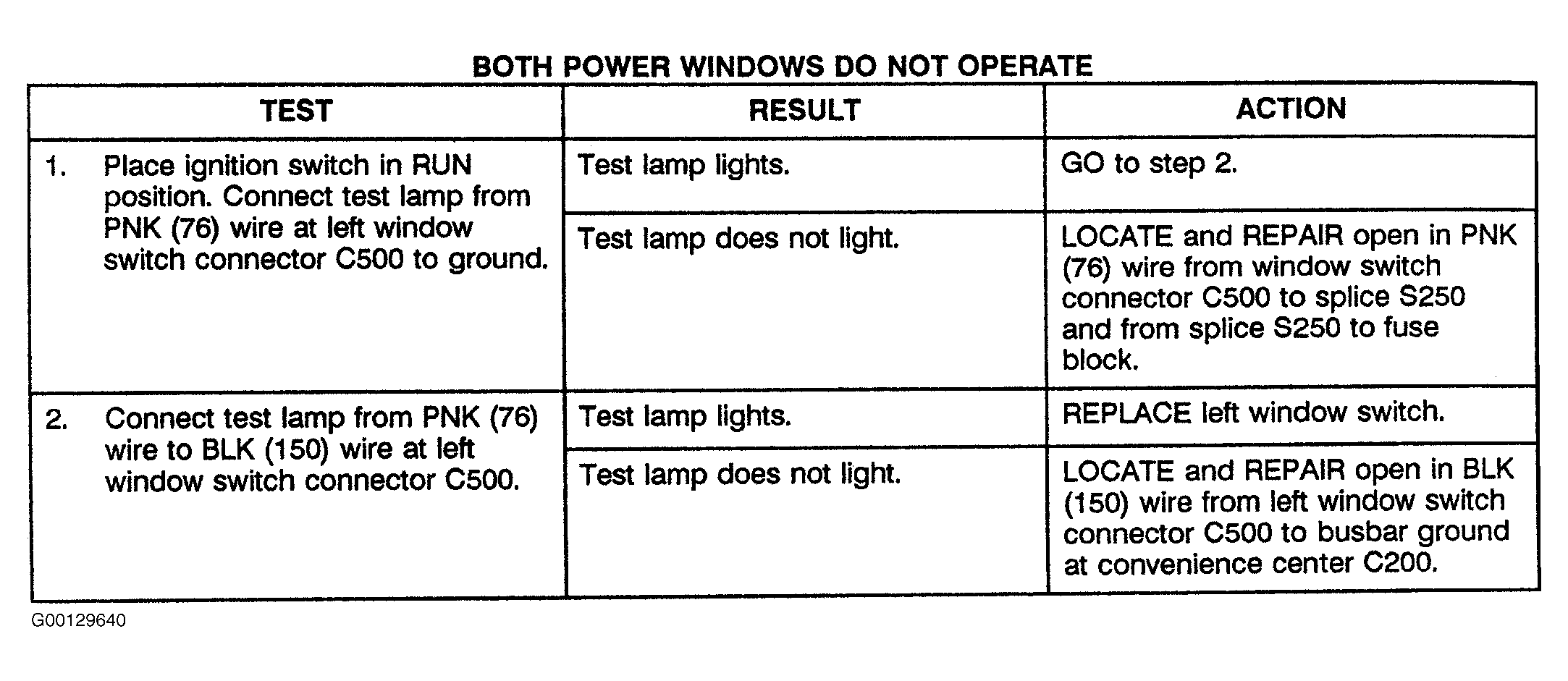

Fig 1: Both Power Windows Do Not Operate

G00129640

Courtesy of GENERAL MOTORS CORP.
