Window Switch: Installation

1. Install wire harness and connector through opening in door trim panel.
2. Install door trim panel.
3. Install electrical connection.
4. Install switch to trim. Press to engage tabs.

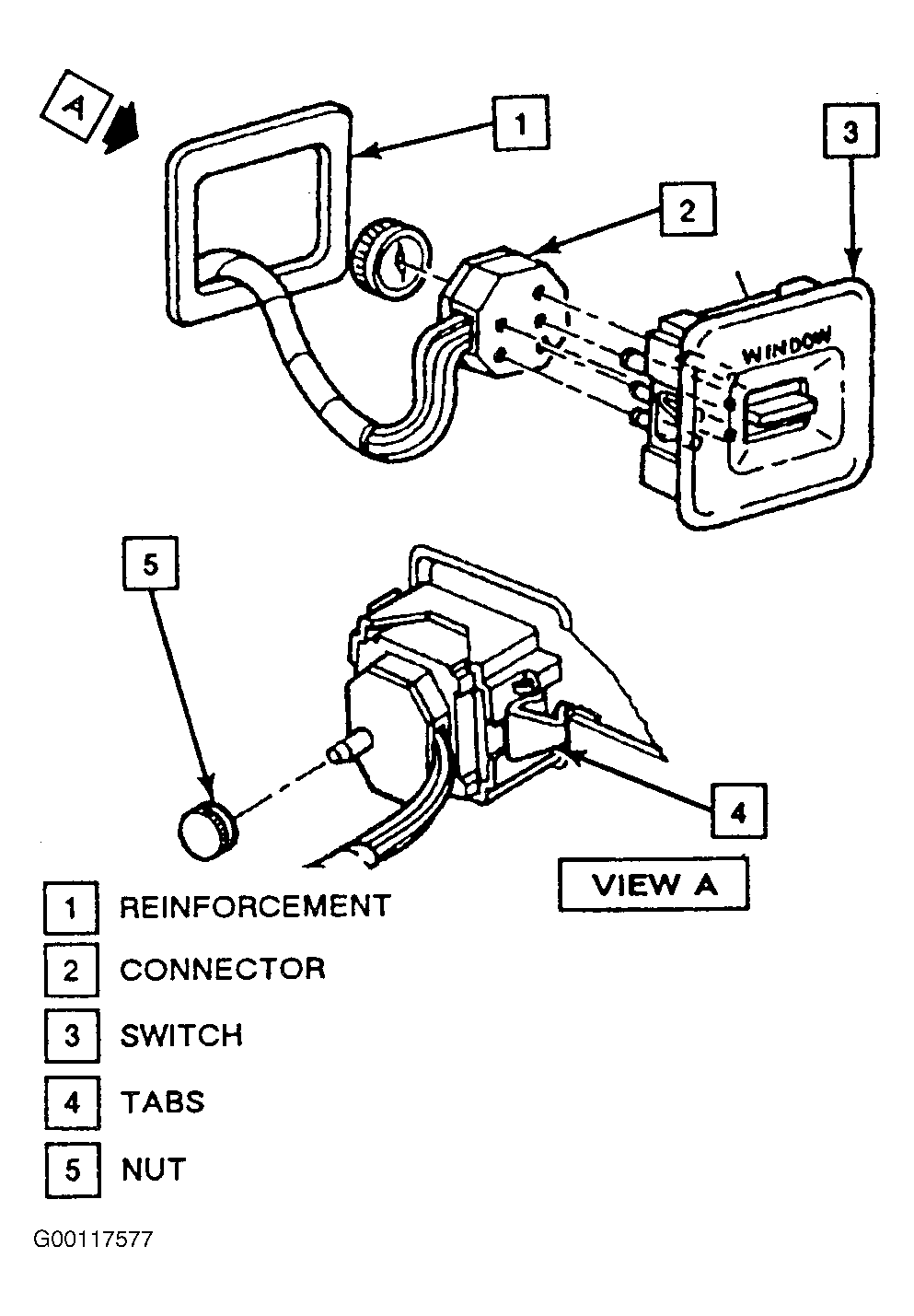

Fig 1: Identifying Rear Door Window Switch

Courtesy of GENERAL MOTORS CORP.
