Wiring Diagrams

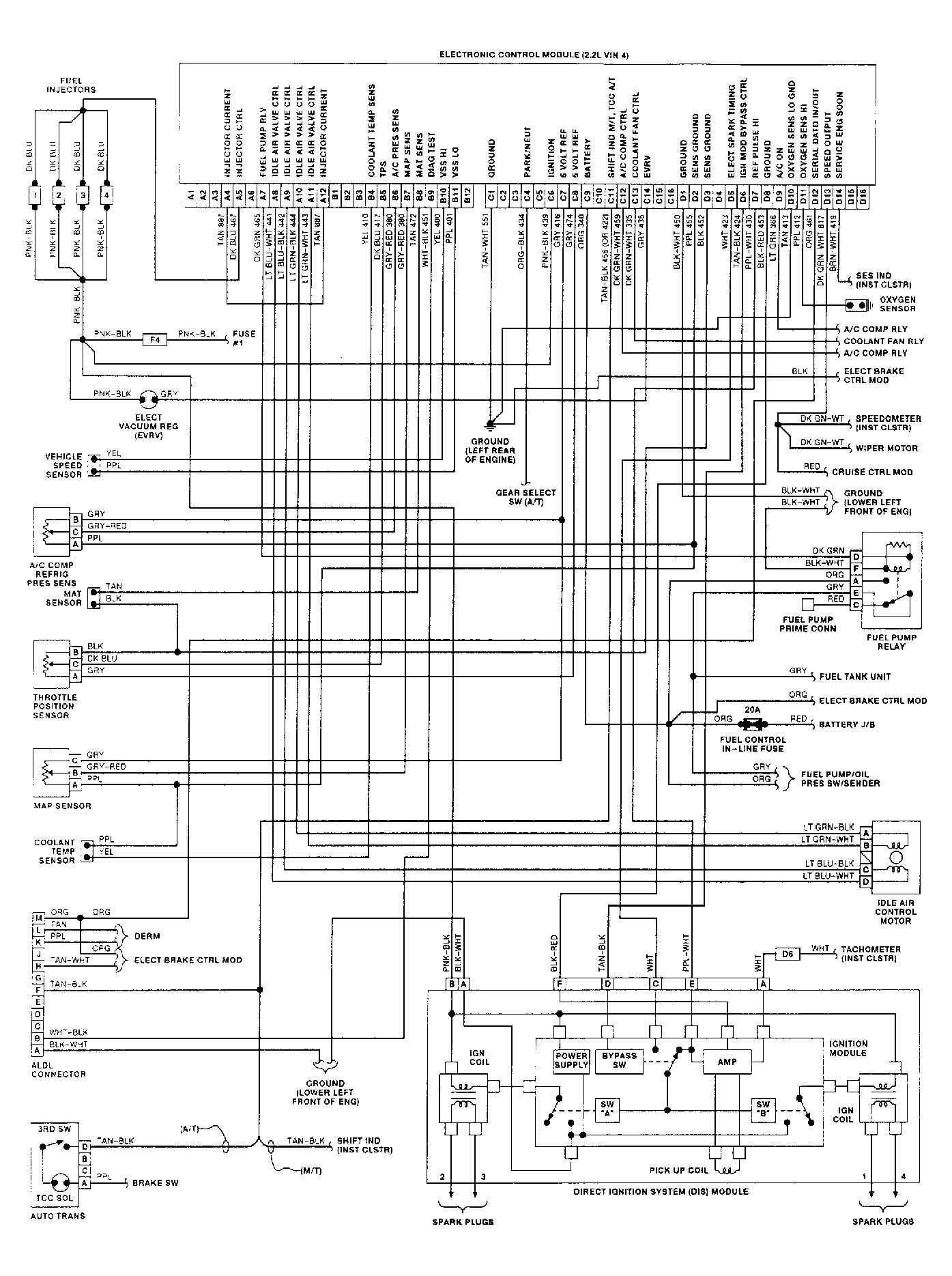

Fig 1: ECM Wiring Diagram, 2.2L VIN 4

G92E05820

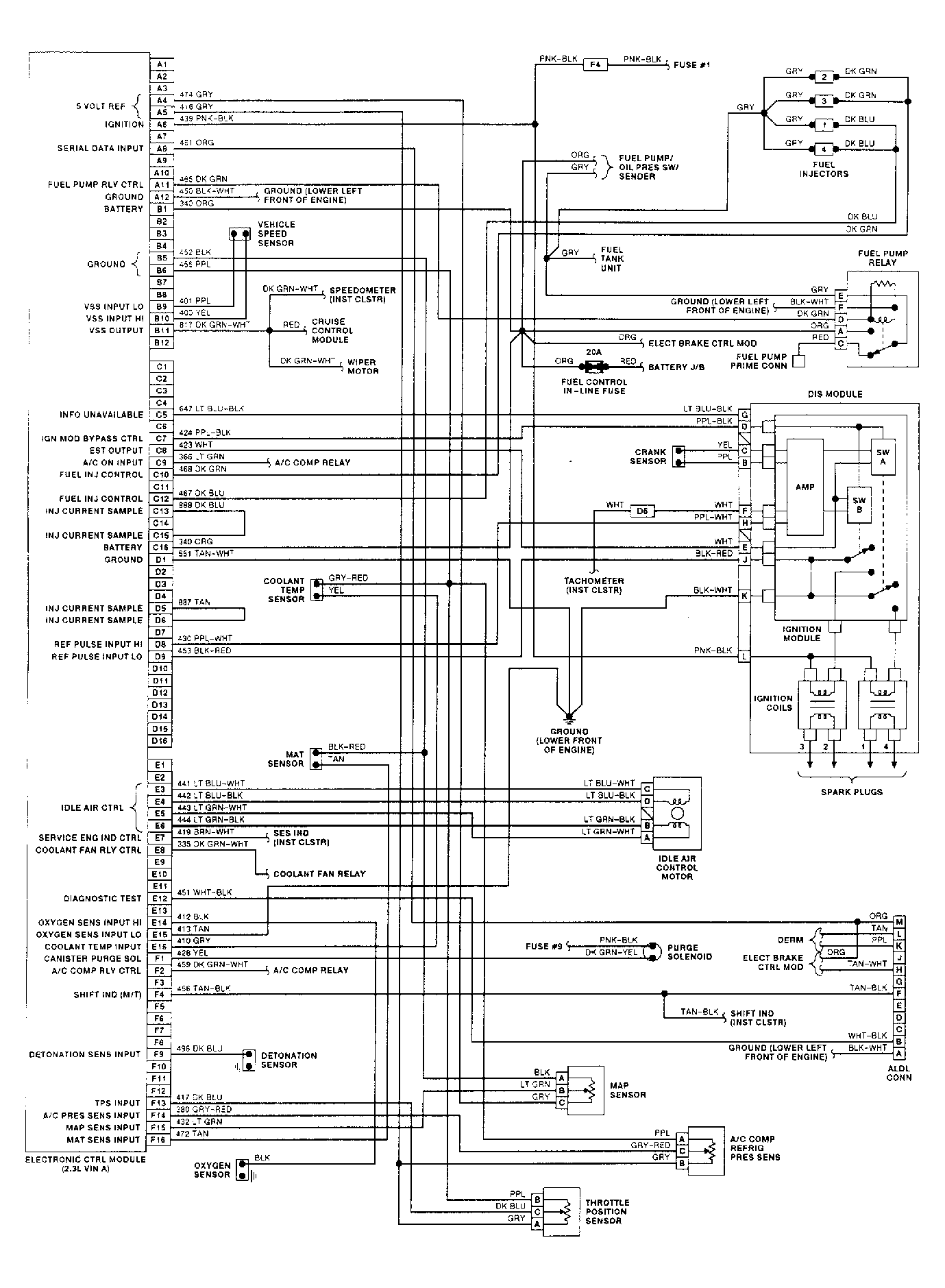

Fig 2: ECM Wiring Diagram, 2.3L VIN A

G92I05822

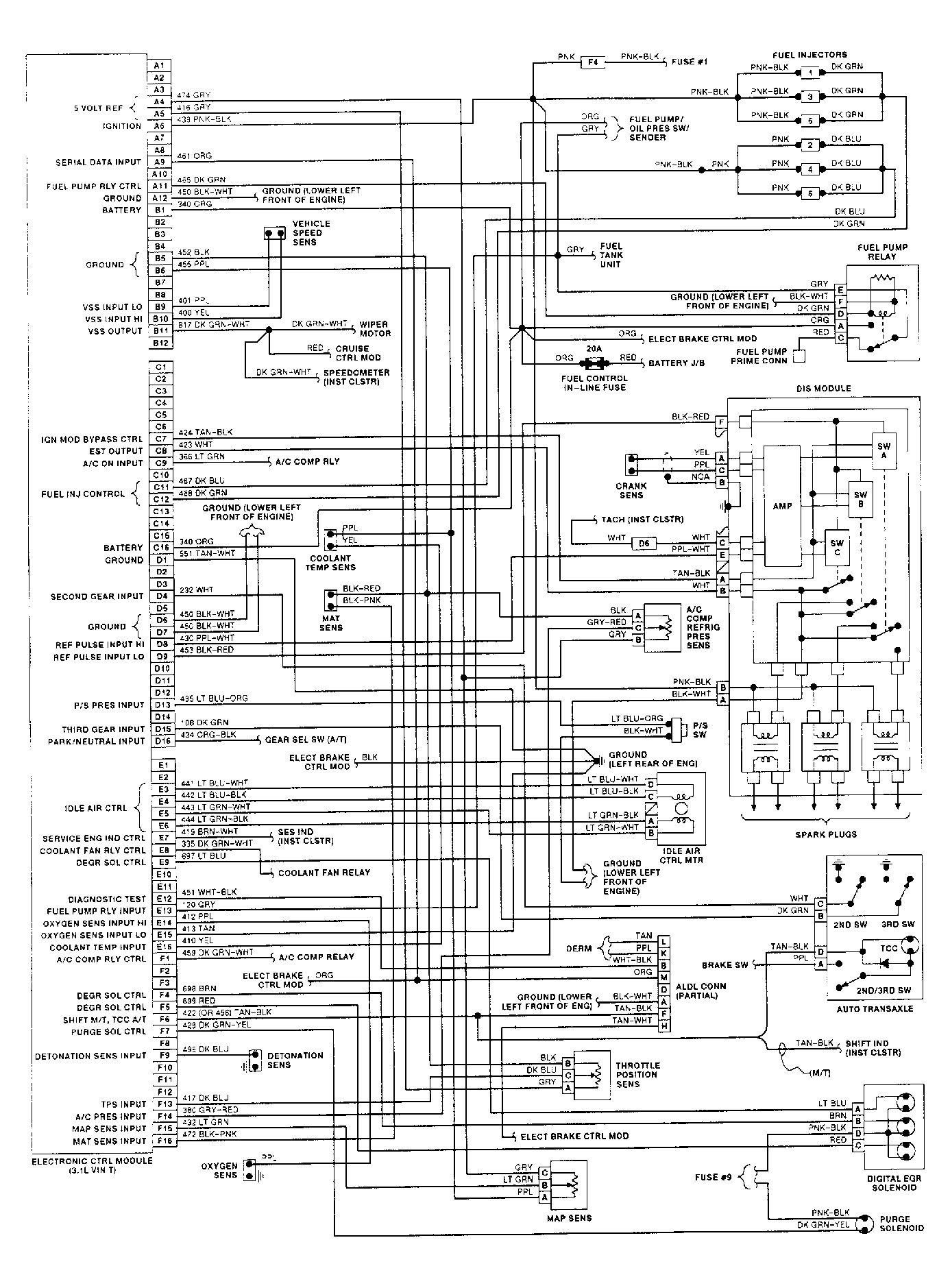

Fig 3: ECM Wiring Diagram, 3.1L VIN T

G92D05853
