Test B: Console Window Switch: Coupe

To perform this test, refer to illustration. See Fig 2 .

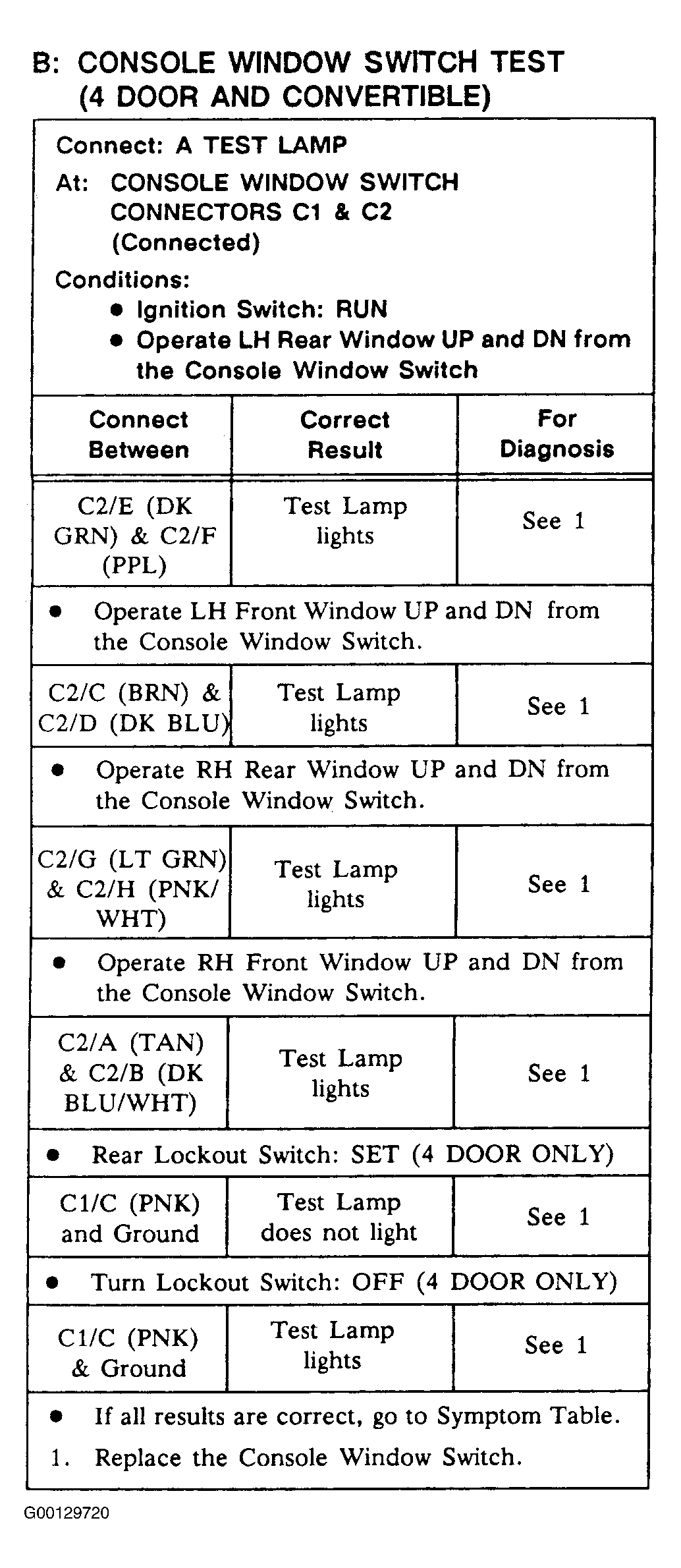

Fig 1: Test B: Console Switch Test (4-Door & Convertible)
G00129720Courtesy of GENERAL MOTORS CORP.

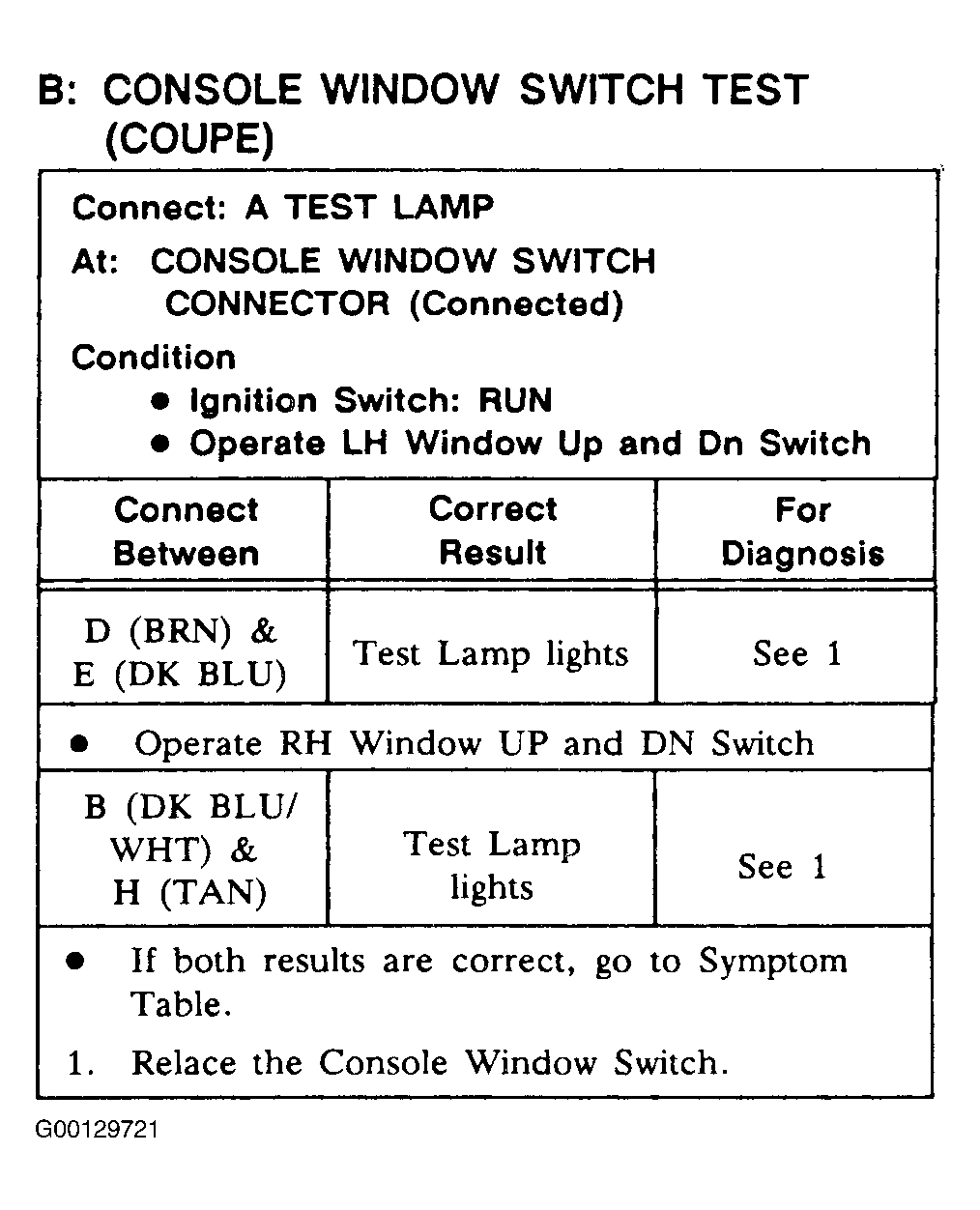

Fig 2: Test B: Console Switch Test (Coupe)
G00129721Courtesy of GENERAL MOTORS CORP.
