Steering Column: Adjustments: Notes

NOTE: For exploded view of steering column assembly, see Fig 1 and Fig 2 .

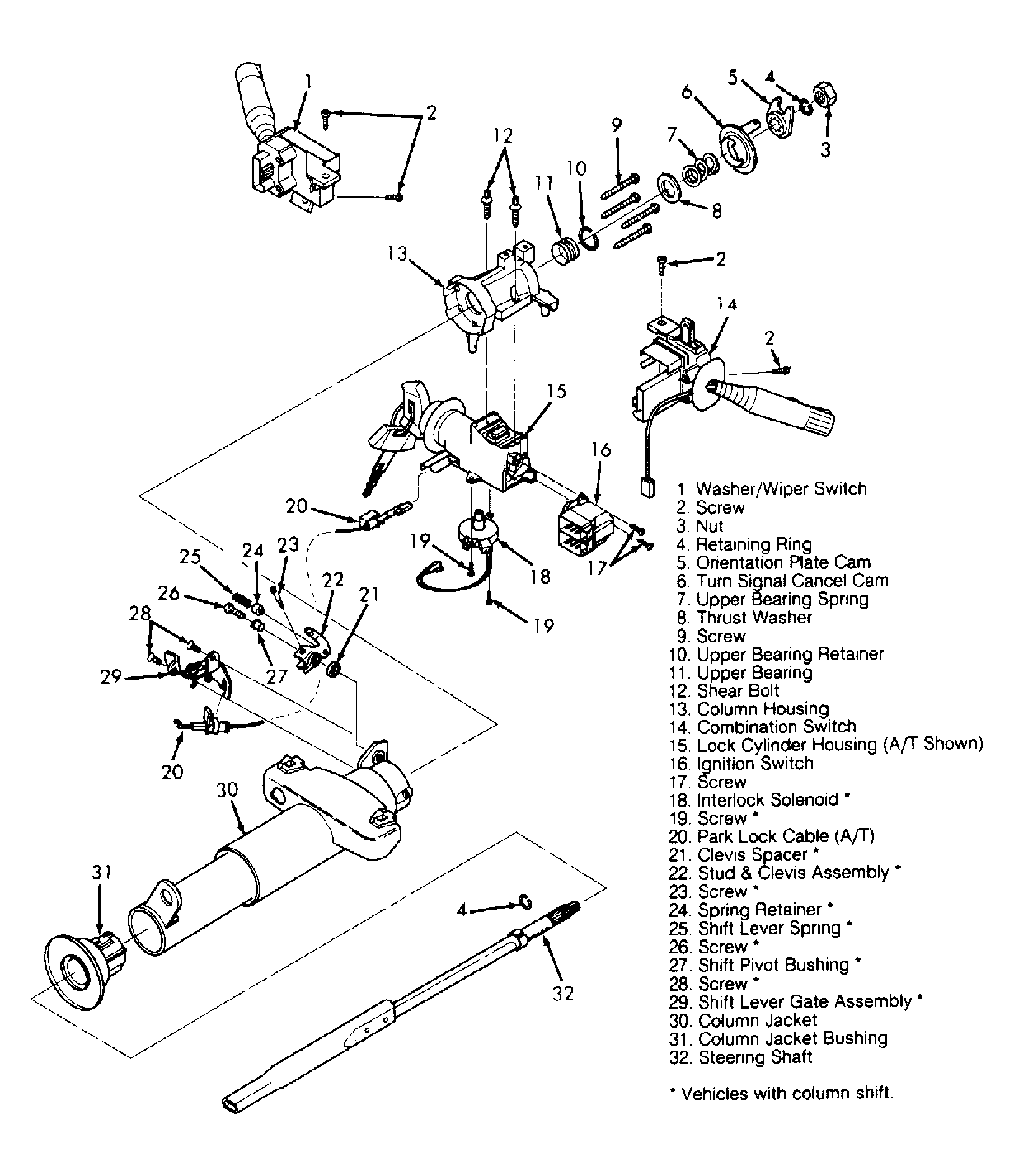

Fig 1: Exploded View of Fixed Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.

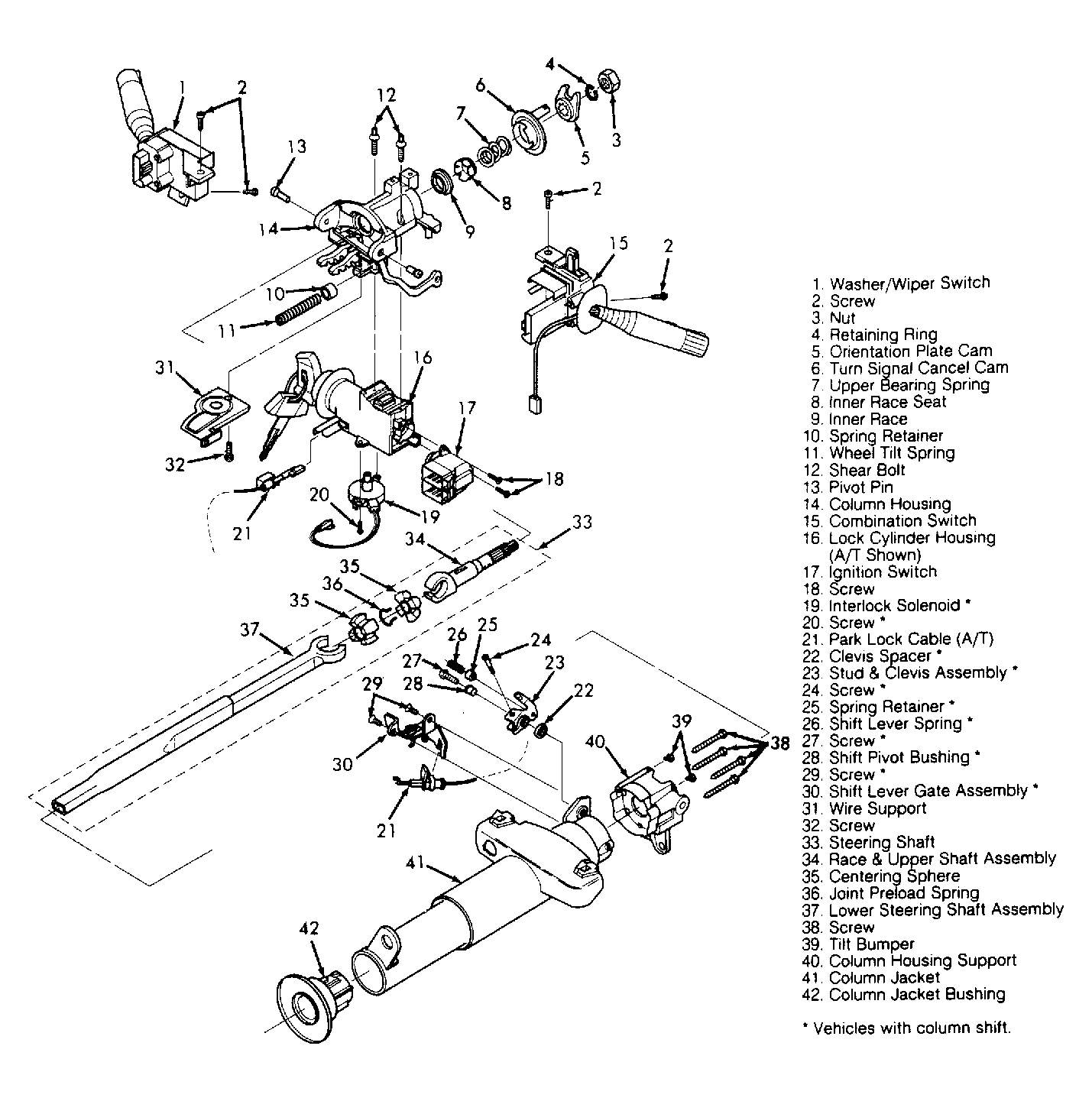

Fig 2: Exploded View of Tilt Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.
