Window Glass: Removal

  1. Remove door trim panel. See DOOR TRIM PANEL  .

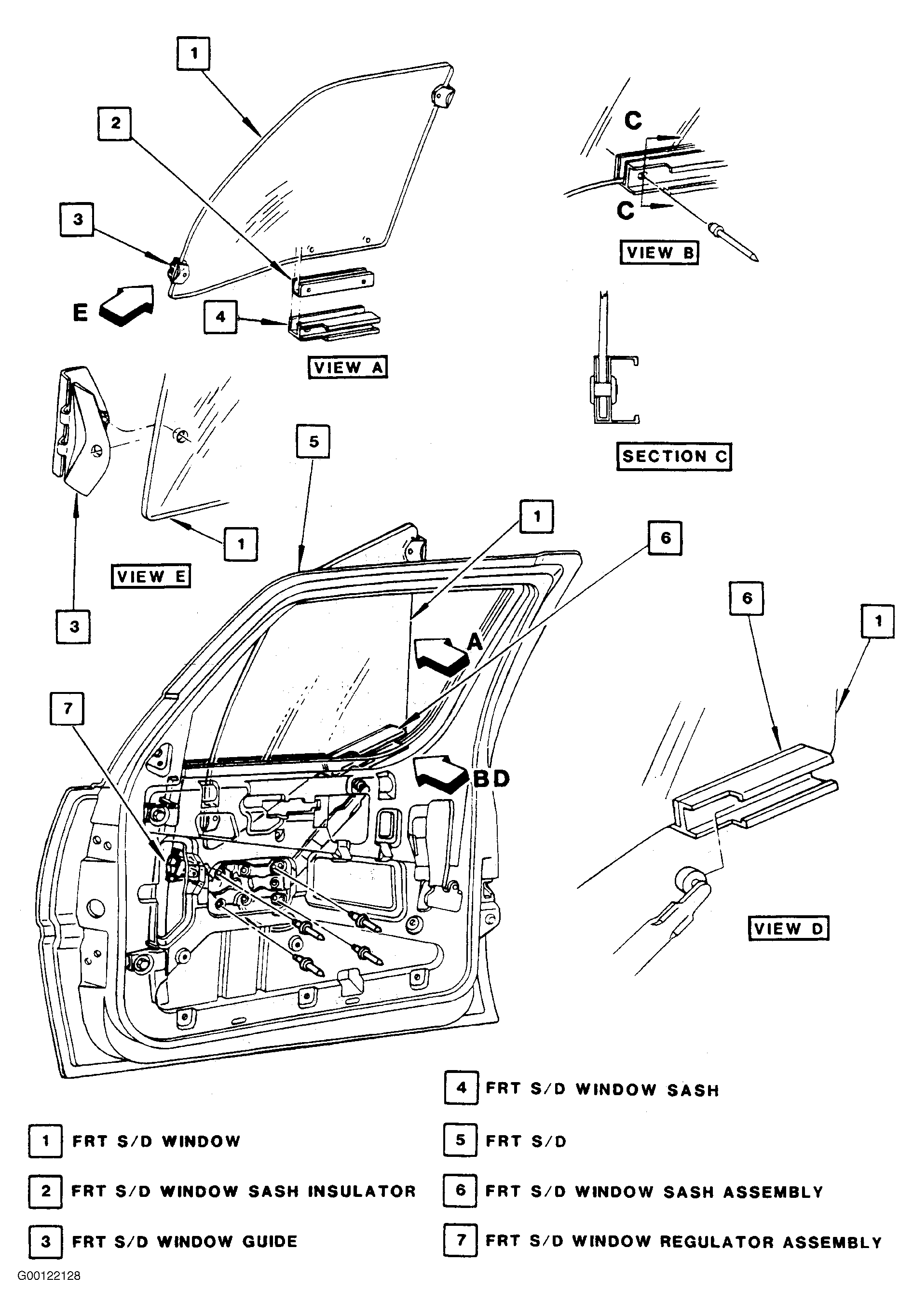

  2. Remove front and rear garnish moldings. See Figure .
  3. Remove lower run channel.
  4. Remove outer window sealing strip.
  5. Remove window run channel from door; drill out rivet. See Fig 1 .
  6. Remove drop window out of rear run channel.
  7. Pull window up and out of vehicle.

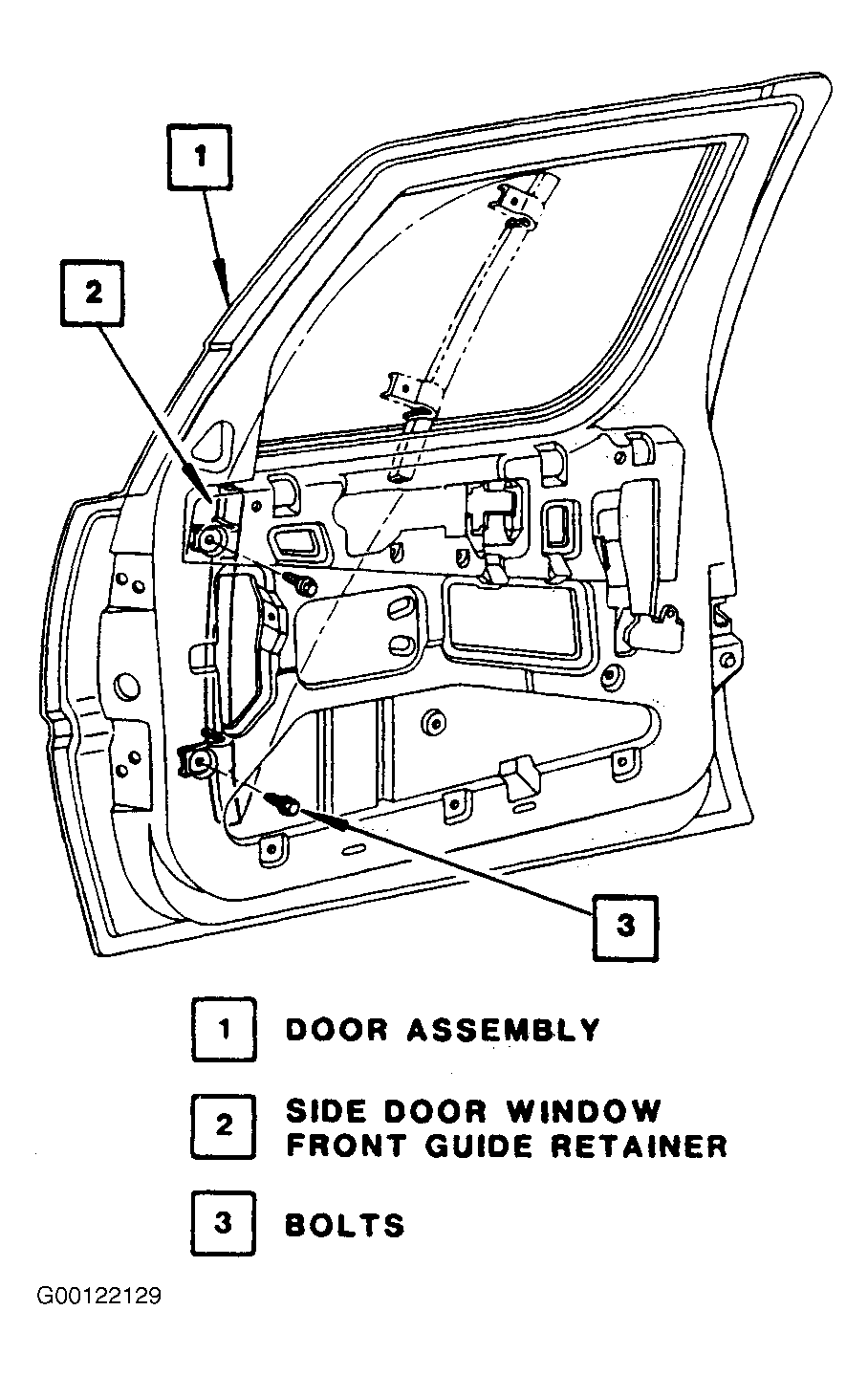

Fig 1: Removing Window Run Channel
G00122129Courtesy of GENERAL MOTORS CORP.
